56A34DT2750 - Cub Cadet XP Stand-On Spreader Sprayer Shut-Off Plate Assembly Parts Diagram

XP Stand-On Spreader Sprayer

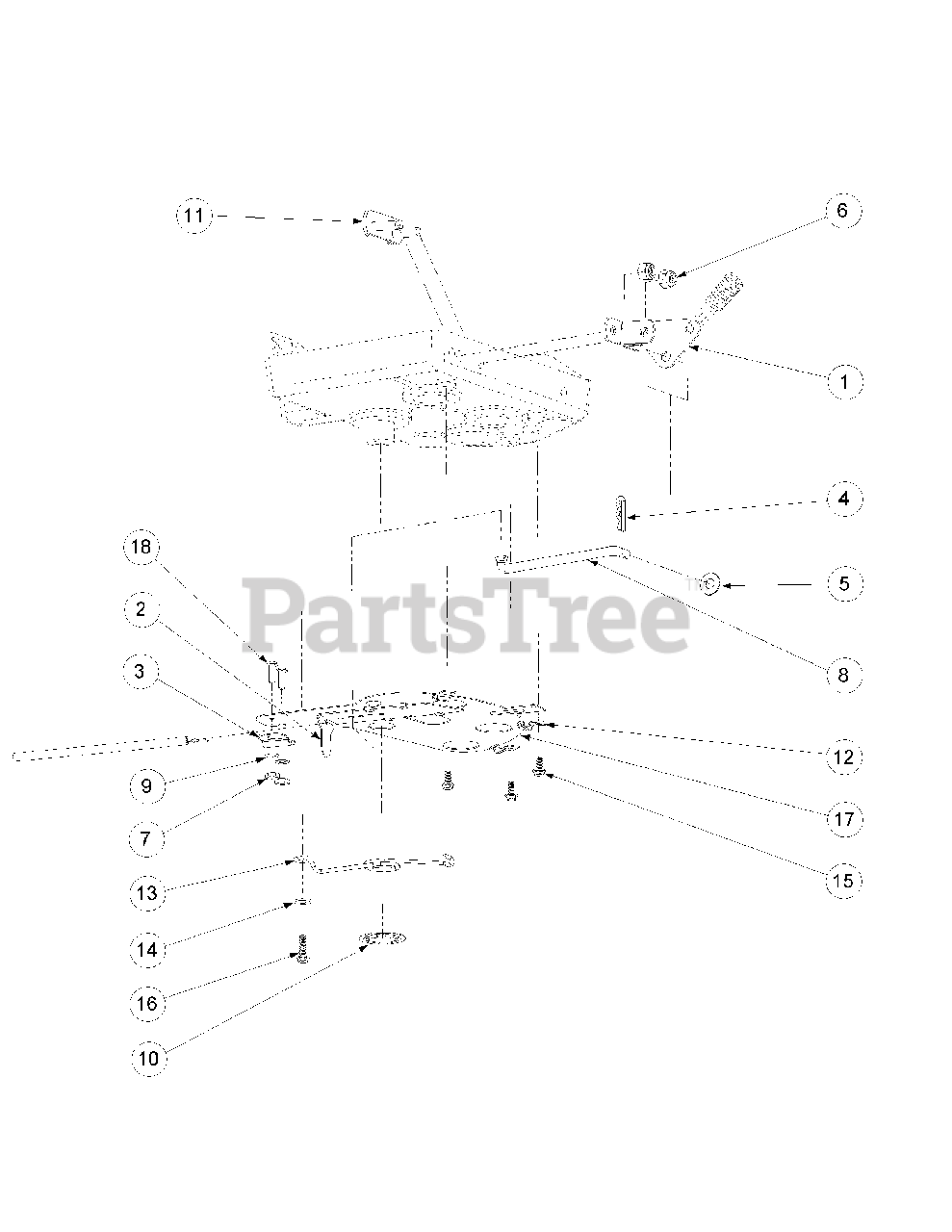

Shut-Off Plate Assembly Parts Diagram

  • Title

1

Cub Cadet 00017288

Pivot Lever ASsembly

$

$

Not available

2

Cub Cadet 00020492

Slide Lever
(Superseded to 703-10296)

$8.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 00020511

Remote Third Hole Wire Bracket

$12.99

$

In Stock, only 3 left!

0

4

Cub Cadet 02004552

Cotter Pin
(Superseded to 714-05019)

$6.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 00060033

Washer, 1/4, SS
(Superseded to 736-05152)

$7.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 712-0324

Nut, 1/4-20, SS

$3.99

$

In Stock, Qty 17

0

7

Cub Cadet 00060056

Nut, 8-32

$6.99

$

In Stock, only 1 left!

0

8

Cub Cadet 00060061

Pivot Lever Rod
(Superseded to 747-06600)

$27.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 00060083

Lock Washer

$3.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 01004186

Spring Clip
(Superseded to 726-05074)

$11.99

$

In Stock, only 1 left!

0

11

Cub Cadet 01004539

Pivot Assmebly Mounting Plate
(Superseded to 680-00405)

$35.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 01004955

Shut-Off Plate Clip
(Superseded to 726-05075)

$6.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 01004956

Shut-Off Plate Spring

$10.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 01005630

Washer, #8, SS
(Superseded to 736-05155)

$6.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 01005631

Screw, #8 x 3/8, SS
(Superseded to 710-06434)

$3.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 01005632

Screw, #8 x 5/8, SS
(Superseded to 710-06435)

$4.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 01006825

Shut-Off Plate
(Superseded to 703-10303)

$53.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 01009496

Hex Cap Screw, 8-32 x 1/2, SS

$

$

Not available
