56A34DT2750 - Cub Cadet XP Stand-On Spreader Sprayer Electrical Assembly Parts Diagram

XP Stand-On Spreader Sprayer

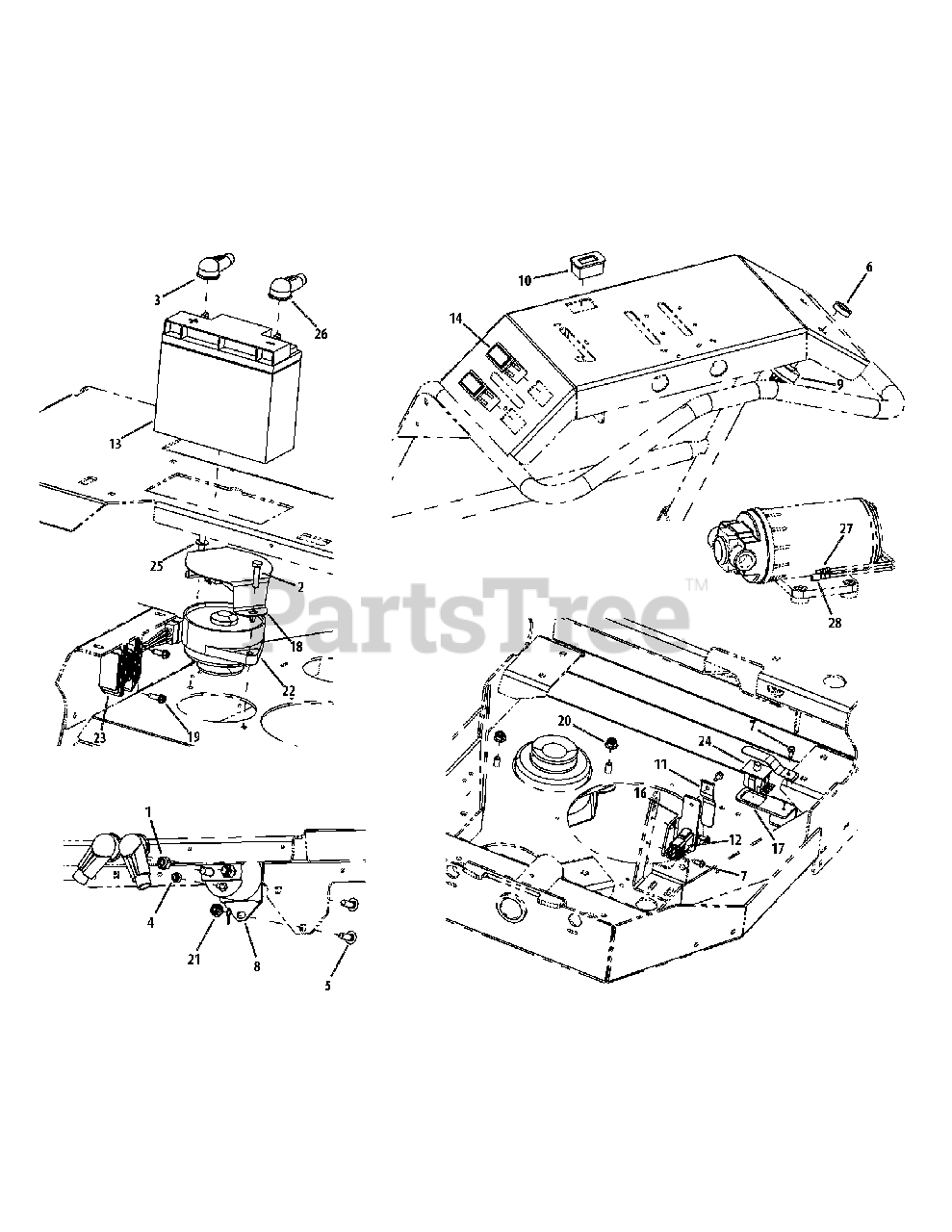

Electrical Assembly Parts Diagram

  • Title

1

Cub Cadet 00012165

Nut, 5/16-18

$4.99

$

In Stock, only 1 left!

0

2

Cub Cadet 00013116

HHCS, 5/16-18 x 1-1/4

$5.99

$

In Stock, only 1 left!

0

3

Cub Cadet 00013258

Boot, 1" OD Rubber Battery-PST, Red

$9.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 02002346

Boot, 1" OD Rubber Battery-PST, Red

$

$

Not available

4

Cub Cadet 00014608

Nut, Lock, Nylon Insert, #10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

5

Cub Cadet 00017584

Carriage Bolt, 1/4-20 x .75

$

$

Not available

6

Cub Cadet 00032097

Nut, W/Cap, 5/8-32 Ignition
(Superseded to 00032097P)

$

$

Not available

7

Cub Cadet 01001864

Self Tapping Screw, #10-24 x 0.500
(Superseded to 1767754)

$

$

Not available

8

Cub Cadet 925-3001

Solenoid Magnetic Switch

$58.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 01003581P

Switch, Ignition, 6 Pin includes:

$69.99

$

In Stock, Qty 7

0

9

Cub Cadet 725-1341B

Key

$10.99

$

In Stock, only 1 left!

0

10

Cub Cadet 925-05120A

Hour Meter w/ Clip

$95.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 732-04200

Retainer Spring

$10.99

$

In Stock, Qty 7

0

12

Cub Cadet 02000024P

Delta Switch, NO/NC
(Superseded to 925-3164A)

$40.99

$

In Stock, Qty 20+

0

13

Cub Cadet 02000279P

Battery, 12v

$242.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 02003772

Switch

$71.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 703-06919-0637

Bracket, Neutral

$31.99

$

In Stock, only 1 left!

0

17

Cub Cadet 703-06920-0637

Bracket, Park Brake

$

$

Not available

18

Cub Cadet 703-07176-0637

Alternator Cover

$

$

Not available

19

Cub Cadet 710-0642

Self Tapping Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 712-04063

Nut, 5/16-18, Nylon Flange Lock

$3.99

$

In Stock, only 4 left!

0

21

Cub Cadet 712-04064

Nut, 1/4-20, Nylon Flange Lock

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 925-04826

Alternator, 12V-20A

$

$

Not available

23

Cub Cadet 925-04827

Regulator, Electric, 20A
(Superseded to YA-119225-77721)

$305.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 725-04853

Switch

$22.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 936-0275

Washer, .344 x .688 x .065
(Superseded to 736-0275)

$

$

Not available

25

Cub Cadet 00012169

Washer, Flat

$4.49

$

In Stock, only 2 left!

0

26

Cub Cadet 735-04178

Boot, Rubber Battery, Black

$

$

Not available

27

Cub Cadet 00017469

Male Connector

$

$

Not available

28

Cub Cadet 00018126

Female Connector

$

$

Not available

Cub Cadet 929-04172

Harness Assembly

Note: Not shown

$155.99

$

Usually ships in 3-6 days

0
