56A34DT2750 - Cub Cadet XP Stand-On Spreader Sprayer Control Assembly Parts Diagram

XP Stand-On Spreader Sprayer

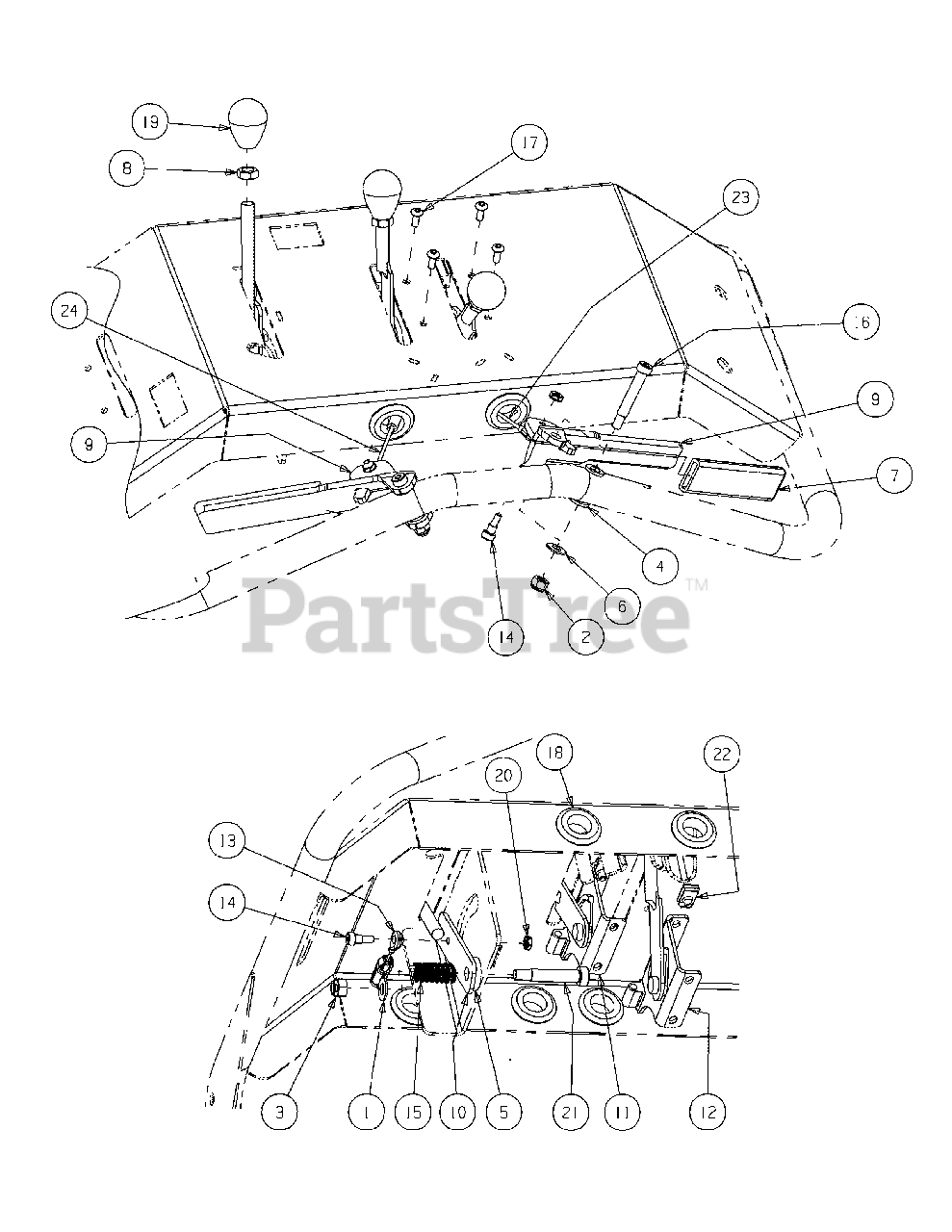

Control Assembly Parts Diagram

  • Title

1

Cub Cadet 00011075

Washer, 5/16

$4.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 00012152

Nut, 1/4-20

$4.49

$

In Stock, only 1 left!

0

3

Cub Cadet 00012165

Nut, 5/16-18

$4.99

$

In Stock, only 1 left!

0

4

Cub Cadet 00012169

Washer, 5/16

$4.49

$

In Stock, only 2 left!

0

5

Cub Cadet 00083192

Idler Washer
(Superseded to 736-0258)

$4.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 936-0463

Washer, 1/4 x .630 x .0515
(Superseded to 736-0463)

$4.49

$

In Stock, Qty 12

0

7

Cub Cadet 01001714

Grip

$11.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 01002511

Jam Nut, 3/8-16

$5.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 01007997-0637

Control Lever Weldment

$

$

Not available

10

Cub Cadet 01009483

On/Off Lever Weldment

$41.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 01009169P

3rd Hole Control

$54.99

$

In Stock, Qty 6

0

12

Cub Cadet 01009171

Remote Deflector Cable
(Superseded to 01009171P)

$76.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 01009251

On/Off Cable
(Superseded to 01009251P)

$74.99

$

In Stock, only 4 left!

0

14

Cub Cadet 01009322

Shoulder Bolt, 1/4 x 1/4

$

$

Not available

15

Cub Cadet 01009333

Compression Spring
(Superseded to 732-3065)

$3.99

$

In Stock, only 1 left!

0

16

Cub Cadet 01009361

Shoulder Bolt, 5/16 x 1.50

$

$

Not available

17

Cub Cadet 01009363

Hex Cap Screw, 10-24 x .50

$

$

Not available

18

Cub Cadet 01009365

Rubber Grommet

$3.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 01009369

On/Off Lever Knob

$14.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 01009377

Nut, 10-24, w/Star Washer

$5.99

$

In Stock, only 1 left!

0

21

Cub Cadet 01009459

Shoulder Bolt 3/8 x 1.50

$12.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 01009931

U-Nut, #10-16
(Superseded to 712-05009)

$

$

Not available

23

Cub Cadet 946-04566

Control Cable, 74.25

$69.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 946-04567

Control Cable, 94.25

$73.99

$

Usually ships in 3-6 days

0
