56A-437-195 - MTD Pro Spreader Optional Remote Deflector Parts Diagram

Pro Spreader

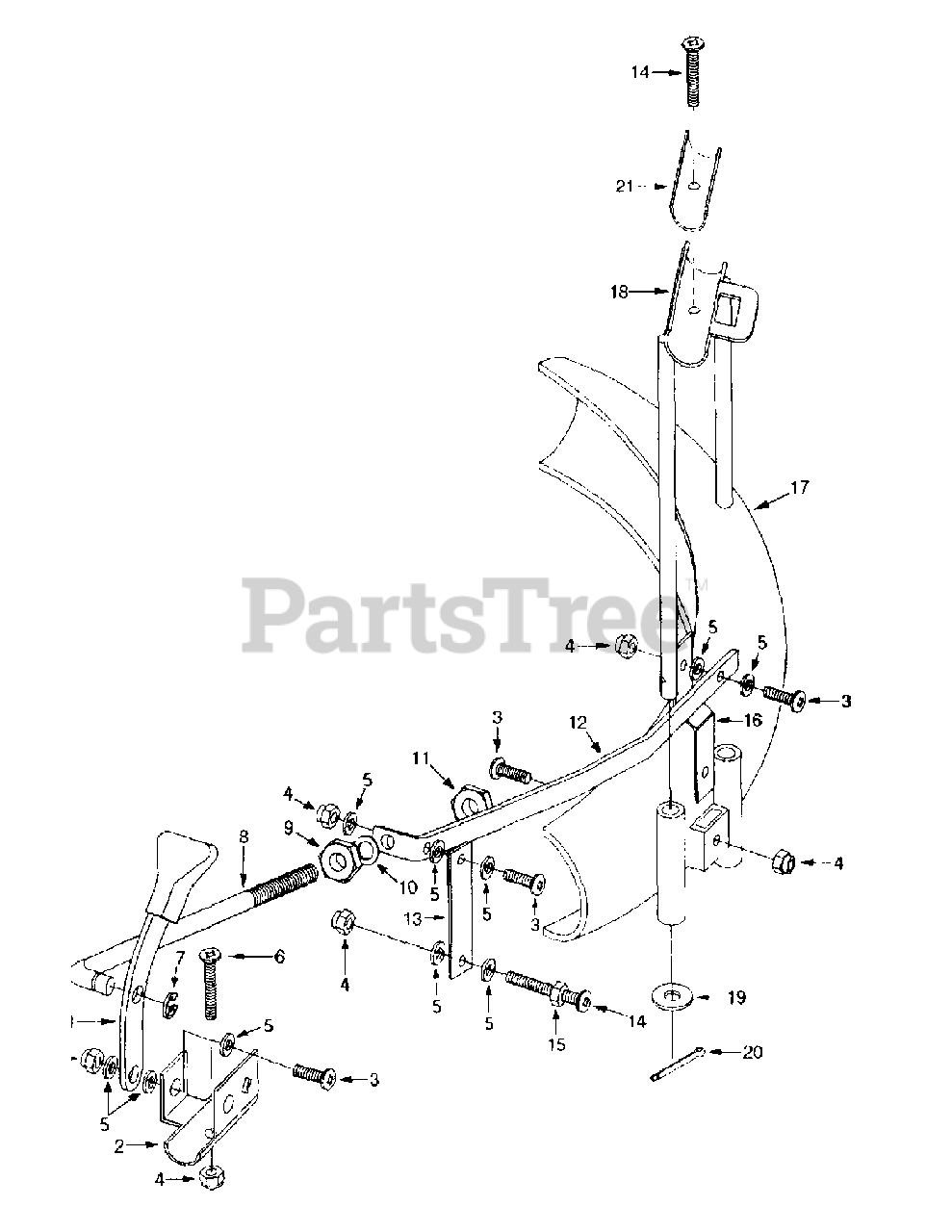

Optional Remote Deflector Parts Diagram

  • Title

MTD 01002278

Remote Deflector

$

$

Not available

1

MTD 00060034

Operating Lever and Rubber Handle
(Superseded to 680-00406)

$32.99

$

Usually ships in 3-6 days

0

2

MTD 00030417

Bracket, Dual Lever
(Superseded to 00030418)

Note: NLA

$46.99

$

Usually ships in 3-6 days

0

3

MTD 00060057

Machine Screw, 1/4-20 x 7/8 Pan Hd.

$5.49

$

Usually ships in 3-6 days

0

4

MTD 712-0324

Hex Nut, 1/4-20 Nylock

$3.99

$

In Stock, Qty 16

0

5

MTD 00018628

Flat Washer, 1/4 Nylon

$3.99

$

Usually ships in 3-6 days

0

6

MTD 00060047

Mach. Screw, 1/4-20 x 1-1/2 Pan Hd.

$4.99

$

Usually ships in 3-6 days

0

7

MTD 00010171

Retainer, "C" Clip
(Superseded to 726-05073)

$4.99

$

Usually ships in 3-6 days

0

8

MTD 00035042

Threaded Rod, Deflector

Note: NLA

$

$

Not available

9

MTD 00060071

Hex Nut. 5/16-18
(Superseded to 712-05158)

$4.49

$

In Stock, only 4 left!

0

10

MTD 00060073

Lock Washer. 5/16

$

$

Not available

11

MTD 912-0429

Hex Nut, 5/16-18 Nylock
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

12

MTD 00035041

Deflector Arm

Note: NLA

$

$

Not available

13

MTD 00035027

Flat Plate, Deflector

Note: NLA

$

$

Not available

14

MTD 00060029

Machine Screw, 1/4-20 x 2 Pan Hd.

$4.99

$

Usually ships in 3-6 days

0

15

MTD 00060059

Hex Nut.1/4-20

$3.49

$

Usually ships in 3-6 days

0

16

MTD 00035030

Offset Bracket

$28.99

$

Usually ships in 3-6 days

0

17

MTD 00061066

Deflector Tube

$20.99

$

In Stock, only 1 left!

0

18

MTD 00061065

Deflector Bracket

$89.99

$

Usually ships in 3-6 days

0

19

MTD 00061053

Flat Washer, 3/8

$3.99

$

Usually ships in 3-6 days

0

20

MTD 00061052

Cotter Pin, 1/8 x 1

$4.49

$

In Stock, only 1 left!

0

21

MTD 00035851

Rubber Pad

Note: NLA

$

$

Currently unavailable
