56575 - Toro 25" Whirlwind Rear-Engine Riding Mower, Electric (SN: 002000001 - 002999999) (1972) STARTER ASSEMBLY (FOR ENGINE 130905-0368) Parts Diagram

25" Whirlwind Rear-Engine Riding Mower, Electric

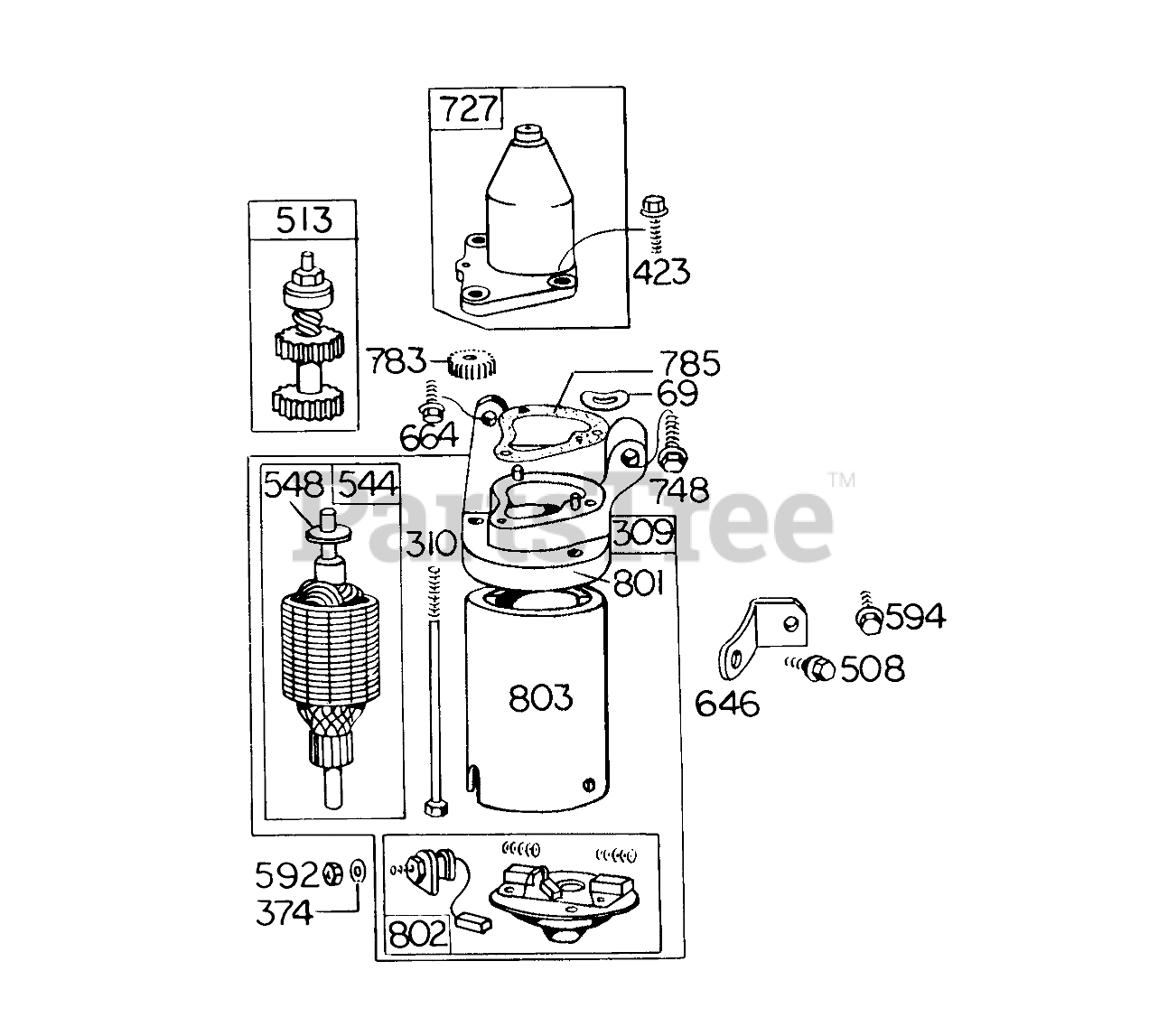

STARTER ASSEMBLY (FOR ENGINE 130905-0368) Parts Diagram

  • Title

69

Briggs & Stratton 93676

Washer-Spring

$4.49

$

Usually ships in 2-12 days

0

309

Briggs & Stratton 390232

Motor-Starting

$104.99

$

Usually ships in 2-12 days

0

310

Briggs & Stratton 93648

Bolt-Starter Motor

$

$

Not available

374

Briggs & Stratton 92813

Washer-Lock

$3.49

$

Usually ships in 2-12 days

0

423

Briggs & Stratton 93654

Screw-Sem

$3.49

$

Usually ships in 2-12 days

0

508

Toro 93636

Screw-Sem

$

$

Currently unavailable

513

Briggs & Stratton 390581

Drive Assy.-Starter

$

$

Not available

544

Briggs & Stratton 390467

Armature-Starter

$50.99

$

Usually ships in 2-12 days

0

548

Briggs & Stratton 93649

Washer-Armature

$10.99

$

Usually ships in 2-12 days

0

592

Briggs & Stratton 90356

Nut
(Superseded to 690276)

$3.99

$

Usually ships in 2-12 days

0

594

Briggs & Stratton 93559

Screw
(Superseded to 690810)

$3.49

$

In Stock, only 3 left!

0

646

Briggs & Stratton 222162

Bracket-Starter Motor

$4.49

$

Usually ships in 2-12 days

0

664

Briggs & Stratton 93415

Screw
(Superseded to 691681)

$8.49

$

In Stock, only 1 left!

0

727

Briggs & Stratton 390317

Housing-Drive

$30.99

$

Usually ships in 2-12 days

0

748

Briggs & Stratton 93534

Screw-Sem
(Superseded to 691103)

$3.99

$

In Stock, only 4 left!

0

783

Briggs & Stratton 230972

Hydraulic MetaI Line-Arm

$6.99

$

Usually ships in 2-12 days

0

785

Briggs & Stratton 270677

Gasket-Starter Drive Housing

$1.49

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 390318

End Head-Starter

$34.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 390465

Cap Assy.-Commutator End

$

$

Not available

803

Briggs & Stratton 390468

Housing Assy.-Starter

$

$

Not available
