56525 - Toro 25" Whirlwind Rear-Engine Riding Mower (SN: 002000001 - 002999999) (1972) TRANSMISSION ASSEMBLY Parts Diagram

25" Whirlwind Rear-Engine Riding Mower

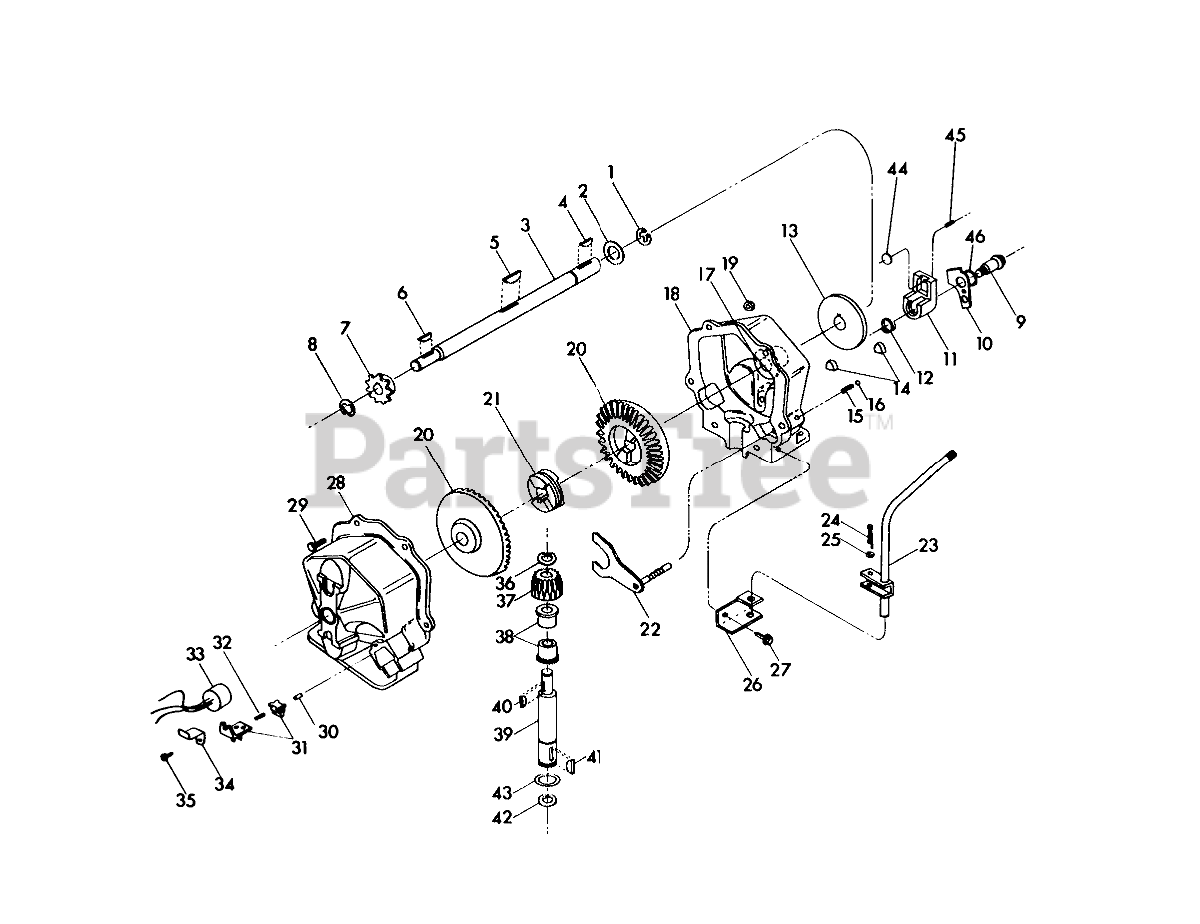

TRANSMISSION ASSEMBLY Parts Diagram

  • Title

1

Toro 2119-550

RETAINING RING

$

$

Not available

2

Toro 2119457

Washer, Plain

$

$

Currently unavailable

3

Toro 2119-552

Output Shaft

$

$

Not available

4

Toro 2119481

Woodruff Key

$

$

Currently unavailable

5

Toro 2119-373

Hi Pro Key

$

$

Currently unavailable

6

Toro 2119-555

Key, Woodruff
(Superseded to 3257-27)

$

$

Not available

7

Toro 2119-556

Sprocket

$

$

Not available

8

Toro 2119-557

RETAINING RING

$

$

Not available

9

Toro 2119-558

Shoulder Bolt

$

$

Not available

10

Toro 2119-559

Actuating Lever

$

$

Not available

11

Toro 2119-560

Jaw, Brake

$

$

Currently unavailable

12

Toro 2119-564

Compression Spring

$

$

Not available

13

Toro 2119-562

BRAKE DISC

$

$

Not available

14

Toro 2119-563

FRICTION PUCK

$

$

Not available

15

Toro 2119-130

Spring, Detent

$

$

Currently unavailable

16

Toro 2119-565

Ball Detent

$

$

Not available

17

Toro 2119-566

Bearing Flange

$

$

Not available

18

Toro 2119-567

Housing

$

$

Currently unavailable

19

Toro 2119-568

Locknut

$

$

Currently unavailable

20

Toro 2119-122

Bevel Gear

$

$

Not available

21

Toro 2119-570

CLUTCH COLLAR

$190.99

$

Usually ships in 3-6 days

0

22

Toro 2119-571

Shaft, Detent

$

$

Currently unavailable

23

Toro 2119-572

Shift Lever

$

$

Currently unavailable

24

Toro 2119-573

Cotter Pin

$

$

Currently unavailable

25

Toro 2119-574

Plain Washer

$

$

Currently unavailable

26

Toro 2119-575

Shift Lever Bracket

$

$

Not available

27

Toro 2119-576

Hex Head Bolt

$

$

Not available

28

Toro 2119-577

Housing

$

$

Currently unavailable

29

Toro 2119-578

Bolt Hex Head

$

$

Currently unavailable

30

Toro 2119-579

Pin, Actuating

$

$

Not available

31

Toro 2119-580

Board Terminal & Carrier Contact Set

$

$

Not available

32

Toro 2119-581

Spring, Compression

$

$

Not available

33

Toro 2119-553

Module, Control

$

$

Not available

34

Toro 2119-583

Retainer, Module, Control

$

$

Currently unavailable

35

Toro 2119-584

Self Tapping Screw

$

$

Currently unavailable

36

Toro 2119-585

Ring, Retaining

$

$

Currently unavailable

37

Toro 2119473

Pinion, Bevel

$

$

Currently unavailable

38

Toro 2119458

Bearing, Flange

$

$

Currently unavailable

39

Toro 2119-551

Shaft, Input

$

$

Currently unavailable

40

Toro 2119-569

Key, Woodruff

$

$

Currently unavailable

41

Toro 2119-561

Key, Woodruff
(Superseded to 3257-5)

$5.99

$

In Stock, only 1 left!

0

42

Toro 2119-554

Retaining Ring

$

$

Not available

43

Toro 2119-586

Washer, Plain

$

$

Currently unavailable

44

Toro 2119-587

Spacer

$

$

Currently unavailable

45

Toro 2119-588

Set Screw

$

$

Not available

46

Toro 2119-589

Washer Kit

$

$

Not available
