56525 - Toro 25" Whirlwind Rear-Engine Riding Mower (SN: 002000001 - 002999999) (1972) FRAME ASSEMBLY (ELECTRIC) Parts Diagram

25" Whirlwind Rear-Engine Riding Mower

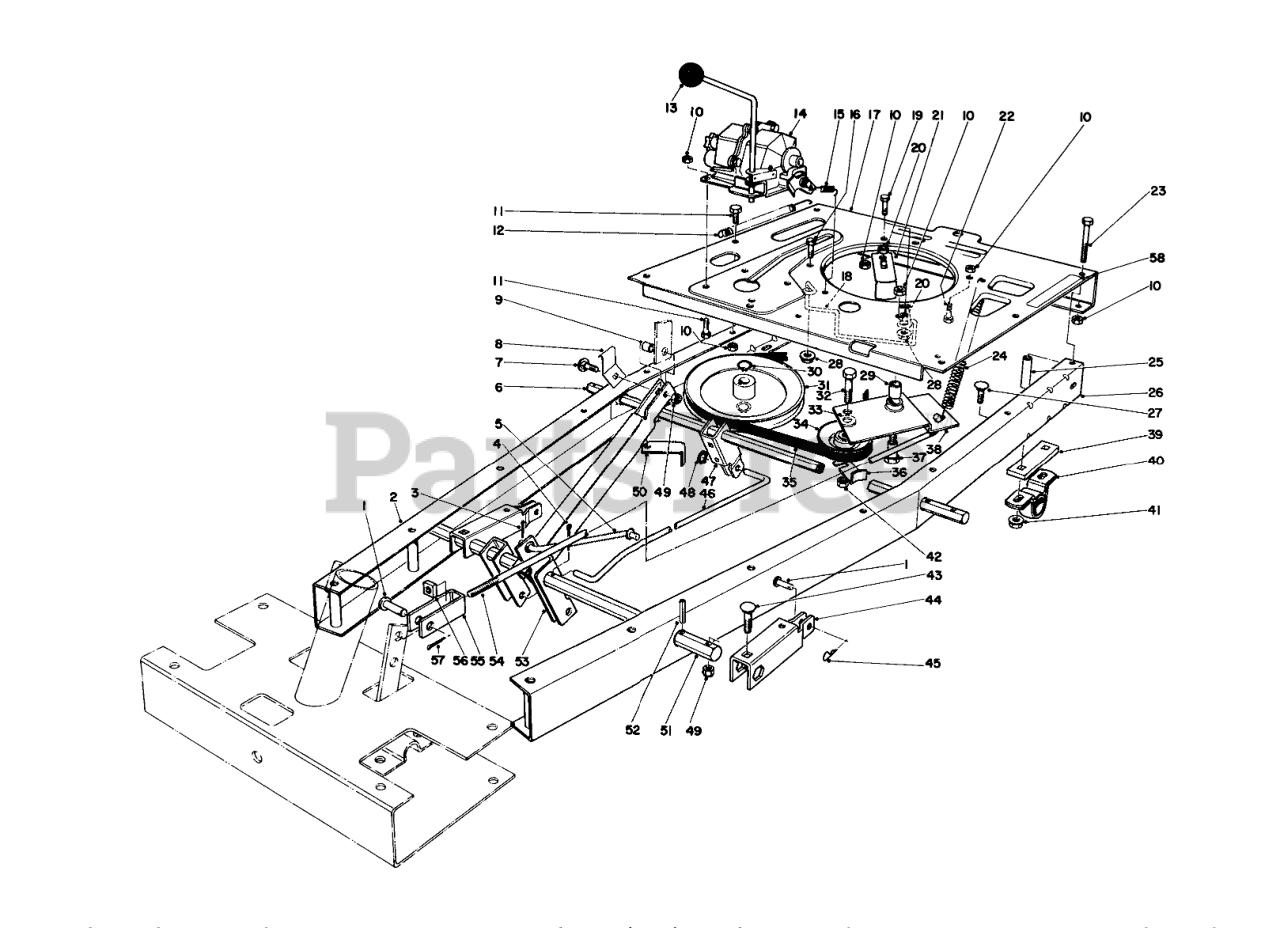

FRAME ASSEMBLY (ELECTRIC) Parts Diagram

  • Title
1

Toro 283-30

PIN-CLEVIS

$0.99

$

Usually ships in 3-6 days

0

2

Toro 12-6000

Frame Channel R.H.

$

$

Currently unavailable

3

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

4

Toro 3272-16

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

5

Toro 12-8830

Deck Engagement Rod

$

$

Currently unavailable

6

Toro 12-5690

Hex Shaft-Rear Lift

$

$

Not available

7

Toro 3229-2

SCREW-CARR

$3.49

$

Usually ships in 3-6 days

0

8

Toro 12-7530

Flat Spring

$

$

Not available

9

Toro 17-0170

Spacer

$

$

Currently unavailable

11

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

12

Toro 12-5840

Spring Tension Brake

$

$

Not available

13

Toro 233-22

KNOB-CONTROL

$25.99

$

Usually ships in 3-6 days

0

14

Toro 17-1720

Transmission

$

$

Not available

15

Toro 12-8800

Spring Tension Brake Return

$

$

Not available

16

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 12-6060

Plate-Engine Mounting

$

$

Currently unavailable

18

Toro 12-5850

Belt Guide

$

$

Currently unavailable

19

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

20

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

21

Toro 17-2240

Belt Retainer

$

$

Not available

22

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

23

Toro 322-14

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

24

Toro 12-8810

SPRING-EXTENSION

$28.99

$

Usually ships in 3-6 days

0

25

Toro 12-5960

Spacer-Split Tube

$

$

Currently unavailable

26

Toro 12-5990

Channel Frame L.H.

$

$

Currently unavailable

27

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 14

0

28

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

29

Toro 256-172

BUSHING

$6.49

$

Usually ships in 3-6 days

0

30

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, only 2 left!

0

31

Toro 12-5780

Pulley

$

$

Currently unavailable

32

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

33

Toro 5-0737

Washer

$

$

Not available

34

Toro 12-5820

PULLEY-IDLER

$29.99

$

In Stock, Qty 6

0

35

Toro 12-6220

TRACT DRIVE V-BELT

$162.99

$

Usually ships in 3-6 days

0

36

Toro 12-9020

RETAINER-BELT

$

$

Not available

37

Toro 12-5830

CLUTCH PIVOT BOLT

$

$

Not available

38

Toro 12-5770

Tractor Idler Assembly (Incl. Ref. #29)

$

$

Currently unavailable

39

Toro 12-9710

Spacer Pillow Block

$

$

Not available

40

Toro 12-3340

PILLOW BLOCK

$

$

Not available

41

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

42

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

43

Toro 3229-3

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

44

Toro 12-5800

Deck Lift Arm

$

$

Not available

45

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

46

Toro 12-6090

Lift Transfer Rod

$

$

Currently unavailable

47

Toro 12-5650

Lift Arm Transfer

$

$

Currently unavailable

48

Toro 32120-94

Grip Ring

$

$

Currently unavailable

49

$

$

Currently unavailable

50

Toro 17-2230

TRANS BELT RET B

$

$

Not available

51

Toro 17-1070

Front Lift

$

$

Currently unavailable

52

Toro 32121-16

PIN-SPRING

$0.99

$

In Stock, Qty 8

0

53

Toro 12-8910

Arm Lever

$

$

Not available

54

Toro 12-5870

Rod Clutch

$

$

Not available

55

Toro 12-5920

Clevis Brake

$

$

Currently unavailable

56

Toro 32107-11

NUT-SQUARE

$

$

Not available

57

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

58

Toro 12-8960

Caution Decal

$

$

Currently unavailable

3

Toro 32724

Cotter Pin

$

$

Currently unavailable

10

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

16

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

18

Toro 174900

Belt Guide

$

$

Currently unavailable

19

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

20

Toro 17-2240

Belt Retainer

$

$

Not available

21

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 17-2370

Spacer

$

$

Currently unavailable
