56525 - Toro 25" Whirlwind Rear-Engine Riding Mower (SN: 002000001 - 002999999) (1972) BODY AND SEAT ASSEMBLY Parts Diagram

25" Whirlwind Rear-Engine Riding Mower

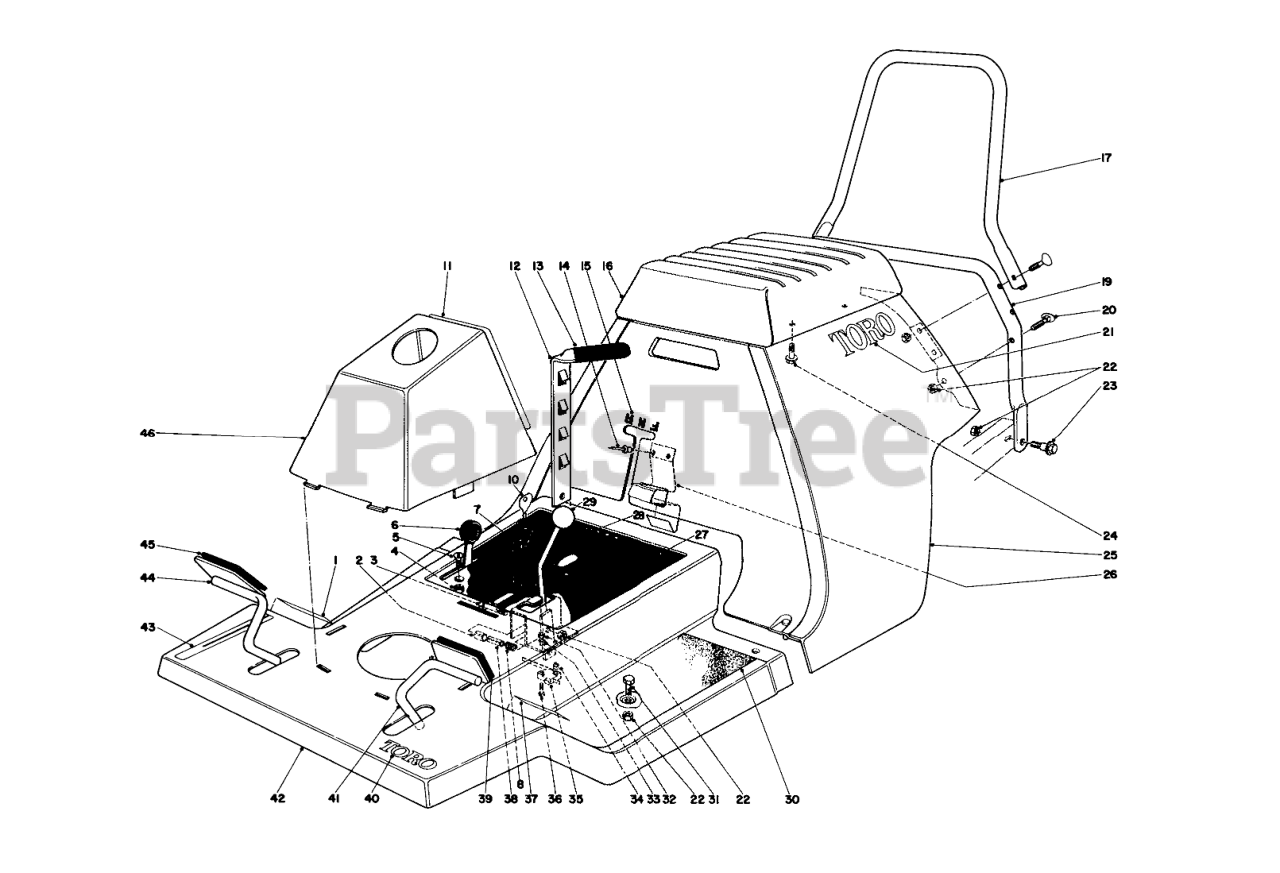

BODY AND SEAT ASSEMBLY Parts Diagram

  • Title
1

Toro 12-9150

Decal-Brake Pedal

$

$

Currently unavailable

2

Toro 17-6530

Spacer

$

$

Not available

3

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

4

Toro 32153-1

NUT-LOCK, SIDE

$3.99

$

In Stock, only 1 left!

0

5

Toro 32108-96

10-24X 1/2 PHILLIPS SCR

$

$

Currently unavailable

6

Toro 17-1770

Throttle Control

$

$

Currently unavailable

7

Toro 12-2810

Switch

$

$

Not available

Toro 12-2820

STARTER SWITCH

Note: Not illustrated

$

$

Not available

8

Toro 17-6520

Spring

$

$

Currently unavailable

10

Toro 218-412

Key
(Superseded to 62-7770)

$4.99

$

In Stock, only 1 left!

0

11

Toro 12-9130

Decal

$

$

Currently unavailable

12

Toro 12-6160

Lift-Vertical

$

$

Currently unavailable

13

Toro 12-6920

Grip Handle

$

$

Currently unavailable

14

Toro 3290-54

RIVET-BLIND

$0.99

$

In Stock, only 2 left!

0

15

Toro 12-9110

Decal Shift Pattern

$

$

Currently unavailable

16

$

$

Not available

17

Toro 12-6040

Handle-Upper

$

$

Currently unavailable

19

Toro 12-6030

Handle Lower

$

$

Not available

20

Toro 6-6330

HANDLE SCREW

$

$

Not available

21

Toro 12-9100

Decal
(Superseded to 20-4690)

$7.99

$

Usually ships in 3-6 days

0

22

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

23

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

24

Toro 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

0

25

Toro 12-8290

Rear Body

$

$

Currently unavailable

26

Toro 12-8780

Spring Latch

$

$

Currently unavailable

27

Toro 12-9120

Decal-Control Panel (Model 56525)

$

$

Currently unavailable

Toro 17-1680

Decal-Control Panel (Model 56575)

Note: Not illustrated

$

$

Currently unavailable

28

Toro 12-9000

Deck Engagement Lever

$

$

Not available

29

Toro 233-22

KNOB-CONTROL

$25.99

$

Usually ships in 3-6 days

0

30

Toro 12-8280

Hour Meter

$

$

Currently unavailable

Toro 12-8270

Foot Tread, R.H.

Note: Not illustrated

$

$

Currently unavailable

31

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

32

Toro 3296-52

NUT-LOCK, NI

$6.99

$

Usually ships in 3-6 days

0

33

Toro 5-1254

WASHER

$

$

Not available

34

Toro 12-3330

Spacer

$

$

Currently unavailable

35

Toro 12-9080

MICRO SWITCH

$

$

Not available

36

Toro 3290-329

SCREW-PPH

$

$

Not available

37

Toro 12-9160

Decal Clutch Pedal

$

$

Currently unavailable

38

Toro 12-8950

Spacer Split

$

$

Currently unavailable

39

Toro 12-8660

Foot Pad Clutch

$

$

Currently unavailable

40

Toro 12-9140

DECAL

$

$

Currently unavailable

41

Toro 12-8690

Clutch Pedal

$

$

Currently unavailable

42

Toro 12-6940

Body Front

$

$

Currently unavailable

43

Toro 12-8790

Decal

$

$

Currently unavailable

44

Toro 12-8680

Brake Pedal

$

$

Currently unavailable

45

Toro 12-8650

Foot Pad Brake

$

$

Currently unavailable

46

Toro 12-6269

Tower

$

$

Not available
