56525 - Toro 25" Whirlwind Rear-Engine Riding Mower (SN: 002000001 - 002999999) (1972) 25" MOWER ASSEMBLY Parts Diagram

25" Whirlwind Rear-Engine Riding Mower

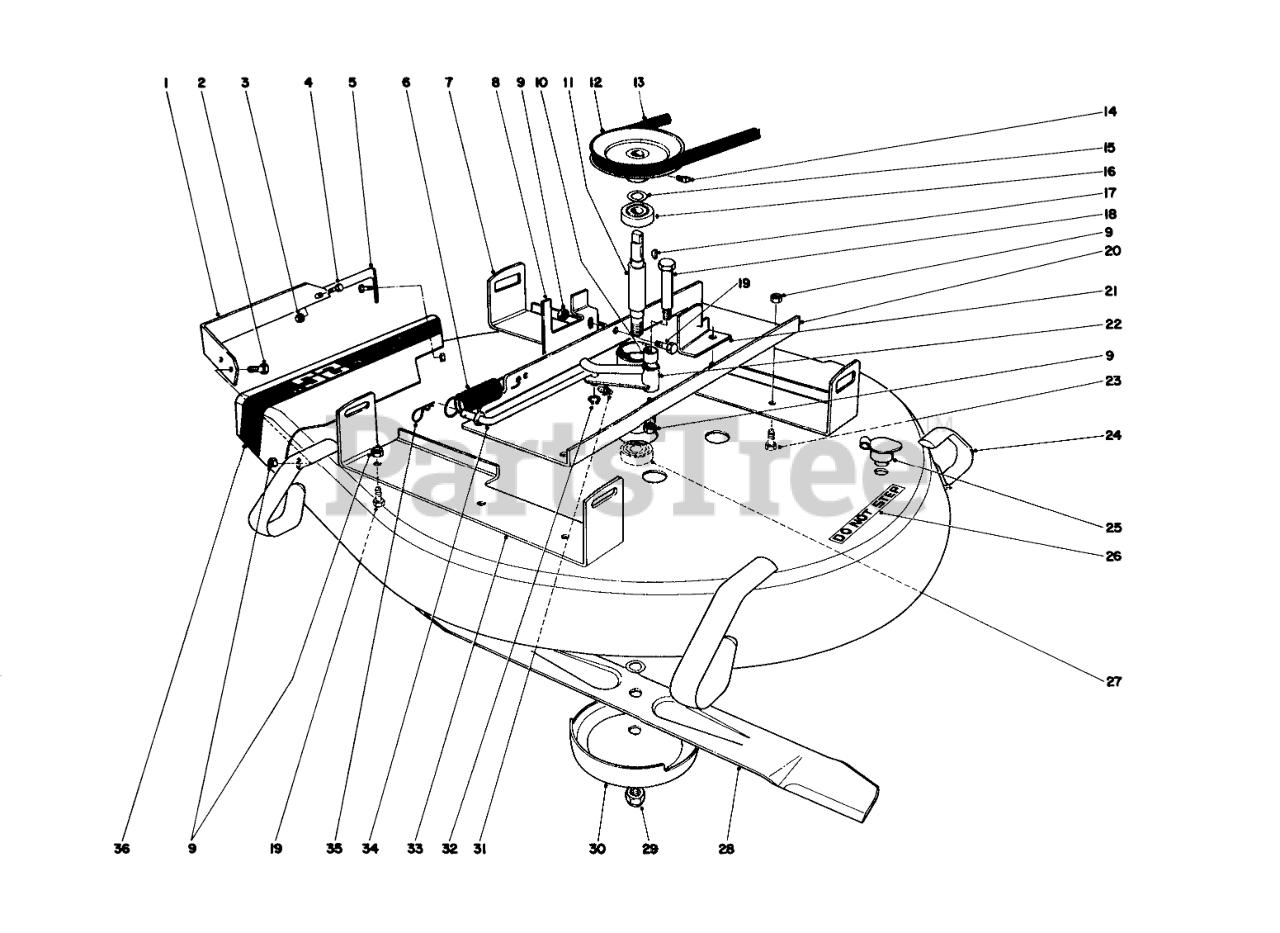

25" MOWER ASSEMBLY Parts Diagram

  • Title
1

Toro 12-6010

Deflector Bar

$

$

Currently unavailable

2

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

3

Toro 32153-1

NUT-LOCK, SIDE

$3.99

$

In Stock, only 1 left!

0

4

Toro 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

5

Toro 17-0950

Brace Deflector Bar

$

$

Currently unavailable

6

Toro 11-1620

Spring

$

$

Not available

7

Toro 17-1050

Hanger-Rear Deck

$

$

Currently unavailable

8

Toro 17-2430

Belt Retainer

$

$

Currently unavailable

9

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

10

Toro 256-172

BUSHING

$6.49

$

Usually ships in 3-6 days

0

11

Toro 12-5730

BLADE SPINDLE

$

$

Not available

12

Toro 12-5670

Pulley

$

$

Not available

13

Toro 12-8260

DECK DRIVE V-BELT

$

$

Not available

14

Toro 3242-2

SCREW-SQH

$1.99

$

In Stock, only 3 left!

0

15

Toro 7-3590

WASHER

$2.99

$

In Stock, only 1 left!

0

16

Toro 251-5

Bearing
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 18

0

17

Toro 3257-5

KEY-WOODRUFF

$5.99

$

Usually ships in 3-6 days

0

18

Toro 12-8900

BOLT-SHOULDER, HH

$

$

Not available

19

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

20

Toro 12-6140

Bearing Housing

$

$

Not available

21

Toro 17-2440

Belt Retainer

$

$

Currently unavailable

22

Toro 12-8850

Bracket Arm (Incl. Ref. #10)

$

$

Currently unavailable

23

Toro 3224

Screw

$

$

Currently unavailable

24

Toro 12-7720

Mower Housing

$

$

Currently unavailable

25

Toro 6-4500

WASHOUT PLUG

$

$

Not available

26

Toro 12-9260

Decal

$

$

Not available

27

Toro 251-123

.6693 RP BALL BEARING

$

$

Not available

28

Toro 12-2930

Blade
(Superseded to 12-2930-03)

$

$

Not available

29

Toro 32152-6

NUT-LOCK, CONE

$9.49

$

Usually ships in 3-6 days

0

30

Toro 7-3522

Cup
(Superseded to 92-6313)

$53.99

$

In Stock, only 1 left!

0

31

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

32

Toro 32151-3

RING-GRIP

$6.99

$

In Stock, only 3 left!

0

33

Toro 17-1040

Hanger-Front Deck

$

$

Currently unavailable

34

$

$

Currently unavailable

35

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

36

Toro 12-9190

Chute Deflector Decal

$

$

Not available
