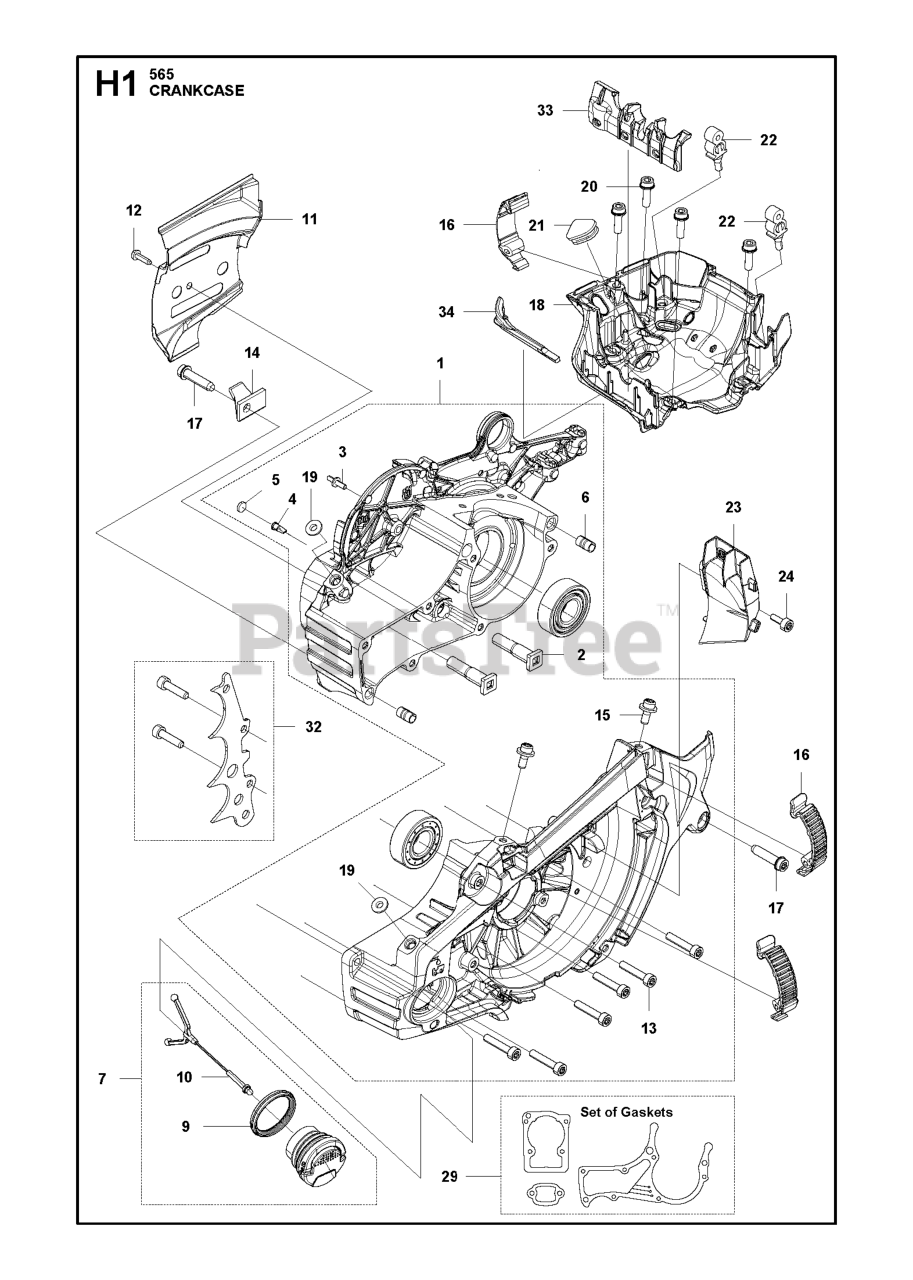

565 - Husqvarna Chainsaw CRANKCASE Parts Diagram

Chainsaw

CRANKCASE Parts Diagram

  • Title

1

Husqvarna 590195604

NEEDS DESCRIPTION

Note: 565

$

$

Not available

2

Husqvarna 537051301

BOLT

$7.99

$

In Stock, only 2 left!

0

3

Husqvarna 537203001

PIN

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 530026119

VALVE-CHECK (DUCKBILL)

$5.99

$

In Stock, Qty 8

0

5

Husqvarna 537403501

PLUG
(Superseded to 537403502)

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 593806001

GUIDE BUSHING

$9.99

$

In Stock, Qty 6

0

7

Husqvarna 522620003

TANK CAP ASSY

$13.99

$

In Stock, only 2 left!

0

9

Husqvarna 589241101

SEALING

$8.99

$

In Stock, only 2 left!

0

10

Husqvarna 503578901

TANK LOCK

$9.99

$

In Stock, Qty 15

0

11

Husqvarna 575616301

CHAIN GUIDE PLATE BAR MOUNT

$11.99

$

Usually ships in 3-10 days

0

12

Husqvarna 526221801

SCREW

$3.49

$

In Stock, only 1 left!

0

13

Husqvarna 575841104

SCREW ITXSCM M5X25 12.9 TBO T

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 537377902

CHAIN CATCHER

$7.99

$

In Stock, Qty 14

0

15

Husqvarna 525824401

SCREW ITXSCM WASHER M5X12 T27

$7.99

$

Usually ships in 3-10 days

0

16

Husqvarna 503894701

BUCKLE ORANGE

$14.99

$

Usually ships in 3-10 days

0

17

Husqvarna 525798103

SCREW

$6.49

$

In Stock, only 1 left!

0

18

Husqvarna 582179301

CARBURETTOR AREA BASE ASSY
(Superseded to 534114101)

$14.99

$

Usually ships in 3-10 days

0

19

Husqvarna 583098401

FIXING WASHER DISTANCE WASHER

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 525755202

SCREW ITXSCFM

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 581559201

GROMMET

$7.49

$

Usually ships in 3-10 days

0

22

Husqvarna 503869301

SUPPORT

Note: Mounting

$8.49

$

Usually ships in 3-10 days

0

23

Husqvarna 589340501

AIR NOZZLE
(Superseded to 589340502)

$5.99

$

Usually ships in 3-10 days

0

24

Husqvarna 574353505

SCREW ITXSCM

$7.99

$

Usually ships in 3-10 days

0

29

Husqvarna 578864701

GASKET KIT H565/H572

$17.99

$

In Stock, only 1 left!

0

32

Husqvarna 590261002

SPIKE KIT - INNER STD H565/H57

Note: Kit - Inner Std

$34.99

$

Usually ships in 3-10 days

0

33

Husqvarna 582179601

SEALING CARB AREA BASE

$6.99

$

Usually ships in 3-10 days

0

34

Husqvarna 589349001

SEALING CRANKCASE - CARB AREA

$5.99

$

Usually ships in 3-10 days

0
