565 (313-565-100) - Cub Cadet 22" Snow Thrower (1983) Handle Panel Ass'y And Frame Cover Parts Diagram

22" Snow Thrower

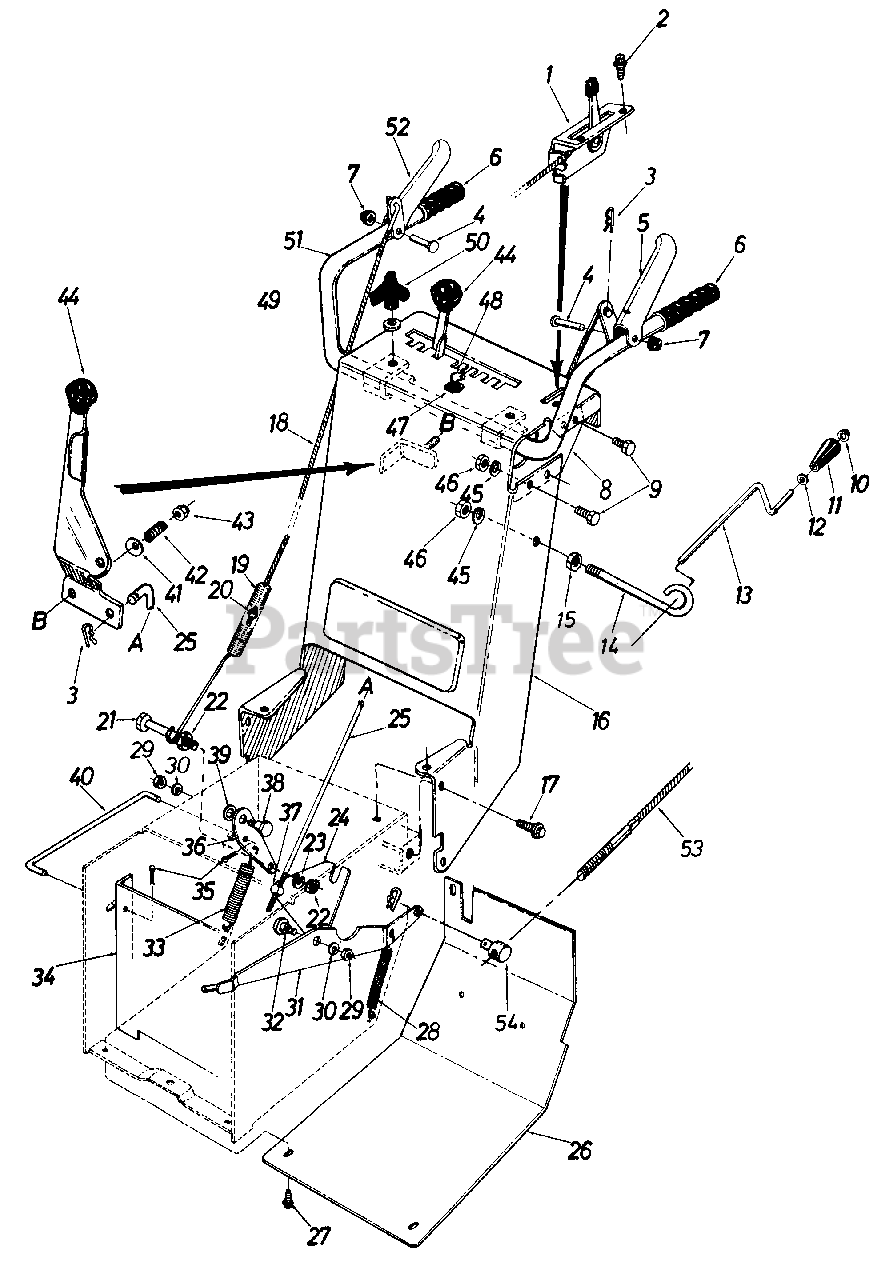

Handle Panel Ass'y And Frame Cover Parts Diagram

  • Title

1

Cub Cadet 746-0461

Throttle Control Ass'y. Comp.

$

$

Currently unavailable

2

Cub Cadet 710-0227

Hex AB-Tap Scr. #8 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 714-0111

Hairpin Cotter

$4.99

$

In Stock, Qty 13

0

4

Cub Cadet 711-0705

Clevis Pin .375" Dia. x 1.88" Lg.
(Superseded to 711-0679A)

$14.99

$

In Stock, only 2 left!

0

5

Cub Cadet 05701

Auger Clutch Grip Ass'y. - L.H.

$

$

Currently unavailable

6

Cub Cadet 720-0180

Grip Handle
(Superseded to 720-04083)

$14.99

$

In Stock, only 2 left!

0

7

Cub Cadet 726-0110

Push Cap .375 Rod - Black
(Superseded to 926-0100)

$

$

Not available

8

Cub Cadet 05807

Handle Support Brkt.

Note: Color Code - 499

$

$

Currently unavailable

9

Cub Cadet 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$4.49

$

In Stock, only 1 left!

0

10

Cub Cadet 726-0100

Push Nut 3/8" Rod

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 720-0171

Knob 3/8" I.D.
(Superseded to 920-0171)

$15.99

$

In Stock, only 1 left!

0

12

Cub Cadet 736-0140

Fl-Wash. .385 I.D. x .62 O.D. .063

$7.49

$

In Stock, Qty 7

0

13

Cub Cadet 747-0153

Chute Crank .38 Dia. x 41" Lg.

$

$

Currently unavailable

14

Cub Cadet 747-0350

Chute Control Support Rod

$

$

Currently unavailable

15

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 05800

Handle Panel Ass'y.

Note: Color Code - 499

$

$

Currently unavailable

17

Cub Cadet 710-0600

Hex Wash. Self-Tap Scr. 5/16-24 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 746-0367

Lockout Cable - 30.5" Lg.
(Superseded to 946-0367)

$40.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 732-0379

Spring .750 O.D. x 5.0" Lg.

$

$

Currently unavailable

20

Cub Cadet 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

21

Cub Cadet 710-0750

Hex Bolt 1/4-28 x 2.5" Lg.

$

$

Currently unavailable

22

Cub Cadet 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

24

Cub Cadet 05898

Shifting Linkage Brkt.

$

$

Not available

25

Cub Cadet 747-0398

Shifting Rod

$

$

Currently unavailable

26

Cub Cadet 05899

Frame Cover

Note: Color Code - 452

$

$

Currently unavailable

27

Cub Cadet 710-0599

Hex Wash. Self-Tap Scr. 1/4-20 x .50 Lg.

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 732-0320

Ext. Spring .38" O.D. x 3.25" Lg.
(Superseded to 932-0320)

$10.99

$

In Stock, Qty 6

0

29

Cub Cadet 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

30

Cub Cadet 736-0169

L-Wash. 3/8-16 I.D.

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 05885

Auger Clutch Brkt. Ass'y.

$

$

Currently unavailable

32

Cub Cadet 738-0281

Shld. Bolt .625" Dia. x .170" Lg.

$10.99

$

In Stock, Qty 7

0

33

Cub Cadet 732-0121

Idler Extension Spring
(Superseded to 932-0121)

$14.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 05878

Drive Pulley Support Brkt. Ass'y.

$

$

Currently unavailable

35

Cub Cadet 714-0507

Cotterpin 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, Qty 12

0

36

Cub Cadet 05501

Drive Clutch Brkt.

$

$

Not available

37

Cub Cadet 711-0677

Ferrule - Engagement
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

38

Cub Cadet 738-0281

Shld. Bolt .625" Dia. x .170" Lg.

$10.99

$

In Stock, Qty 7

0

39

Cub Cadet 736-0219

Bell-Wash. .400" I.D. x 1.13" O.D. x .03" Lg.
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

40

Cub Cadet 10080

Rod - Variable Speed

$

$

Not available

41

Cub Cadet 736-0105

Bell-Wash. .40" I.D. x .88 O.D. x .060" Lg.

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 732-0193

Compression Spring .39" I.D x .88" Lg.

$4.99

$

In Stock, Qty 6

0

43

Cub Cadet 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

44

Cub Cadet 05805

Shift Handle Ass'y.

$

$

Not available

45

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

46

Cub Cadet 712-0273

Hex Nut 5/16-24 Thd.
(Superseded to 912-0273)

$4.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 725-0464

Ignition Switch
(Superseded to 925-1425)

$35.99

$

In Stock, Qty 6

0

48

Cub Cadet 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

49

Cub Cadet 736-0242

Bell-Wash. .345" I.D. x .62" O.D. x .063"

$4.49

$

In Stock, Qty 20+

0

50

Cub Cadet 720-0170

Three Arm Knob 5/16-18 Thd.

$11.99

$

In Stock, only 2 left!

0

51

Cub Cadet 05803

Handle Ass'y.

Note: Color Code - 499

$

$

Currently unavailable

52

Cub Cadet 05778

Drive Clutch Grip Ass'y. - R.H.
(Superseded to 05778B-0637)

$

$

Not available

53

Cub Cadet 746-0435

Auger Clutch Cable - 36"
(Superseded to 946-0435)

$45.99

$

In Stock, only 2 left!

0

54

Cub Cadet 711-0736

Adjustment Ferrule

$13.99

$

In Stock, only 2 left!
