562 XP/XPG - Husqvarna Chainsaw IGNITION SYSTEM Parts Diagram

Chainsaw

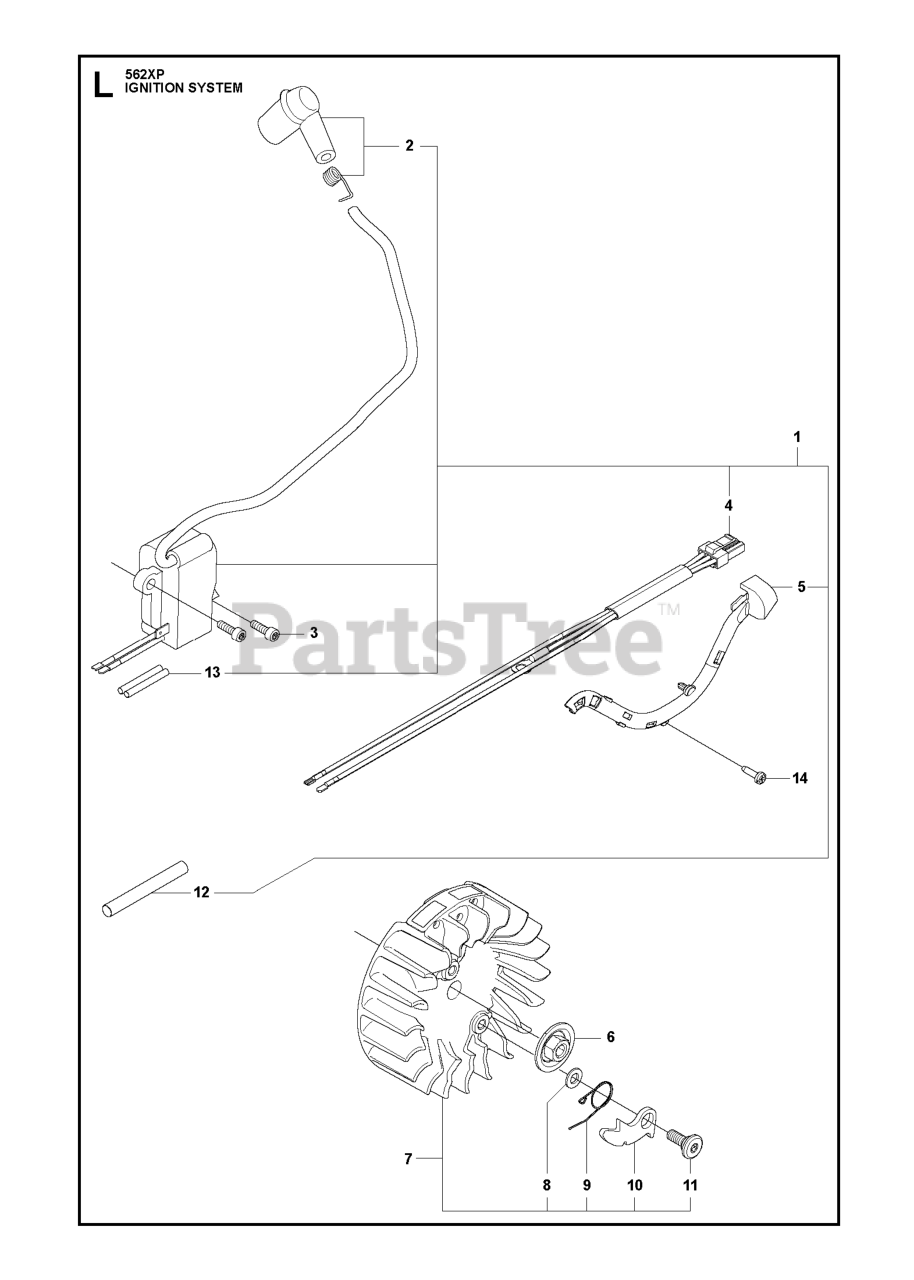

IGNITION SYSTEM Parts Diagram

  • Title

1

Husqvarna 522795106

IGNITION MODULE ASSY

Note: s/n up to - 20121401172 (14MHz)

$120.99

$

Usually ships in 3-10 days

0

1

Husqvarna 581723402

IGNITION MODULE ASSY

Note: s/n from 20121401173 - (8MHz)

$148.99

$

Usually ships in 3-10 days

0

2

Husqvarna 501485404

SPARK PLUG CAP ASSY

$14.99

$

Usually ships in 3-10 days

0

3

Husqvarna 525755203

SCREW ITXSCFM

$3.49

$

Usually ships in 3-10 days

0

4

Husqvarna 575430601

WIRING ASSY

Note: s/n up to - 20121401172 (14MHz)

$62.99

$

Usually ships in 3-10 days

0

4

Husqvarna 577967601

WIRING ASSY
(Superseded to 577967602)

Note: s/n from 20121401173 - (8MHz)

$56.99

$

Usually ships in 3-10 days

0

5

Husqvarna 505178201

CABLE HOLDER

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 585321801

NUT,M8X1PP A/F13X6,8XØ30X4X1,5

$7.49

$

Usually ships in 3-10 days

0

7

Husqvarna 504872403

FLYWHEEL ASSY
(Superseded to 504872401)

Note: XP

$265.99

$

Usually ships in 3-10 days

0

7

Husqvarna 504872404

NEEDS DESCRIPTION
(Superseded to 504872402)

Note: XPG

$136.99

$

Usually ships in 3-10 days

0

8

Husqvarna 503230042

WASHER

$6.49

$

In Stock, only 2 left!

0

9

Husqvarna 501673501

SPRING

$7.49

$

In Stock, Qty 10

0

10

Husqvarna 501673201

PAWL

$8.99

$

Usually ships in 3-10 days

0

11

Husqvarna 506006901

SCREW
(Superseded to 501819901)

$6.49

$

In Stock, Qty 6

0

12

Husqvarna 504043505

CABLE COVER

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 503238501

SHRINK HOSE

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 525887401

SCREW CITXPANT
(Superseded to 503212813)

$3.49

$

Usually ships in 3-10 days

0
