562 XP/XPG - Husqvarna Chainsaw FUEL TANK Parts Diagram

Chainsaw

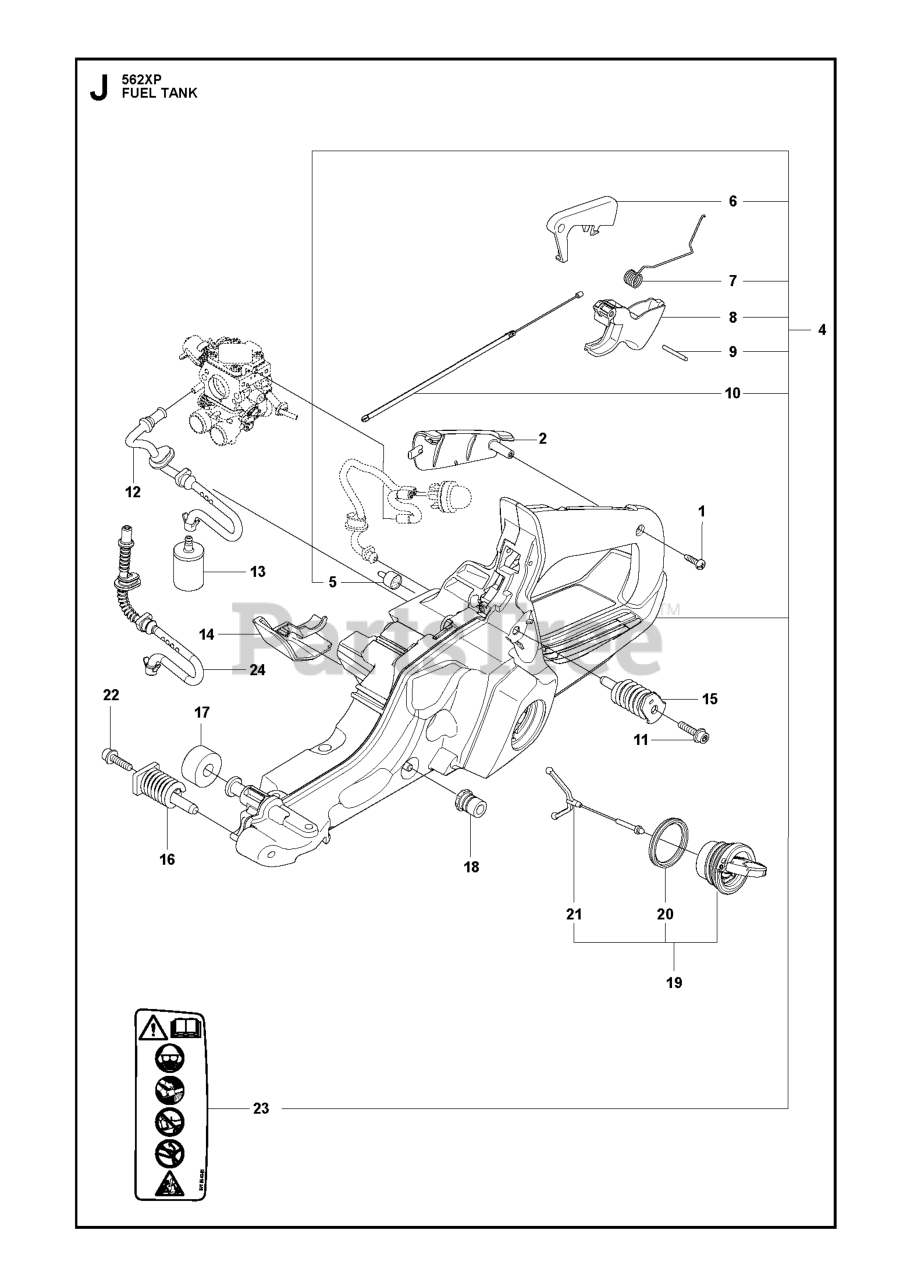

FUEL TANK Parts Diagram

  • Title

1

Husqvarna 525887402

SCREW CITXPANT

$6.49

$

In Stock, Qty 20+

0

2

Husqvarna 504106301

HANDLE INSERT

$6.99

$

In Stock, only 1 left!

0

4

Husqvarna 575382205

FUEL TANK ASSY

$102.99

$

Usually ships in 3-10 days

0

5

Husqvarna 501152901

FUEL TANK VENT

$17.99

$

In Stock, Qty 6

0

6

Husqvarna 544099801

THROTTLE LOCKOUT

$6.99

$

In Stock, only 1 left!

0

7

Husqvarna 544099901

SPRING

$7.49

$

Usually ships in 3-10 days

0

8

Husqvarna 505157701

THROTTLE

$6.99

$

Usually ships in 3-10 days

0

9

Husqvarna 720182520

PIN

$2.99

$

In Stock, Qty 10

0

10

Husqvarna 521887901

THROTTLE CABLE ASSY

$17.99

$

Usually ships in 3-10 days

0

11

Husqvarna 525798102

SCREW ITXSCFT

$3.49

$

In Stock, only 2 left!

0

12

Husqvarna 573993503

FUEL HOSE

$11.99

$

Usually ships in 3-10 days

0

13

Husqvarna 503443201

RP FUEL FILTER
(Superseded to 591375401)

$10.99

$

In Stock, Qty 20+

0

14

Husqvarna 505165901

COVER

Note: not XPW

$6.99

$

In Stock, only 1 left!

0

15

Husqvarna 586312103

ANTIVIBRATION ELEMENT REAR

$13.99

$

In Stock, only 1 left!

0

16

Husqvarna 505128702

ANTIVIBRATION ELEMENT FRONT

$17.99

$

In Stock, only 2 left!

0

17

Husqvarna 523085501

DEFLECTION LIMITER

$9.49

$

In Stock, only 1 left!

0

18

Husqvarna 501007601

LATERAL SUPPORT

$7.49

$

In Stock, only 4 left!

0

19

Husqvarna 522620003

TANK CAP ASSY

$13.99

$

In Stock, only 2 left!

0

20

Husqvarna 589241101

SEALING

$8.99

$

In Stock, only 2 left!

0

21

Husqvarna 503578901

TANK LOCK

$9.99

$

In Stock, Qty 15

0

22

Husqvarna 525798103

SCREW

$6.49

$

In Stock, only 1 left!

0

23

Husqvarna 577844301

DECAL

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 577504101

FUEL HOSE
(Superseded to 529578202)

$17.99

$

In Stock, only 1 left!

0
