562 XP/XPG - Husqvarna Chainsaw CHAIN BRAKE & CLUTCH COVER Parts Diagram

Chainsaw

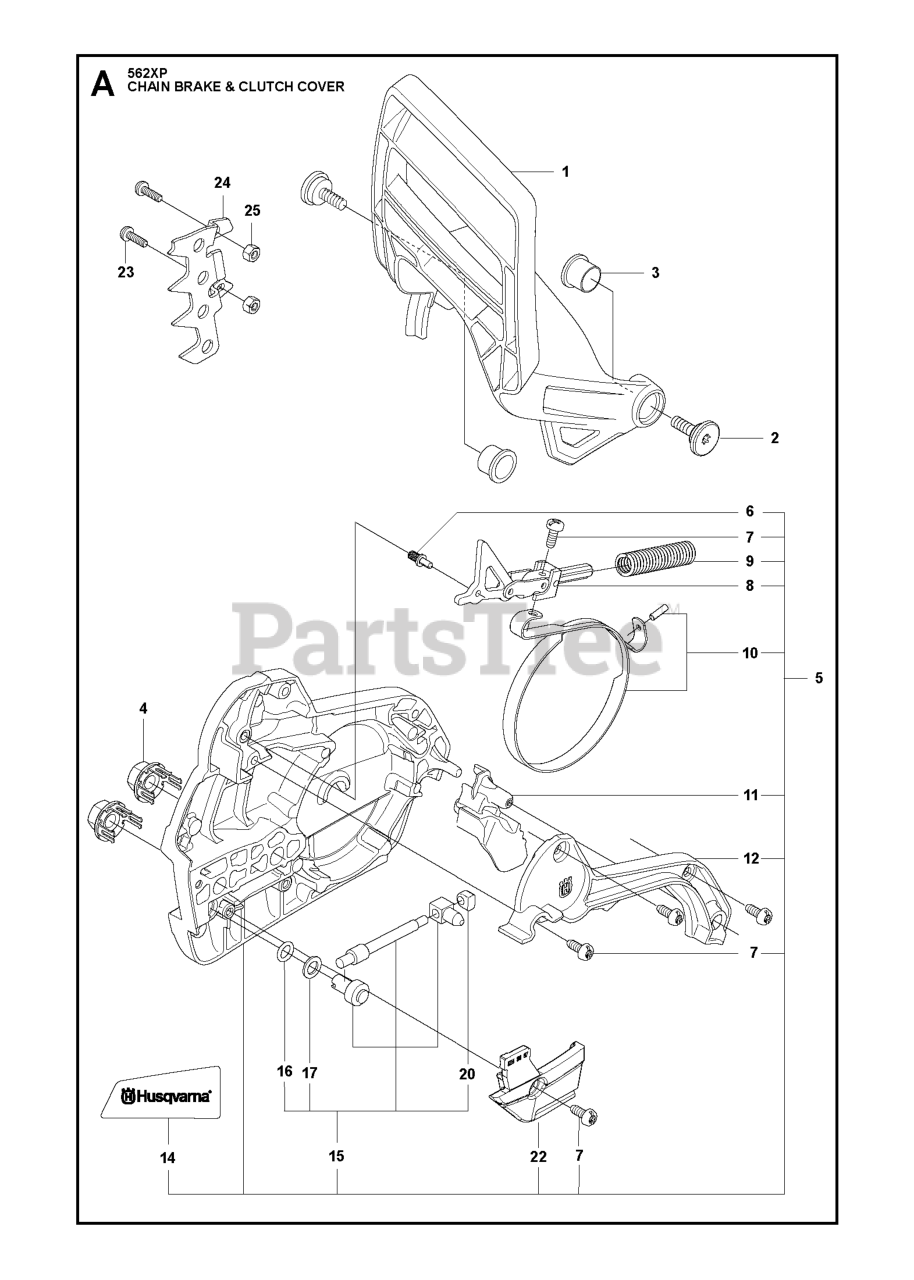

CHAIN BRAKE & CLUTCH COVER Parts Diagram

  • Title

1

Husqvarna 525250602

HAND GUARD

$22.99

$

In Stock, only 1 left!

0

2

Husqvarna 526834501

SCREW

$4.99

$

In Stock, only 1 left!

0

3

Husqvarna 577780201

BUSHING

$9.99

$

In Stock, only 2 left!

0

4

Husqvarna 505197301

NUT RETAINER ASSY

$7.99

$

In Stock, only 2 left!

0

5

Husqvarna 525743303

CLUTCH COVER ASSY
(Superseded to 525743305)

$133.99

$

In Stock, only 1 left!

0

6

Husqvarna 503751801

PIN

$4.99

$

In Stock, only 3 left!

0

7

Husqvarna 526221801

SCREW

$3.49

$

In Stock, only 1 left!

0

8

Husqvarna 505199301

KNEE JOINT ASSY

$22.99

$

Usually ships in 3-10 days

0

9

Husqvarna 503908301

SPRING
(Superseded to 505892601)

$4.99

$

In Stock, only 1 left!

0

10

Husqvarna 505199502

BRAKE BAND

$17.99

$

Usually ships in 3-10 days

0

11

Husqvarna 505201601

GUARD

$7.99

$

In Stock, only 1 left!

0

12

Husqvarna 505199701

COVER
(Superseded to 505199703)

$11.99

$

In Stock, only 3 left!

0

14

Husqvarna 523058001

LABEL

$4.99

$

In Stock, only 3 left!

0

15

Husqvarna 575260402

CHAIN TENSIONER KIT

$30.99

$

Usually ships in 3-10 days

0

16

Husqvarna 740480702

O-RING

$7.49

$

In Stock, only 4 left!

0

17

Husqvarna 503230063

WASHER

$6.49

$

In Stock, only 3 left!

0

20

Husqvarna 537017401

SLEEVE

$6.49

$

In Stock, only 1 left!

0

22

Husqvarna 525388701

CHAIN GUIDE

$6.99

$

In Stock, Qty 5

0

23

Husqvarna 575793501

SCREW ITXPANM M5X16 T27 10.9

$6.49

$

Usually ships in 3-10 days

0

24

Husqvarna 577975201

SPIKE OUTER

$17.99

$

Usually ships in 3-10 days

0

25

Husqvarna 503222401

NUT

$2.49

$

In Stock, Qty 19

0
