562 XP - Husqvarna Chainsaw (2013-01) HANDLE CONTROLS Parts Diagram

Chainsaw

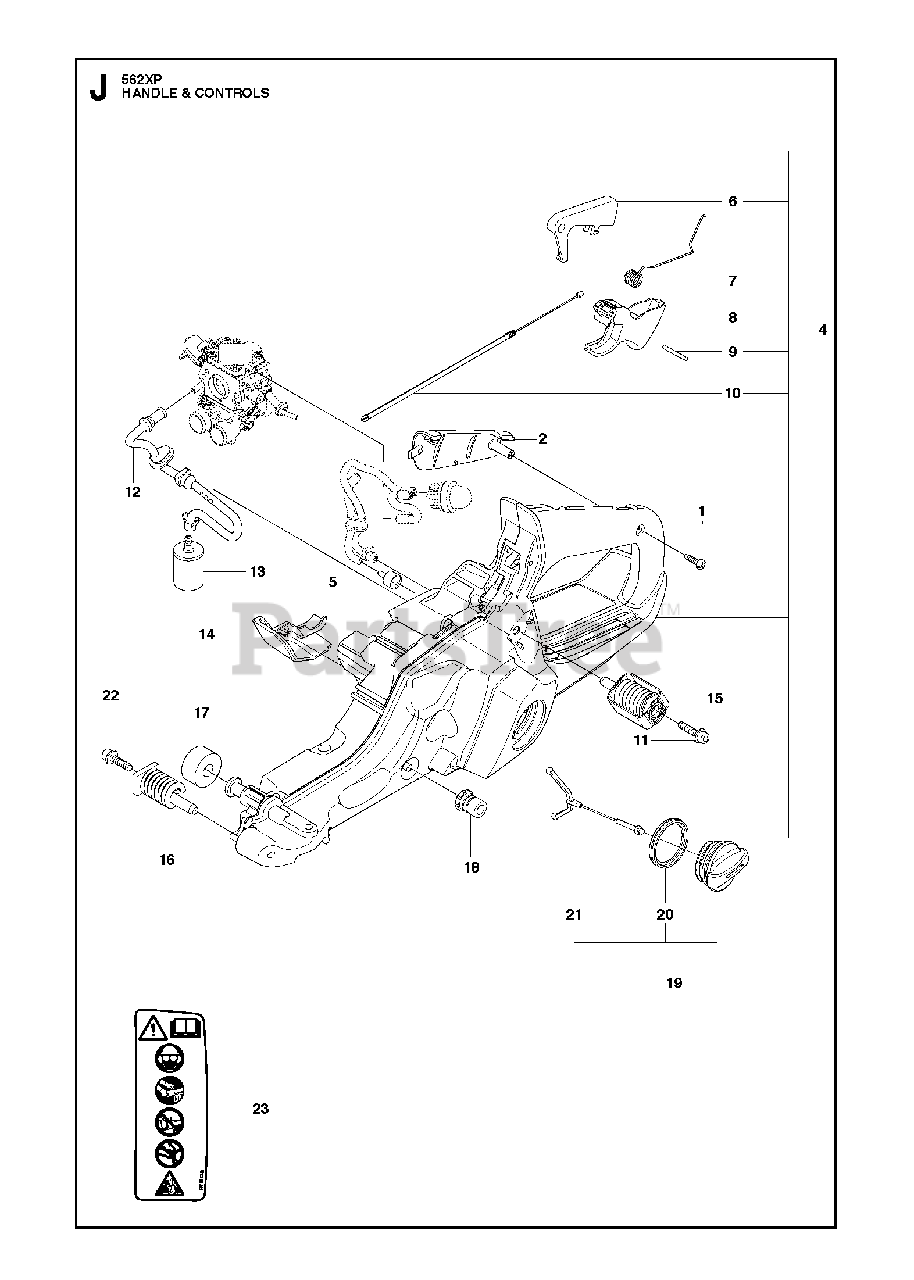

HANDLE CONTROLS Parts Diagram

  • Title

1

Husqvarna 503212813

SCREW

$3.49

$

Usually ships in 3-10 days

0

2

Husqvarna 504106301

HANDLE INSERT

$6.99

$

In Stock, only 1 left!

0

4

Husqvarna 575382205

FUEL TANK ASSY

$102.99

$

Usually ships in 3-10 days

0

5

Husqvarna 537359501

FUEL TANK VENT
(Superseded to 501152901)

Note: . 4

$17.99

$

In Stock, Qty 6

0

6

Husqvarna 544099801

THROTTLE LOCKOUT

Note: . 4

$6.99

$

In Stock, only 1 left!

0

7

Husqvarna 544099901

SPRING

Note: . 4

$7.49

$

Usually ships in 3-10 days

0

8

Husqvarna 505157701

THROTTLE

Note: . 4

$6.99

$

Usually ships in 3-10 days

0

9

Husqvarna 721126639

Note: . 4

$

$

Currently unavailable

10

Husqvarna 521887901

THROTTLE CABLE ASSY

$17.99

$

Usually ships in 3-10 days

0

11

Husqvarna 503218874

SCREW

$10.99

$

In Stock, Qty 9

0

12

Husqvarna 573993503

FUEL HOSE

$11.99

$

Usually ships in 3-10 days

0

13

Husqvarna 503443201

FUEL FILTER
(Superseded to 591375401)

$10.99

$

In Stock, Qty 20+

0

14

Husqvarna 505165901

COVER

Note: not XPW

$6.99

$

In Stock, only 1 left!

0

15

Husqvarna 578227401

ANTIVIBRATION ELEMENT

$13.99

$

In Stock, Qty 9

0

16

Husqvarna 505128701

ANITVIBRATION ELEMENT
(Superseded to 505128702)

$17.99

$

In Stock, only 2 left!

0

17

Husqvarna 523085501

DEFLECTION LIMITER

$9.49

$

In Stock, only 1 left!

0

18

Husqvarna 501007601

LATERAL SUPPORT

$7.49

$

In Stock, only 4 left!

0

19

Husqvarna 544111201

TANK CAP ASSY
(Superseded to 544111203)

$6.99

$

In Stock, Qty 19

0

20

Husqvarna 537215001

SEALING

Note: . 19

$8.99

$

In Stock, only 2 left!

0

21

Husqvarna 503578903

HOLDER
(Superseded to 503578901)

Note: . 19

$9.99

$

In Stock, Qty 15

0

22

Husqvarna 503218876

SCREW

$6.49

$

In Stock, Qty 20+

0

23

Husqvarna 577844301

DECAL

Note: . 4

$4.99

$

Usually ships in 3-10 days

0
