562 XP - Husqvarna Chainsaw (2011-06) CARBURETOR AIR FILTER Parts Diagram

Chainsaw

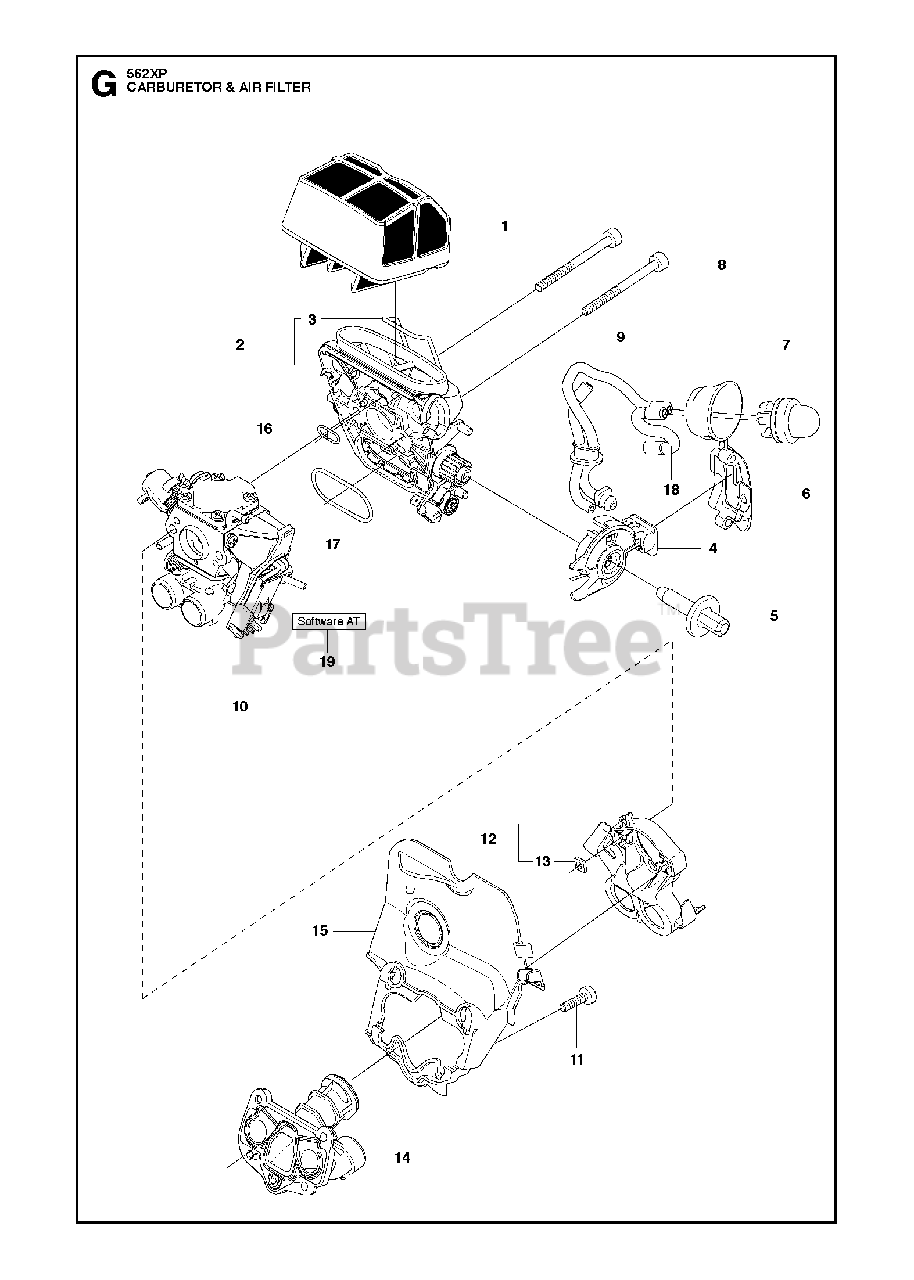

CARBURETOR AIR FILTER Parts Diagram

  • Title

1

Husqvarna 522675001

AIR FILTER ASSY BLCK 80 MICRON

Note: NYLON 80 m black

$22.99

$

In Stock, only 4 left!

0

1

Husqvarna 522675002

AIR FILTER ASSY YLLW 44 MICRON

Note: NYLON 44 m yellow

$22.99

$

Usually ships in 3-10 days

0

1

Husqvarna 522675003

AIR FILTER ASSY NATURAL FELT

Note: FELT white

$22.99

$

In Stock, only 1 left!

0

2

Husqvarna 505127001

RP FILTER HOLDER ASSY
(Superseded to 525397903)

Note: XP

$20.99

$

Usually ships in 3-10 days

0

2

Husqvarna 505127002

FILTER HOLDER ASSY

Note: XPG

$8.07

$

Usually ships in 3-10 days

0

3

Husqvarna 505176901

SHACKLE

Note: . 2

$5.99

$

Usually ships in 3-10 days

0

4

Husqvarna 510017201

CHOKE CONTROL ASSY
(Superseded to 510017202)

$12.99

$

In Stock, only 1 left!

0

5

Husqvarna 505156201

SCREW

$3.49

$

Usually ships in 3-10 days

0

6

Husqvarna 525588101

SEALING

$6.99

$

Usually ships in 3-10 days

0

7

Husqvarna 503936601

AIR PURGE BUBBLE

$21.99

$

Usually ships in 3-10 days

0

8

Husqvarna 503202550

SCREW

$4.99

$

In Stock, only 2 left!

0

9

Husqvarna 525344301

FUEL HOSE
(Superseded to 589357101)

$27.99

$

In Stock, only 1 left!

0

10

Husqvarna 522520801

CARBURETTOR
(Superseded to 579194101)

$182.99

$

In Stock, only 1 left!

0

11

Husqvarna 510020601

SCREW IHSCM
(Superseded to 526818101)

$6.49

$

In Stock, only 2 left!

0

12

Husqvarna 505165201

FLANGE

$

$

Not available

13

Husqvarna 503226503

NUT

Note: . 12

$4.99

$

In Stock, only 3 left!

0

14

Husqvarna 520291001

RP INLET PIPE
(Superseded to 583964103)

$53.99

$

In Stock, only 1 left!

0

15

Husqvarna 520290901

INTERMEDIATE WALL

$6.99

$

Usually ships in 3-10 days

0

16

Husqvarna 525619201

SEALING

$3.49

$

In Stock, Qty 8

0

17

Husqvarna 525619001

SEALING

$6.99

$

In Stock, Qty 7

0

18

Husqvarna 523056801

FUEL HOSE

$5.99

$

In Stock, only 1 left!

0

19

000000000

Note: Download from your local supportsite

$

$

Not available
