56190 (10-32) - Toro Recycler Rear-Engine Riding Mower (SN: 010000001 - 019999999) (1991) TRANSMISSION LINKAGE ASSEMBLY Parts Diagram

Recycler Rear-Engine Riding Mower

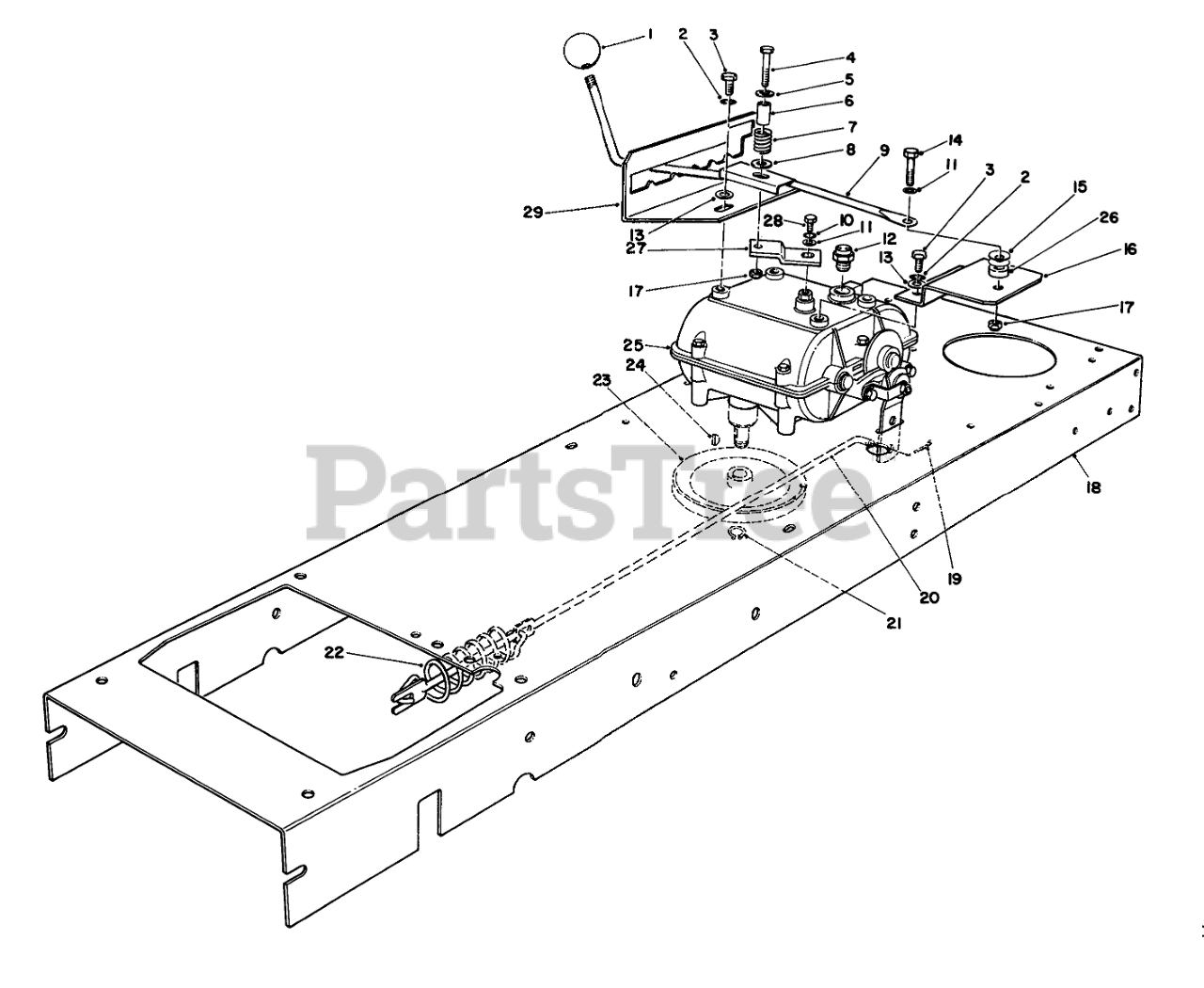

TRANSMISSION LINKAGE ASSEMBLY Parts Diagram

  • Title
1

$13.99

$

Usually ships in 3-6 days

0

2

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

3

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

4

Toro 321-15

SCREW-HH

$1.49

$

In Stock, Qty 11

0

5

Toro 3256-55

WASHER-FLAT

$5.49

$

In Stock, Qty 11

0

6

Toro 56-7740

SPACER-SPLIT

$

$

Not available

7

Toro 56-7730

SPRING-COMPRESSION

$18.99

$

Usually ships in 3-6 days

0

8

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 76-3980

Lever-Shift
(Superseded to 76-3980-03)

$

$

Not available

10

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

11

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 28-4250

NEUTRAL SWITCH

$46.99

$

Usually ships in 3-6 days

0

13

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

14

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

15

Toro 3290-428

PUSH IN NUT
(Superseded to 605120)

$4.49

$

In Stock, Qty 7

0

16

Toro 80-2520

BRKT - SHIFTER MTG B

$

$

Not available

17

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

18

Toro 80-2280

Frame-Main

$

$

Not available

19

Toro 3276-16

Pin-Cotter

$

$

Currently unavailable

20

Toro 56-7060

BRAKE ROD

$51.99

$

Usually ships in 3-6 days

0

21

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, Qty 20+

0

22

Toro 57-9940

SPRING-EXT

$

$

Not available

23

Toro 7-4085

PULLEY

$186.99

$

In Stock, only 3 left!

0

24

Toro 3257-23

KEY-WOODRUFF

$7.49

$

In Stock, Qty 20+

0

25

Toro 47-1530

TRANSMISSION

$

$

Not available

26

Toro 76-3970

SPACER-PIVOT

$

$

Not available

27

Toro 56-7620

LEVER-SHIFT

$

$

Not available

28

Toro 329-4

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

29

Toro 56-7630

Gate-Shift
(Superseded to 99-2970-03)

$38.99

$

Usually ships in 3-6 days

0
