56185 (8-32) - Toro Rear-Engine Riding Mower (SN: 020000001 - 029999999) (1992) STEERING WHEEL, SWITCHES & DECALS Parts Diagram

Rear-Engine Riding Mower

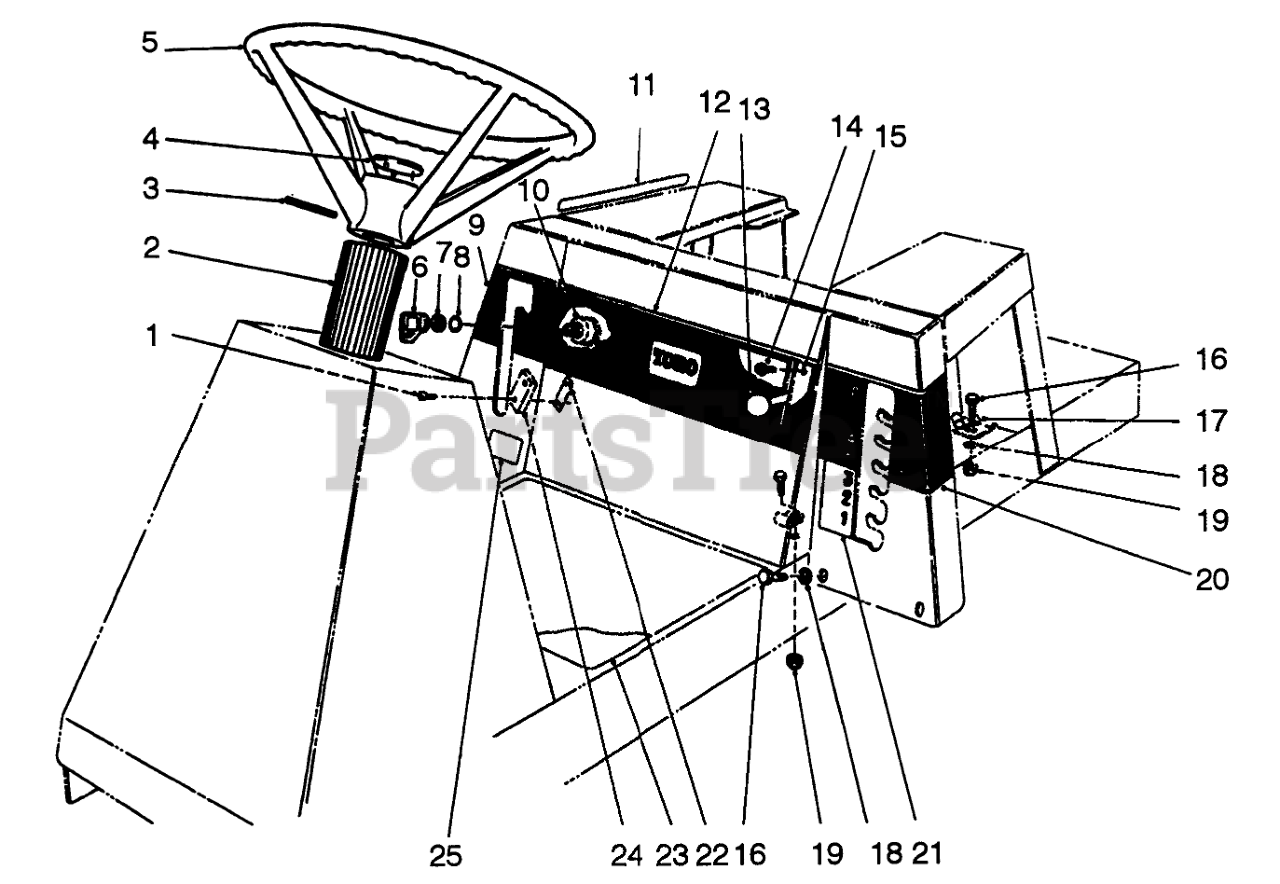

STEERING WHEEL, SWITCHES & DECALS Parts Diagram

  • Title

1

Toro 3290-313

SCREW-SPH

$7.49

$

Usually ships in 3-6 days

0

2

Toro 66-6740

COVER-STEERING SHAFT

$

$

Not available

3

Toro 32121-78

PIN-ROLL

$3.49

$

In Stock, Qty 7

0

4

Toro 66-6910

STEERING WHEEL INSERT

$

$

Not available

5

Toro 49-3240

Assy.-Wheel, Steering (Incl. Ref. #4)

$200.99

$

Usually ships in 3-6 days

0

6

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 12

0

7

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

8

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 2 left!

0

9

Toro 76-1310

DECAL-UPPER DECK ENGAGE

$10.99

$

Usually ships in 3-6 days

0

10

Toro 63-5630

Switch-Ignition (Incl. Ref. #6-8)
(Superseded to 23-0660)

$23.99

$

In Stock, only 1 left!

0

11

Toro 76-1280

DECAL - SHIFT PATTERN

$3.99

$

Usually ships in 3-6 days

0

12

Toro 76-1260

DECAL-FRT SEAT CONTROLS

$

$

Not available

13

Toro 233-25

KNOB-CONTROL

$5.49

$

In Stock, only 1 left!

0

14

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

15

Toro 80-2590

Control-Throttle (Incl. Ref. #13)

$89.99

$

Usually ships in 3-6 days

0

16

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Toro 2412-68

CLAMP

$

$

Not available

18

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 76-1290

DECAL - UPPER HOC

$58.99

$

Usually ships in 3-6 days

0

21

Toro 76-1300

DECAL - LOWER HOC

$

$

Not available

22

Toro 3290-354

NUT-SPEED

$10.99

$

Usually ships in 3-6 days

0

23

Toro 76-1090

INSTRUCTION DECAL

$

$

Not available

24

Toro 40-8200

SWITCH-MICRO

$32.99

$

In Stock, only 3 left!

0

25

Toro 76-1320

DECAL-LOWER DECK ENGAGE

$

$

Not available
