56185 (8-32) - Toro Rear-Engine Riding Mower (SN: 020000001 - 029999999) (1992) MODEL NO. 286707-0119-01 Parts Diagram

Rear-Engine Riding Mower

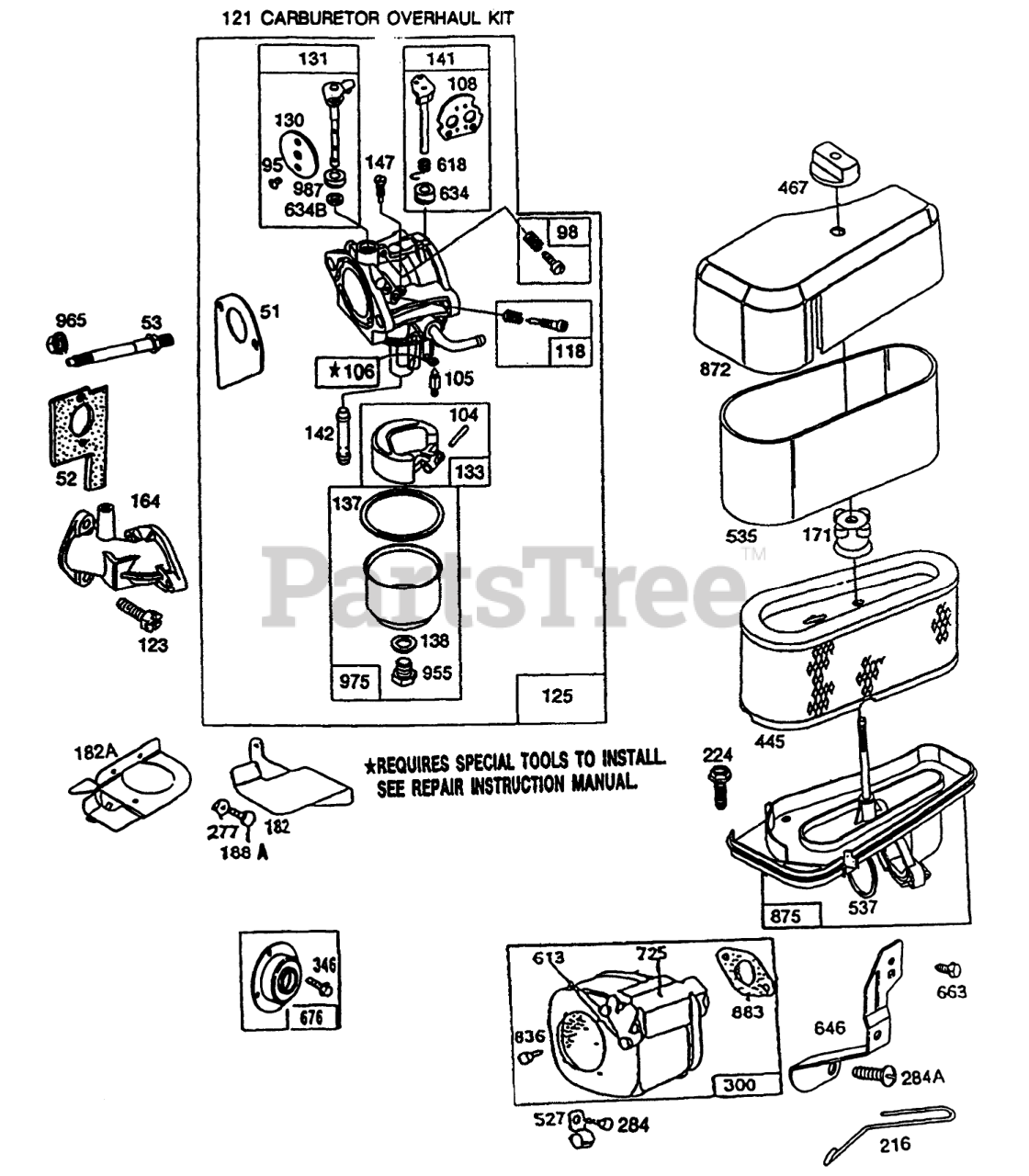

MODEL NO. 286707-0119-01 Parts Diagram

  • Title

51

Briggs & Stratton 272465

Gasket-Intake
(Superseded to 692284)

$4.99

$

In Stock, only 3 left!

0

52

Briggs & Stratton 270872

Gasket-Intake
(Superseded to 498869)

$5.49

$

In Stock, Qty 10

0

53

Briggs & Stratton 94637

Stud-Mounting, Carbureator
(Superseded to 690227)

$7.99

$

In Stock, Qty 6

0

95

Briggs & Stratton 94098

Valve-Choke
(Superseded to 691636)

$3.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 494382

Screw-Idle Speed
(Superseded to 398185)

$7.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 231789

Pin-Hinge, Float
(Superseded to 690525)

$4.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 231790

Valve Assy-Inlet Needle
(Superseded to 494788)

$9.99

$

In Stock, only 2 left!

0

106

Briggs & Stratton 281169

Inlet Valve Seat
(Superseded to 691901)

$8.99

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 224540

Valve-Choke
(Superseded to 692344)

$8.49

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 494383

Valve-Needle

$13.99

$

In Stock, only 1 left!

0

121

Briggs & Stratton 494384

Carburetor Overhaul Kit
(Superseded to 497535)

$67.99

$

In Stock, only 2 left!

0

123

Briggs & Stratton 94616

Screw-Elbow Mtg
(Superseded to 690953)

$5.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 494502

Carburetor Assembly
(Superseded to 799728)

$

$

Not available

130

Briggs & Stratton 224539

Valve-ThroWe
(Superseded to 691750)

$9.49

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 494379

Throttle Shaft Kit
(Superseded to 790901)

$38.99

$

In Stock, only 1 left!

0

133

Briggs & Stratton 494381

Float-Carburetor

$13.99

$

In Stock, only 4 left!

0

137

Briggs & Stratton 281165

Gasket-Bowl, Float
(Superseded to 281165S)

$4.99

$

Usually ships in 2-12 days

0

138

Briggs & Stratton 281164

Washer
(Superseded to 692255)

$5.49

$

In Stock, Qty 20+

0

141

Briggs & Stratton 494380

Shaft & Lever-Choke
(Superseded to 790902)

$33.99

$

In Stock, only 1 left!

0

142

Briggs & Stratton 494537

Noale-Carburetor
(Superseded to 691425)

$29.99

$

In Stock, only 2 left!

0

147

Briggs & Stratton 231794

Pilot-Jet
(Superseded to 497472)

$22.99

$

Usually ships in 2-12 days

0

164

Briggs & Stratton 213819

Manifold-Intake
(Superseded to 691711)

$

$

Not available

171

Briggs & Stratton 281051

Nut
(Superseded to 692297)

$10.99

$

Usually ships in 2-12 days

0

182

Briggs & Stratton 223925

Bracket Fuel Tank
(Superseded to 690443)

$22.99

$

Usually ships in 2-12 days

0

182A

Briggs & Stratton 223866

Bracket-Fuel Tank
(Superseded to 692535)

$45.99

$

Usually ships in 2-12 days

0

188A

Briggs & Stratton 93634

Screw
(Superseded to 690341)

$5.99

$

In Stock, only 3 left!

0

216

Briggs & Stratton 262766

Link-Choke
(Superseded to 691840)

$8.99

$

In Stock, Qty 19

0

224

Briggs & Stratton 94513

Screw-Sem
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

277

Briggs & Stratton 22776

Washer
(Superseded to 690259)

$12.99

$

In Stock, only 2 left!

0

284

Briggs & Stratton 94419

Screw
(Superseded to 691693)

$3.99

$

In Stock, Qty 8

0

284A

Briggs & Stratton 94326

Screw-Pan Head
(Superseded to 691677)

$3.99

$

In Stock, only 4 left!

0

300

Briggs & Stratton 491413

Muffler
(Superseded to 691874)

$57.99

$

In Stock, only 3 left!

0

346

Briggs & Stratton 93705

Screw
(Superseded to 690661)

$3.49

$

In Stock, Qty 8

0

445

Briggs & Stratton 493909

Filter-Air
(Superseded to 496894S)

$19.99

$

In Stock, only 3 left!

0

467

Briggs & Stratton 493903

Knob
(Superseded to 691668)

$5.49

$

In Stock, only 1 left!

0

527

Briggs & Stratton 221428

Clamp
(Superseded to 690394)

$4.99

$

Usually ships in 2-12 days

0

535

Briggs & Stratton 272403

Filter-Air
(Superseded to 272403S)

$3.99

$

In Stock, Qty 18

0

537

Briggs & Stratton 281106

O-Ring
(Superseded to 691917)

$4.49

$

In Stock, Qty 20+

0

613

Briggs & Stratton 93927

Screw
(Superseded to 691416)

$11.99

$

In Stock, Qty 12

0

618

Briggs & Stratton 262803

Spring-Choke

$8.99

$

Usually ships in 2-12 days

0

634

Briggs & Stratton 281168

Seal-Choke Shaft
(Superseded to 690597)

$6.49

$

Usually ships in 2-12 days

0

634B

Briggs & Stratton 281167

Seal-Throttle Shaft
(Superseded to 692279)

$3.99

$

In Stock, only 3 left!

0

646

Briggs & Stratton 224546

Brace-Air Cleaner

$

$

Not available

663

Briggs & Stratton 94620

Screw
(Superseded to 691693)

$3.99

$

In Stock, Qty 8

0

676

Briggs & Stratton 396903

Deflector-Exhaust

$14.99

$

Usually ships in 2-12 days

0

725

Briggs & Stratton 223023

Shield-Heat
(Superseded to 690420)

$18.99

$

Usually ships in 2-12 days

0

836

Briggs & Stratton 94513

Screw-Sem
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

872

Briggs & Stratton 281104

Cover-Air Cleaner
(Superseded to 691916)

$

$

Not available

875

Briggs & Stratton 494237

Base-Air Cleaner
(Superseded to 696129)

$

$

Not available

883

Briggs & Stratton 270917

Gasket Exhaust
(Superseded to 692236)

$5.49

$

In Stock, Qty 20+

0

955

Briggs & Stratton 94642

Plug
(Superseded to 691657)

$7.99

$

In Stock, only 1 left!

0

965

Briggs & Stratton 94108

Locknut
(Superseded to 690958)

$3.49

$

In Stock, only 3 left!

0

975

Briggs & Stratton 494378

Bowl-Float
(Superseded to 495933)

$

$

Not available

977

Briggs & Stratton 494385

Carburetor Gasket Kit
(Superseded to 697241)

$43.99

$

In Stock, only 1 left!

0

987

Briggs & Stratton 281166

Seal-Shaft
(Superseded to 691326)

$5.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 494384

Kit-Overhaul, Carburetor (Incl. Ref. #51, 95, 104, 105, 106, 137, 138, 142, 147, 634, 634B & 987)
(Superseded to 497535)

Note: Not illustrated

$67.99

$

In Stock, only 2 left!

0

Briggs & Stratton 494385

Gasket Set-Carburetor (Incl. Ref. #51, 137 & 138)
(Superseded to 697241)

Note: Not illustrated

$43.99

$

In Stock, only 1 left!

0

Briggs & Stratton 494241

Gasket Set (Incl. Ref. #537 & 883)

Note: Not illustrated

$39.99

$

In Stock, Qty 8

0
