56185 (8-32) - Toro Rear-Engine Riding Mower (SN: 010000001 - 019999999) (1991) FRONT TOWER ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

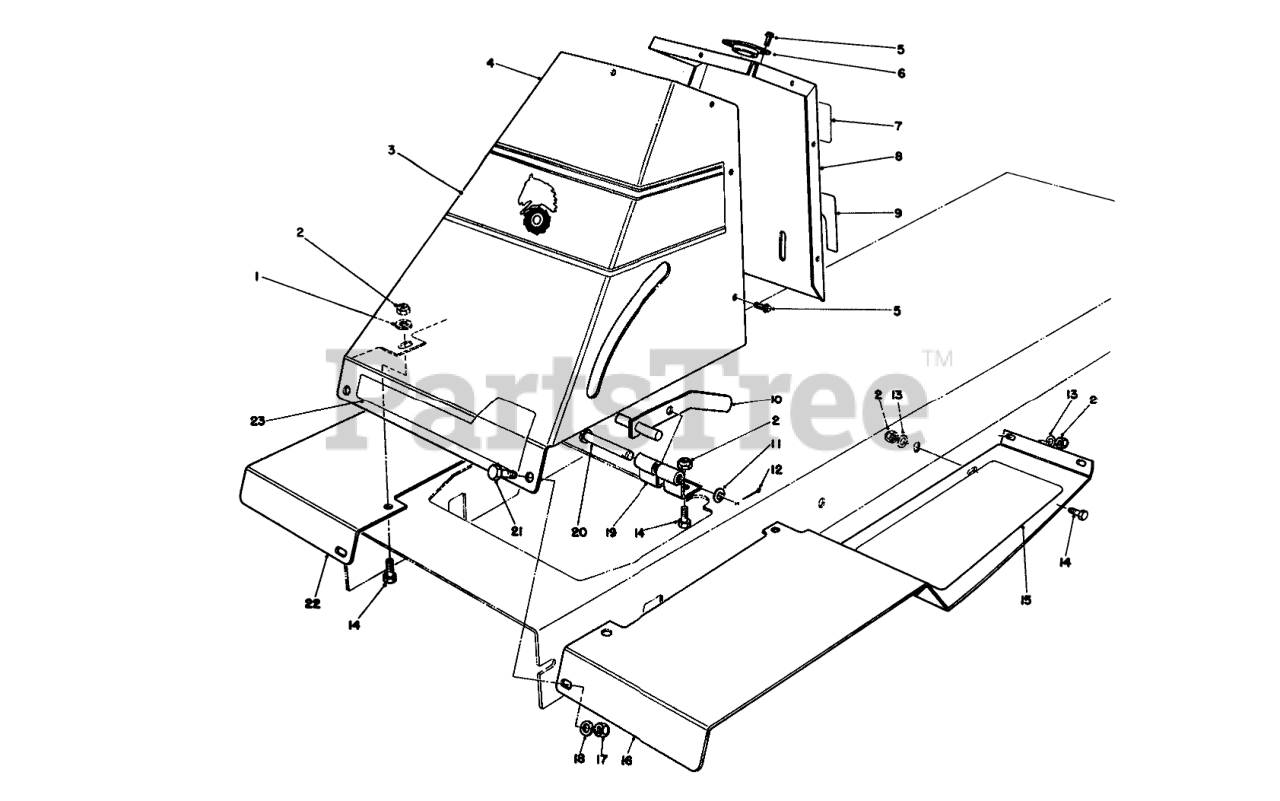

FRONT TOWER ASSEMBLY Parts Diagram

  • Title

1

Toro 3256-35

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

2

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

3

Toro 76-1270

DECAL - STEERING SUPT

$

$

Not available

4

Toro 56-7130

Tower-Front
(Superseded to 56-7130-01)

$

$

Not available

5

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

6

Toro 56-7170

GUIDE-STRG SHAFT

$10.99

$

Usually ships in 3-6 days

0

7

Toro 79-0370

DECAL-DANGER

$

$

Not available

8

Toro 56-7140

Tower-Rear
(Superseded to 56-7140-03)

$

$

Not available

9

Toro 56-7810

PARK BRAKE DECAL

$

$

Not available

10

Toro 47-1290

PARKING BRAKE WA B

$

$

Not available

11

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

13

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

14

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 47-1440

FOOT TREAD L.H.

$

$

Not available

16

Toro 47-0940

Footrest-LH
(Superseded to 47-0940-01)

$

$

Not available

17

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

18

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 47-2060

Bracket-Parking Brake
(Superseded to 47-2060-03)

$

$

Not available

20

Toro 283-52

PIN-CLEVIS

$12.99

$

Usually ships in 3-6 days

0

21

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 47-0930

Footrest-RH.
(Superseded to 47-0930-01)

$

$

Not available

23

Toro 82-6280

DECAL/RECYCLER 32" FRT

$

$

Not available

Toro 12-8829

Loose Parts

$

$

Not available

Toro 12-8819

Loose Parts-Model 56195 (Includes Steering Wheel)

$

$

Not available

Toro 12-8809

Loose Parts

$

$

Not available

Toro 12-8799

Loose Parts-Model 56185 (Includes Steering Wheel)

$

$

Not available
