56177 (12-32) - Toro Rear-Engine Riding Mower (SN: 010000001 - 019999999) (1991) ENGINE ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

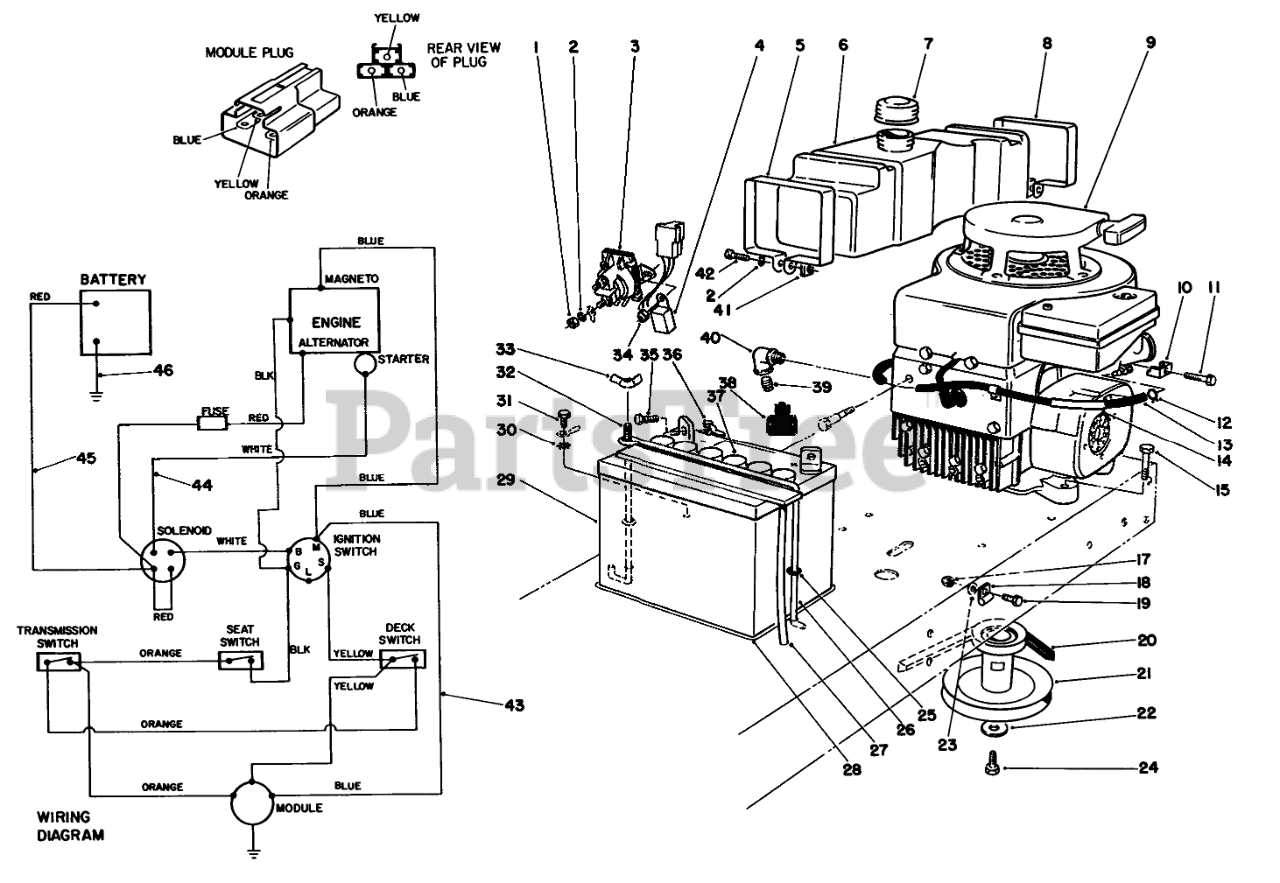

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

2

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

3

Toro 47-1910

SOLENOID
(Superseded to 740207)

$36.99

$

In Stock, only 2 left!

0

4

Toro 28-7890

Module Interlock
(Superseded to 95-0659)

$176.99

$

Usually ships in 3-6 days

0

5

Toro 57-4060

Retainer-Front
(Superseded to 57-4060-03)

$

$

Not available

6

Toro 56-7050

TANK-5 QT GAS

$209.99

$

In Stock, only 1 left!

0

7

Toro 55-3570

GAS CAP ASM

$15.99

$

In Stock, Qty 9

0

8

Toro 57-4070

Retainer-Rear
(Superseded to 57-4070-03)

$

$

Not available

9

Engine-12.5 H.P. B&S

$

$

Not available

10

Toro 2210-249

CLAMP-CASING

$3.99

$

Usually ships in 3-6 days

0

11

Toro 2210-248

SCREW W ENGINE

$

$

Not available

12

Toro 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

13

Toro 47-2961

HOSE - FUEL
(Superseded to 108-4582)

$12.99

$

In Stock, only 1 left!

0

14

Toro 62-5490

SUPPORT-FUEL LINE

$

$

Not available

15

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 2412-68

CLAMP

$

$

Not available

19

Toro 322-9

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

20

Toro 47-1410

V-BELT, TRACTION

$28.99

$

In Stock, only 2 left!

0

21

Toro 80-2470

ENGINE PULLEY ASM

$

$

Not available

22

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

24

Toro 62-3760

SCREW-HH

$10.99

$

Usually ships in 3-6 days

0

25

Toro 237-143

O-RING

$1.99

$

Usually ships in 3-6 days

0

26

Toro 56-7710

HOLDDOWN-BATTERY

$23.99

$

In Stock, only 2 left!

0

27

Toro 56-2540

TUBE-BATT DRAIN/80-2600

$4.49

$

In Stock, only 1 left!

0

28

Toro 62-4300

PAD-SKID, ANTI

$20.99

$

Usually ships in 3-6 days

0

29

Toro 80-2600

Battery
(Superseded to 105-1692)

$

$

Not available

30

Toro 3254-2

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

31

Toro 32144-14

SCREW-HWHTF

$4.99

$

Usually ships in 3-6 days

0

32

Toro 56-7720

POST-BATTERY
(Superseded to 100-6435)

$20.99

$

Usually ships in 3-6 days

0

33

Toro 32103-12

NUT-WING

$1.99

$

In Stock, only 3 left!

0

34

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

35

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

36

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 11

0

37

Toro 218-560

CAP-BATTERY

$

$

Not available

38

Toro 28-8080

BOOT-TERMINAL

$25.99

$

Usually ships in 3-6 days

0

39

Toro 285-23

3/8 PIPE PLUG

$

$

Not available

40

Toro 2811-10

ELBOW-STREET, 90 DEG

$

$

Not available

41

Toro 32107-11

NUT-SQUARE

$

$

Not available

42

Toro 3274-51

SCREW-HSH

$0.99

$

Usually ships in 3-6 days

0

43

Toro 82-6430

WIRING HARNESS

$

$

Not available

44

Toro 82-6440

WIRE HARNESS

$205.99

$

Usually ships in 3-6 days

0

45

Toro 56-7670

WIRE ASM

$32.99

$

In Stock, only 1 left!

0

46

Toro 56-7870

WIRE ASM(BATT/GRD.

$

$

Not available

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 7

0
