56175 (12-32) - Toro Rear-Engine Riding Mower (SN: 008000001 - 008999999) (1988) TRACTION ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

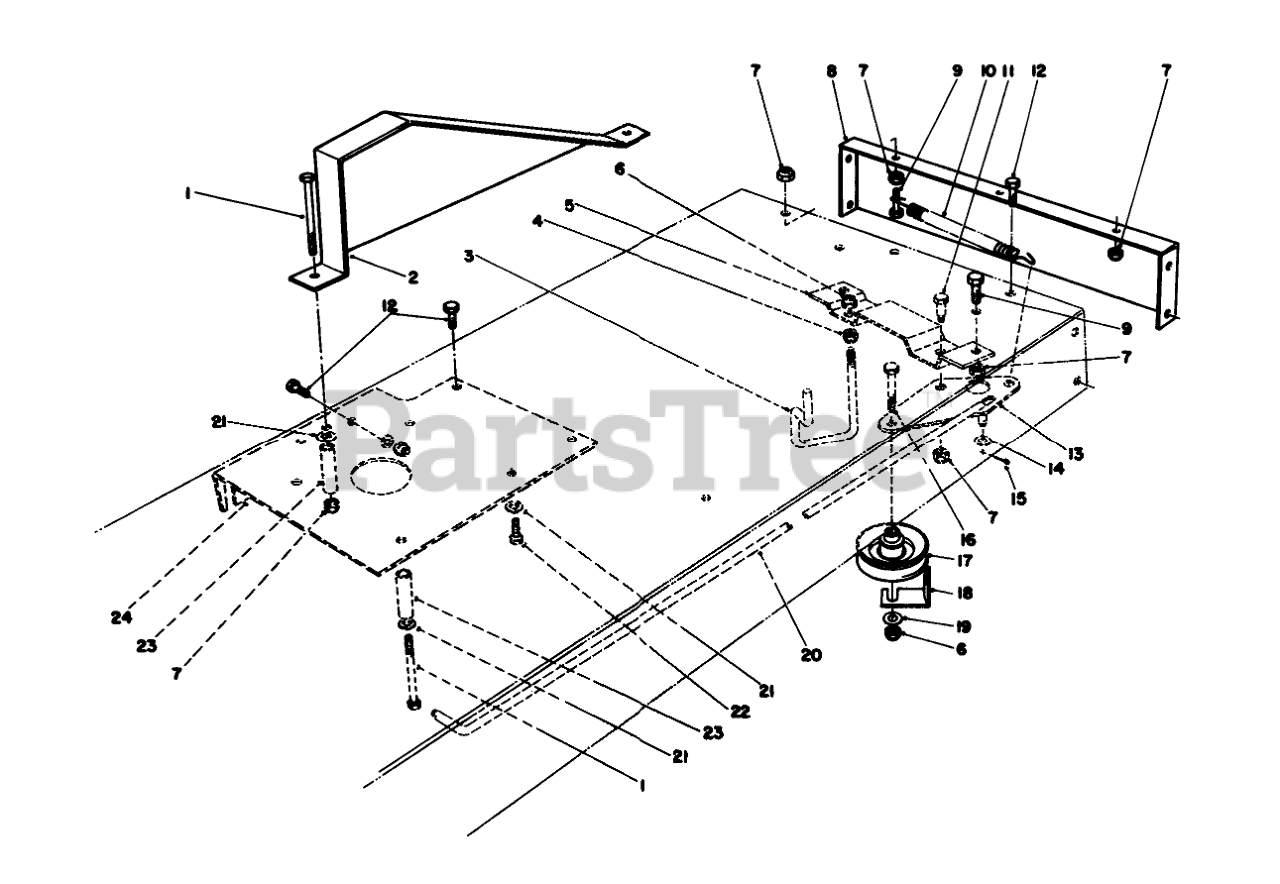

TRACTION ASSEMBLY Parts Diagram

  • Title

1

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

2

Toro 47-1220

CHAIN GUARD R

$

$

Not available

3

Toro 47-4500

Guide-Belt

$

$

Currently unavailable

4

Toro 32153-2

NUT-LOCK, SIDE
(Superseded to 603773)

$2.99

$

In Stock, Qty 20+

0

5

Toro 47-0471

TRACT SUPP BRKT B

$

$

Not available

6

Toro 32152-2

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 17

0

7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 47-0730

REAR FRAME R

$209.99

$

Usually ships in 3-6 days

0

9

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 27-8960

TRACTION SPRING

$

$

Not available

11

Toro 37-8770

BOLT-SHOULDER

$1.49

$

In Stock, only 2 left!

0

12

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 474481

Bracket-Traction Pivot

$

$

Currently unavailable

14

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

16

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 12-5820

PULLEY-IDLER

$29.99

$

In Stock, Qty 6

0

18

Toro 12-9020

RETAINER-BELT

$

$

Not available

19

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 47-0490

TRACTION ROD

$267.99

$

Usually ships in 3-6 days

0

21

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

22

Toro 32140-45

Screw-HH

$

$

Not available

23

Toro 47-0920

OUTER TUBE SPACER

$

$

Not available

24

Toro 47-1950

REINF PLATE R

$

$

Not available
