56175 (12-32) - Toro Rear-Engine Riding Mower (SN: 008000001 - 008999999) (1988) FRONT AXLE ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

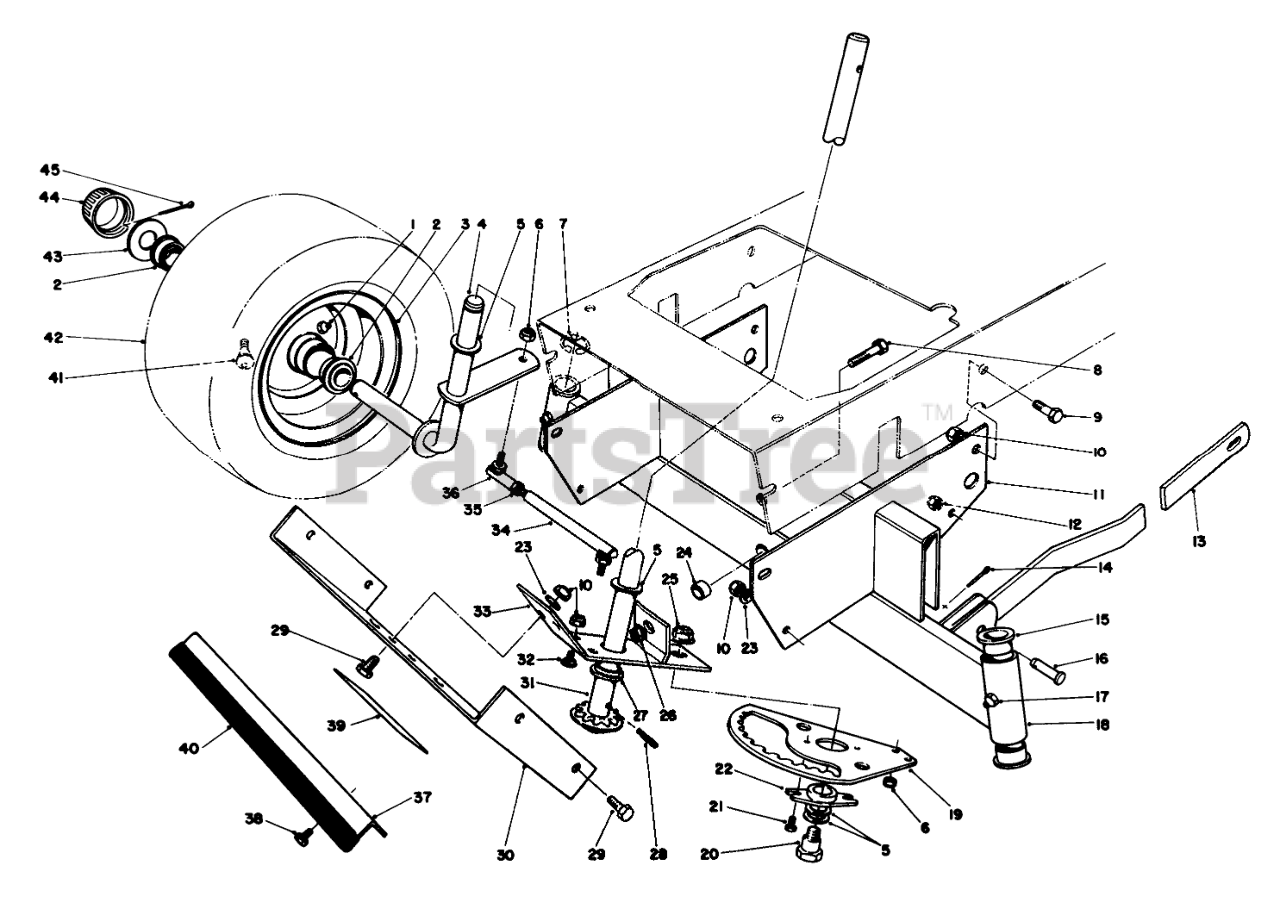

FRONT AXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

2

Toro 251-210

Bearing
(Superseded to 110513)

$21.99

$

In Stock, only 3 left!

0

3

Toro 217-80

RIM

$218.99

$

Usually ships in 3-6 days

0

4

Toro 47-0600

Spindle RH
(Superseded to 47-0600-01)

$

$

Not available

Toro 47-0590

Spindle LH
(Superseded to 47-0590-01)

$

$

Not available

5

Toro 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 15

0

6

Toro 3296-4

NUT-LOCK

$0.99

$

In Stock, Qty 9

0

7

Toro 32151-48

E-RING

$1.99

$

In Stock, Qty 14

0

8

Toro 325-6

SCREW-HH

$3.49

$

In Stock, only 4 left!

0

9

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Toro 47-0760

Support
(Superseded to 47-0760-01)

$

$

Not available

12

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 2 left!

0

13

Toro 47-0010

Arm-Suspension, Front
(Superseded to 47-0010-01)

$

$

Not available

14

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

15

Toro 27-9080

BEARING-FLANGE

$3.99

$

In Stock, Qty 6

0

16

Toro 283-2

PIN-CLEVIS

$13.99

$

In Stock, only 2 left!

0

17

Toro 30249

Fitting-Grease

$

$

Not available

18

Toro 47-0980

Axle-Front (Incl. Ref. #15 & 17)

$

$

Not available

19

Toro 56-7510

STEERING RACK B
(Superseded to 56-7510-03)

$

$

Not available

20

Toro 56-7530

BOLT

$36.99

$

Usually ships in 3-6 days

0

21

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

22

Toro 56-7520

BUSHING-SECTOR

$23.99

$

Usually ships in 3-6 days

0

23

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

24

Toro 28-0380

SPACER-AXLE, FRONT

$3.49

$

Usually ships in 3-6 days

0

25

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

26

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

27

Toro 47-0700

BEARING-FLANGE

$18.99

$

Usually ships in 3-6 days

0

28

Toro 32121-9

PIN-ROLL, SLOTTED

$3.49

$

In Stock, Qty 9

0

29

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

30

Toro 56-7180

Cover-Front
(Superseded to 56-7180-01)

$62.99

$

Usually ships in 3-6 days

0

31

Toro 56-7500

STRG SHAFT WA

$215.99

$

Usually ships in 3-6 days

0

32

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 5

0

33

Toro 56-7470

Bracket-Steering Rack (Incl. Ref. #27)

$155.99

$

Usually ships in 3-6 days

0

34

Toro 47-0610

Tie Rod-Steering (Incl. Ref. #35 & 36)

$

$

Not available

35

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

36

Toro 2411-32

JOINT-BALL

$33.99

$

Usually ships in 3-6 days

0

37

Toro 57-6010

FRONT GUARD R

$

$

Not available

38

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

39

Toro 26-4830

Decal-Warning

$

$

Not available

40

Toro 57-6040

TRIM-FRONT GUARD

$

$

Not available

41

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

42

Toro 231-116

TIRE,PNEU.11X4.00X5

$

$

Not available

43

Toro 28-2480

WASHER-PLAIN

$4.99

$

In Stock, Qty 6

0

44

Toro 61-9780

CAP-HUB

$7.99

$

In Stock, Qty 20+

0

45

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

Toro 232-44

TUBE

$

$

Not available
