56170 (11-32) - Toro Professional Rear-Engine Riding Mower (SN: 007000001 - 007999999) (1987) SEAT & STEERING WHEEL ASSEMBLY Parts Diagram

Professional Rear-Engine Riding Mower

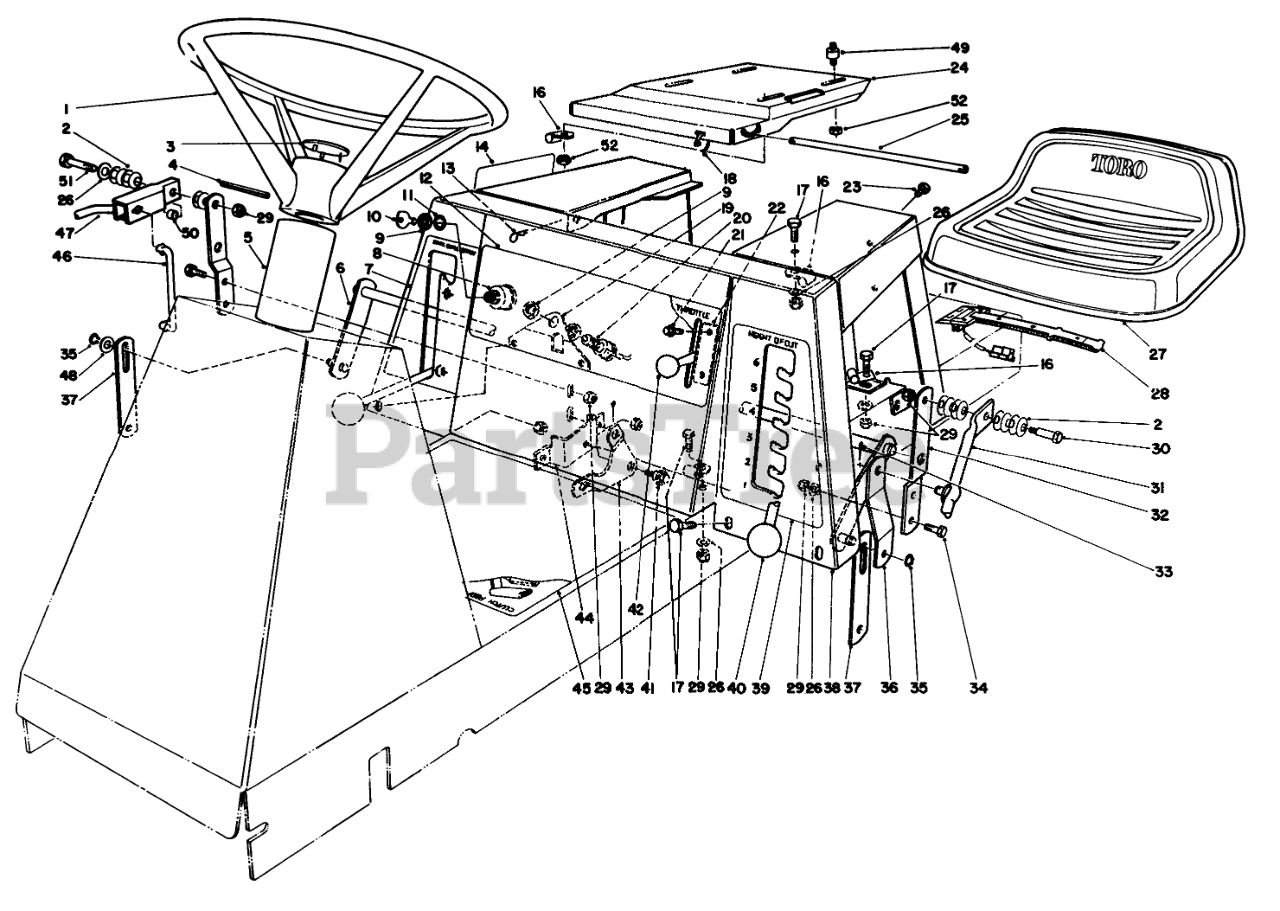

SEAT & STEERING WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 49-3240

Steering Wheel Assembly (Incl. Ref. #3)

$176.99

$

Usually ships in 3-6 days

0

2

Toro 3290-413

WASHER-BELLEVILLE

$4.99

$

Usually ships in 3-6 days

0

3

Toro 47-2070

Cap-Steering Wheel
(Superseded to 66-6910)

$11.99

$

Usually ships in 3-6 days

0

4

Toro 32121-78

PIN-ROLL

$3.49

$

In Stock, Qty 7

0

5

Toro 47-1980

STRG. SHAFT COVER

$42.99

$

Usually ships in 3-6 days

0

6

Toro 56-7400

Arm
(Superseded to 56-7400-03)

$

$

Not available

7

Toro 56-7840

DECK ENGAGE DECAL

$

$

Not available

8

Toro 23-0660

Switch-Ignition (Incl. Ref. #9-11)

$22.99

$

In Stock, only 1 left!

0

9

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

10

Toro 218-412

Key
(Superseded to 62-7770)

$4.99

$

In Stock, only 2 left!

0

11

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

12

Toro 56-7820

IGN & THROTTLE DECAL

$

$

Not available

13

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

14

Toro 44-7260

Decal Shift Pattern
(Superseded to 66-6780)

$

$

Not available

16

Toro 2412-68

CLAMP

$

$

Not available

17

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

19

Toro 56-7150

SWITCH MT BRKT

$20.99

$

Usually ships in 3-6 days

0

20

Toro 56-7640

Switch-Deck (Incl. Ref. #8)

$135.99

$

In Stock, only 2 left!

0

21

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

22

Toro 56-7220

Control-Throttle (Incl. Ref. #42)

$83.99

$

Usually ships in 3-6 days

0

23

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

24

Toro 56-7200

SEAT BASE RO

$

$

Not available

25

Toro 56-7210

SEAT BASE ROD

$

$

Not available

26

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

27

Toro 38-0840

Seat Assy. (Incl. Ref. #28)

$

$

Not available

28

Toro 38-1420

SWITCH-SEAT

$

$

Not available

29

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

30

Toro 28-0540

BOLT-SHOULDER

$12.99

$

In Stock, Qty 5

0

31

Toro 47-1850

HOC LEVER WA B

$

$

Not available

32

Toro 47-1840

Bracket
(Superseded to 47-1840-01)

$

$

Not available

33

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

34

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

35

Toro 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

36

Toro 56-7360

HOC ENGAGE BRKT R

$

$

Not available

37

Toro 56-7370

DECK SUSP LINK B
(Superseded to 63-5830-01)

$

$

Not available

38

Toro 56-7300

Body-Seat
(Superseded to 76-1500)

$

$

Not available

39

Toro 56-7830

HOC DECAL

$

$

Not available

40

Toro 233-48

KNOB

$12.99

$

Usually ships in 3-6 days

0

41

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 5

0

42

Toro 233-59

Knob
(Superseded to 233-25)

$5.49

$

In Stock, only 1 left!

0

43

Toro 56-7540

DECK ENGAGE BELLCRANK

$

$

Not available

44

Toro 56-7550

BELLCRANK MTG BRKT

$

$

Not available

45

Toro 56-7800

INSTRUCTION DECAL

$

$

Not available

46

Toro 56-7560

BELLCRANK LINK(PLTD)

$13.99

$

Usually ships in 3-6 days

0

47

Toro 61-4250

SHIFT LEVER WA B

$84.99

$

In Stock, only 1 left!

0

48

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

49

Toro 62-5480

ISOLATER-SEAT

$34.99

$

Usually ships in 3-6 days

0

50

Toro 61-4300

SPACER

$

$

Not available

51

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

52

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0
