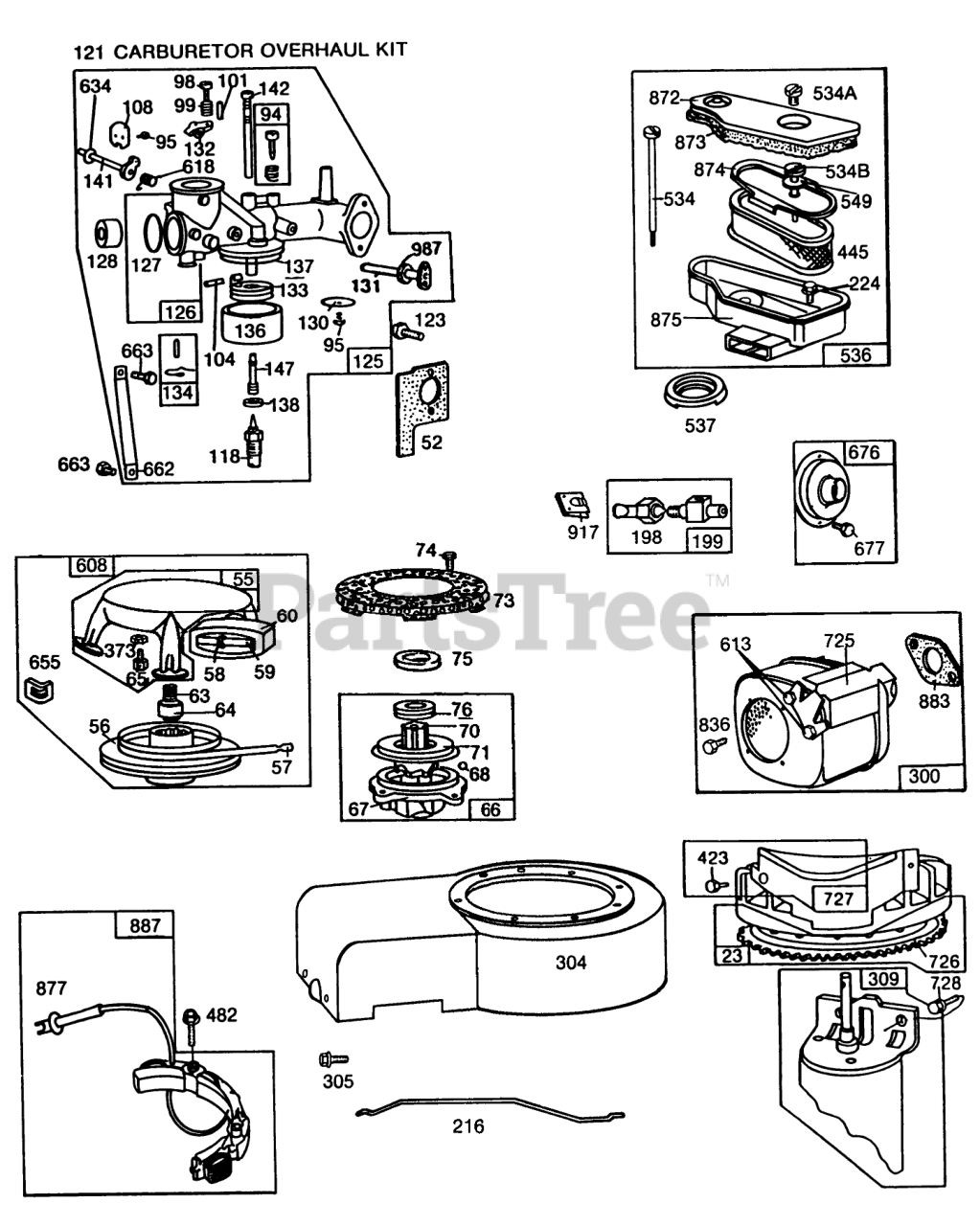

56170 (11-32) - Toro Professional Rear-Engine Riding Mower (SN: 007000001 - 007999999) (1987) ENGINE BRIGGS & STATTON MODEL NO. 253707-0195-01 11 H.P. REAR ENGINE RIDER ELECTRIC MODEL 56170 Parts Diagram

Professional Rear-Engine Riding Mower

ENGINE BRIGGS & STATTON MODEL NO. 253707-0195-01 11 H.P. REAR ENGINE RIDER ELECTRIC MODEL 56170 Parts Diagram

  • Title

23

Briggs & Stratton 391988

Flywheel and Ring Gear
(Superseded to 692048)

$193.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 270872

Gasket-Intake
(Superseded to 498869)

$5.49

$

In Stock, Qty 11

0

55

Briggs & Stratton 393576

Housing-Rewind Starter (Includes 63" Rope)

$85.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 295871

Pulley-Rewind

$14.99

$

In Stock, Qty 20+

0

57

Briggs & Stratton 490179

Spring-Rewind

$

$

Not available

58

Briggs & Stratton 66884

Rope-Rewind
(Superseded to 692188)

$8.49

$

In Stock, only 1 left!

0

59

Briggs & Stratton 230228

Pin-Starter Grip
(Superseded to 230228S)

$3.99

$

In Stock, only 4 left!

0

60

Briggs & Stratton 66728

Grip-Starter
(Superseded to 490652)

$5.49

$

In Stock, Qty 12

0

63

Briggs & Stratton 260414

Spring
(Superseded to 690547)

$8.49

$

In Stock, Qty 5

0

64

Briggs & Stratton 230543

Adapter
(Superseded to 691920)

$11.99

$

In Stock, Qty 5

0

65

Briggs & Stratton 93067

Screw
(Superseded to 691082)

$4.99

$

In Stock, only 1 left!

0

66

Briggs & Stratton 394558

Housing-Starter Clutch
(Superseded to 399671)

$34.99

$

In Stock, Qty 20+

0

67

Briggs & Stratton 394897

Ball-Clutch

$36.99

$

In Stock, only 2 left!

0

68

Briggs & Stratton 63770

Ball
(Superseded to 691604)

$

$

Not available

70

Briggs & Stratton 298799

Ratchet
(Superseded to 691945)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 221653

Washer
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

73

Briggs & Stratton 221796

Screen
(Superseded to 691754)

$31.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 93042

Screw
(Superseded to 691078)

$4.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 220865

Washer
(Superseded to 690582)

$4.49

$

In Stock, only 4 left!

0

76

Briggs & Stratton 68238

Washer
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

94

Briggs & Stratton 292681

Valve Assembly

$11.99

$

In Stock, only 1 left!

0

95

Briggs & Stratton 93499

Screw
(Superseded to 691437)

$3.99

$

In Stock, only 3 left!

0

98

Briggs & Stratton 91920

Screw
(Superseded to 691615)

$3.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 26157

Spring
(Superseded to 693942)

$8.99

$

Usually ships in 2-12 days

0

101

Briggs & Stratton 93043

Pin
(Superseded to 691616)

$4.49

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 230896

Pin-Float
(Superseded to 691775)

$3.99

$

In Stock, only 1 left!

0

108

Briggs & Stratton 222010

Valve

$7.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 396568

Valve Needle

$20.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 394698

Kit-Carburetor

$32.99

$

In Stock, Qty 14

0

123

Briggs & Stratton 93357

Screw
(Superseded to 690953)

$5.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 491026

Carburetor Assembly

$315.99

$

Usually ships in 2-12 days

0

126

Briggs & Stratton 391787

Body Assy.-Carburetor

$

$

Not available

127

Briggs & Stratton 221997

Plug

$4.99

$

In Stock, only 1 left!

0

128

Briggs & Stratton 211960

Venturi-Carburetor

$6.49

$

In Stock, only 1 left!

0

130

Briggs & Stratton 222433

Valve-Throttle

$9.49

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 491006

Shaft & Lever, Throttle

$21.99

$

In Stock, only 2 left!

0

132

Briggs & Stratton 211712

Stop-Thottle

$8.49

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 299707

Float-Carburetor

$

$

Not available

134

Briggs & Stratton 394681

Valve-Fuel Inlet

$7.99

$

In Stock, only 1 left!

0

136

Briggs & Stratton 221995

Bowl-Float

$8.99

$

In Stock, Qty 6

0

137

Briggs & Stratton 270511

Gasket-Bowl

$3.49

$

In Stock, Qty 20+

0

138

Briggs & Stratton 222014

Washer-Bowl
(Superseded to 690618)

$4.99

$

In Stock, Qty 10

0

141

Briggs & Stratton 390684

Shaft and Lever

$16.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 299740

Nozzle-Carburator

$15.99

$

In Stock, only 2 left!

0

147

Briggs & Stratton 231323

Screw

$24.99

$

Usually ships in 2-12 days

0

198

Briggs & Stratton 293934

Valve-Shut Off
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

199

Briggs & Stratton 390303

Outlet-Fuel Tank
(Superseded to 492649)

$

$

Not available

216

Briggs & Stratton 261610

Link-Choke

$

$

Not available

224

Briggs & Stratton 94018

Screw
(Superseded to 690859)

$3.99

$

In Stock, Qty 8

0

300

Briggs & Stratton 394180

Muffler-Exhaust
(Superseded to 691874)

$57.99

$

In Stock, only 3 left!

0

304

Briggs & Stratton 391556

Housing-Blower

$

$

Not available

305

Briggs & Stratton 93158

Screw
(Superseded to 692198)

$5.99

$

In Stock, Qty 12

0

309

Motor Starting (See Page 28)

$

$

Not available

373

Briggs & Stratton 92987

Nut
(Superseded to 690800)

$3.99

$

In Stock, Qty 13

0

423

Briggs & Stratton 93984

Screw
(Superseded to 691002)

$8.49

$

In Stock, only 2 left!

0

445

Briggs & Stratton 393725

Cartridge-Air Cleaner

$21.99

$

In Stock, only 2 left!

0

482

Briggs & Stratton 93621

Screw
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

534

Briggs & Stratton 93911

Screw-Air Cleaner

$10.99

$

Usually ships in 2-12 days

0

534A

Briggs & Stratton 93913

Screw-Cover Mtg.

$3.99

$

In Stock, only 1 left!

0

534B

Briggs & Stratton 93910

Screw-Air Cleaner

$13.99

$

Usually ships in 2-12 days

0

536

Briggs & Stratton 393749

Cleaner-Air

$179.99

$

Usually ships in 2-12 days

0

537

Briggs & Stratton 270853

Gasket-Air Cleaner

$9.49

$

In Stock, only 1 left!

0

549

Briggs & Stratton 270978

Washer-Air Cleaner

$5.49

$

In Stock, only 1 left!

0

608

Briggs & Stratton 390391

Rewind Starter
(Superseded to 693900)

$131.99

$

In Stock, Qty 9

0

613

Briggs & Stratton 93927

Screw
(Superseded to 691416)

$11.99

$

In Stock, Qty 14

0

618

Briggs & Stratton 261116

Spring Choke

$

$

Not available

634

Briggs & Stratton 270382

Washer
(Superseded to 691869)

$3.99

$

In Stock, only 3 left!

0

655

Briggs & Stratton 222598

Anchor Spring
(Superseded to 691734)

$4.99

$

Usually ships in 2-12 days

0

662

Briggs & Stratton 222311

Bracket-Carburetor
(Superseded to 224440)

$4.49

$

In Stock, only 1 left!

0

663

Briggs & Stratton 93572

Screw
(Superseded to 690664)

$5.49

$

In Stock, only 1 left!

0

676

Briggs & Stratton 396903

Deflector-Exhaust

$14.99

$

Usually ships in 2-12 days

0

677

Briggs & Stratton 93705

Screw
(Superseded to 690661)

$3.49

$

In Stock, Qty 9

0

725

Briggs & Stratton 223023

Shield-Heat
(Superseded to 690420)

$18.99

$

Usually ships in 2-12 days

0

726

Briggs & Stratton 392134

Gear-Ring (Includes mounting parts)
(Superseded to 696537)

$50.99

$

Usually ships in 2-12 days

0

727

Briggs & Stratton 395405

Cover-Starter

$

$

Not available

728

Briggs & Stratton 93535

Crew
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

836

Briggs & Stratton 93559

Screw
(Superseded to 690810)

$3.49

$

In Stock, only 3 left!

0

872

Briggs & Stratton 396966

Cover Group-Air Cleaner (Includes Gasket)

$51.99

$

Usually ships in 2-12 days

0

873

Briggs & Stratton 397971

Gasket-Air Cleaner Cover

$37.99

$

In Stock, only 1 left!

0

874

Briggs & Stratton 222898

Plate-Air Cleaner Cartridge

$21.99

$

Usually ships in 2-12 days

0

875

Briggs & Stratton 397321

Body-Air Cleaner

$49.99

$

In Stock, only 1 left!

0

877

Briggs & Stratton 393814

Diode Assy.

$18.99

$

In Stock, only 2 left!

0

883

Briggs & Stratton 270917

Gasket Exhaust
(Superseded to 692236)

$5.49

$

In Stock, Qty 20+

0

887

Briggs & Stratton 391529

Alternator
(Superseded to 592828)

$124.99

$

Usually ships in 2-12 days

0

917

Briggs & Stratton 223271

Valve Handle
(Superseded to 691737)

$7.49

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 398970

Seal-Throttle
(Superseded to 692279)

$3.99

$

In Stock, only 3 left!

0
