56170 (11-32) - Toro Professional Rear-Engine Riding Mower (SN: 005000001 - 005999999) (1985) FRONT TOWER ASSEMBLY Parts Diagram

Professional Rear-Engine Riding Mower

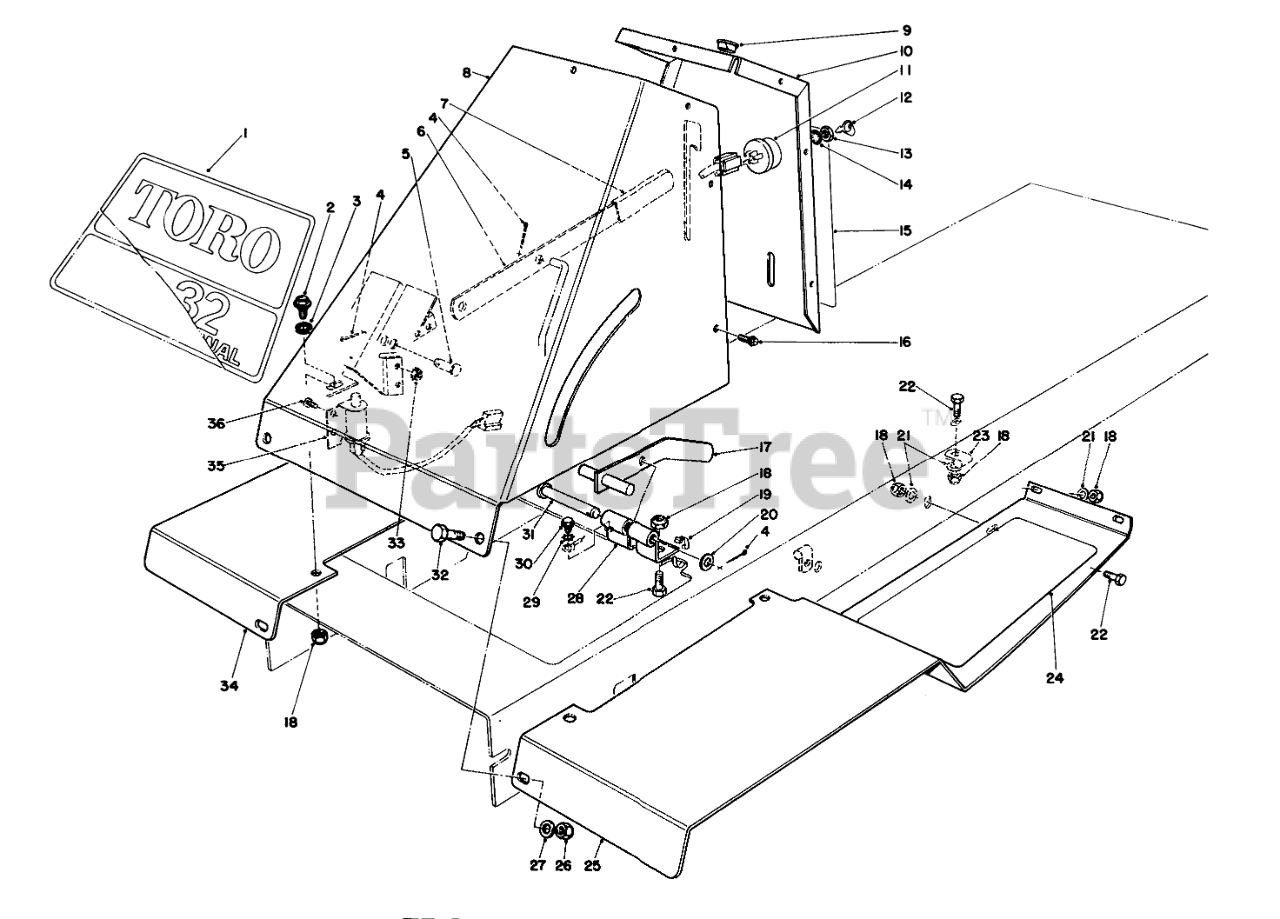

FRONT TOWER ASSEMBLY Parts Diagram

  • Title
1

Toro 53-8080

1132 TORO PROF DECAL

$

$

Not available

2

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

3

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 16

0

4

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

5

Toro 283-2

PIN-CLEVIS

$13.99

$

In Stock, only 2 left!

0

6

Toro 47-1060

ENGAGE LEVER B

$

$

Not available

7

$15.99

$

Usually ships in 3-6 days

0

8

Toro 47-1520

Tower-Front

$

$

Not available

9

Toro 256-275

NYLINER #12L1-FF TYPE 7

$

$

Not available

10

Toro 47-1210

REAR TOWER R

$

$

Not available

11

Toro 23-0660

SWITCH-STARTER

$23.99

$

In Stock, Qty 5

0

12

Toro 218-412

Key
(Superseded to 62-7770)

$4.99

$

In Stock, Qty 20+

0

13

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

14

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 20+

0

15

Toro 47-0200

DECAL-ENGAGE

$

$

Not available

16

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

17

Toro 47-1290

PARKING BRAKE WA B

$

$

Not available

18

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

19

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

20

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

22

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

23

Toro 2412-68

CLAMP

$

$

Not available

24

Toro 47-1440

FOOT TREAD L.H.

$

$

Not available

25

Toro 47-0940

Footrest-LH
(Superseded to 47-0940-01)

$

$

Not available

26

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 20+

0

27

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 47-2060

Bracket-Parking Brake
(Superseded to 47-2060-03)

$

$

Not available

29

Toro 3254-2

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

30

Toro 32104-82

SCREW-HHF

$5.49

$

Usually ships in 3-6 days

0

31

Toro 283-52

PIN-CLEVIS

$12.99

$

Usually ships in 3-6 days

0

32

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

33

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, Qty 20+

0

34

Toro 47-0930

Footrest-RH.
(Superseded to 47-0930-01)

$

$

Not available

35

Toro 28-4450

DECK INTERLOCK SWITCH

$

$

Not available

36

Toro 3252-2

10-24 X 1/2 FIL HD MS

$2.49

$

In Stock, Qty 5

0
