56165 (10-32) - Toro Rear-Engine Riding Mower (SN: 000000001 - 000999999) (1990) TRANSMISSION LINKAGE ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

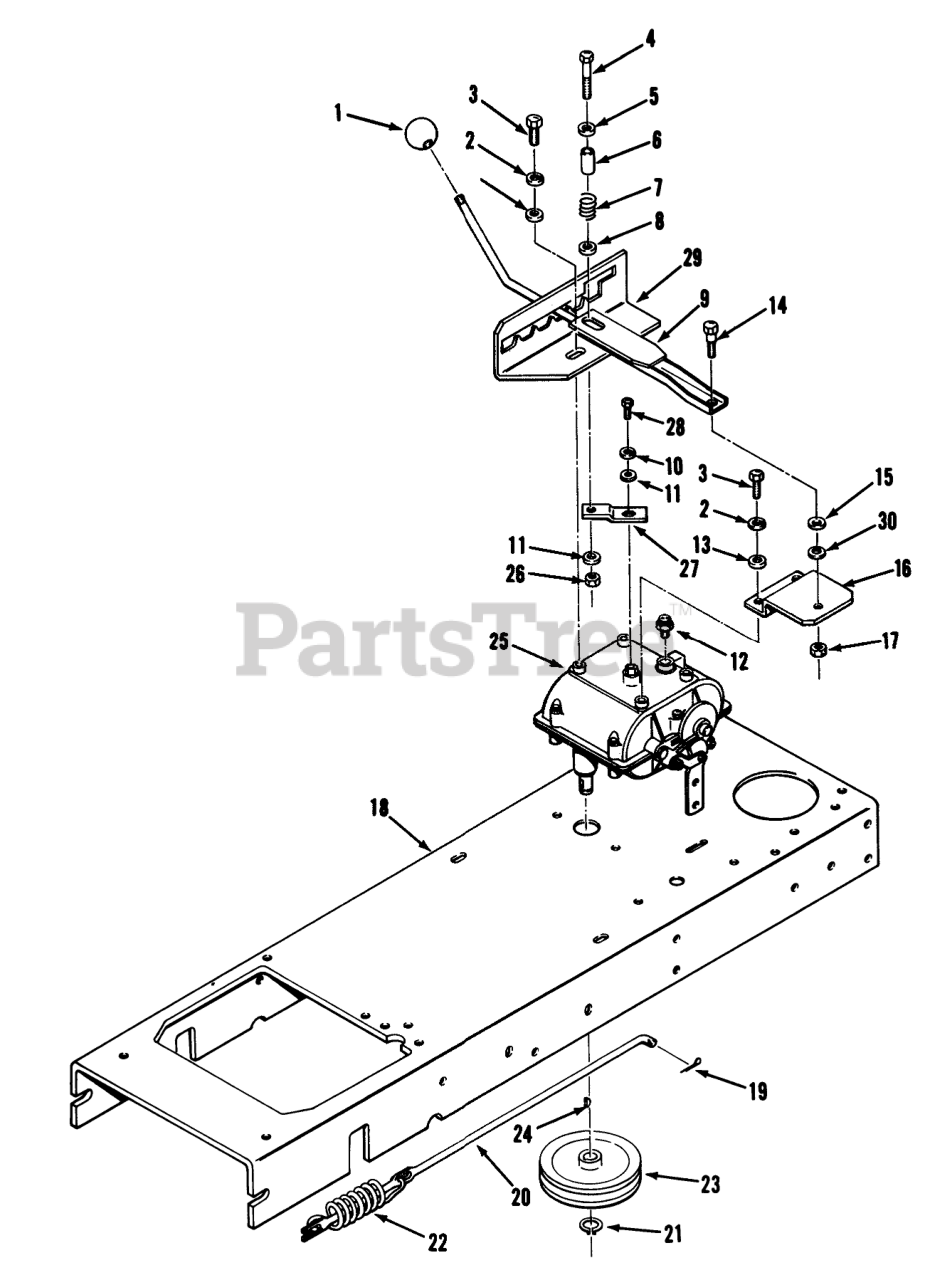

TRANSMISSION LINKAGE ASSEMBLY Parts Diagram

  • Title

1

Toro 233-48

KNOB

$13.99

$

Usually ships in 3-6 days

0

2

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

3

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

4

Toro 321-15

SCREW-HH

$1.49

$

In Stock, Qty 11

0

5

Toro 3256-55

WASHER-FLAT

$5.49

$

In Stock, only 1 left!

0

6

Toro 56-7740

SPACER-SPLIT

$6.49

$

Usually ships in 3-6 days

0

7

Toro 56-7730

SPRING-COMPRESSION

$18.99

$

Usually ships in 3-6 days

0

8

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

9

Toro 56-7600

SHIFT LEVER WA B
(Superseded to 56-7600-03)

Note: Used on: 8-32 Rider Before Serial Number 0001500, 10-32 Rider Before Serial Number 0000858, 12-32 Rider Before Serial Number 0002025

$90.99

$

Usually ships in 3-6 days

0

Toro 76-3980

Lever-Shift
(Superseded to 76-3980-03)

Note: Used on: 8-32 Rider Serial Number 0001500 And UP, 10-32 Rider Serial Number 0000858 And UP, 12-32 Rider Serial Number 0002025 And UP

$

$

Not available

10

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

11

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 28-4250

NEUTRAL SWITCH

$46.99

$

Usually ships in 3-6 days

0

13

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

14

Toro 19-1470

SCREW-SHOULDER

Note: Used on: 8-32 Rider Before Serial Number 0001500, 10-32 Rider Before Serial Number 0000858, 12-32 Rider Before Serial Number 0002025

$3.99

$

In Stock, Qty 5

0

Toro 321-8

SCREW-HH

Note: Used on: 8-32 Rider Serial Number 0001500 And UP, 10-32 Rider Serial Number 0000858 And UP, 12-32 Rider Serial Number 0002025 And UP

$3.99

$

In Stock, Qty 9

0

15

Toro 3290-413

WASHER-BELLEVILLE

$5.49

$

Usually ships in 3-6 days

0

16

Toro 56-7610

SHIFT MTG BRKT

$

$

Not available

17

Toro 3296-29

NUT-LOCK, NI

Note: Used on: 8-32 Rider Before Serial Number 0001500, 10-32 Rider Before Serial Number 0000858, 12-32 Rider Before Serial Number 0002025

$2.49

$

In Stock, Qty 20+

0

Toro 32152-4

NUT-LOCK, CONE

Note: Used on: 8-32 Rider Serial Number 0001500 And UP, 10-32 Rider Serial Number 0000858 And UP, 12-32 Rider Serial Number 0002025 And UP

$1.49

$

In Stock, only 2 left!

0

18

Toro 56-7160

Frame-Main

$

$

Not available

19

Toro 3272-16

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

20

Toro 56-7060

BRAKE ROD

$51.99

$

Usually ships in 3-6 days

0

21

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, only 2 left!

0

22

Toro 57-9940

SPRING-EXT

$

$

Not available

23

Toro 7-4035

Clutch Rod

$

$

Currently unavailable

24

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, only 4 left!

0

25

Toro 47-1530

TRANSMISSION

$

$

Not available

26

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 2 left!

0

27

Toro 56-7620

LEVER-SHIFT

$

$

Not available

28

Toro 329-4

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

29

Toro 56-7630

Gate-Shift
(Superseded to 99-2970-03)

$38.99

$

Usually ships in 3-6 days

0

30

Toro 76-3970

SPACER-PIVOT

Note: Used on: 8-32 Rider Serial Number 0001500 And UP, 10-32 Rider Serial Number 0000858 And UP, 12-32 Rider Serial Number 0002025 And UP

$

$

Not available
