56155 (11-32) - Toro Rear-Engine Riding Mower (SN: 007000001 - 007999999) (1987) EASY-EMPTY GRASS CATCHER MODEL 59111 (OPTIONAL) Parts Diagram

Rear-Engine Riding Mower

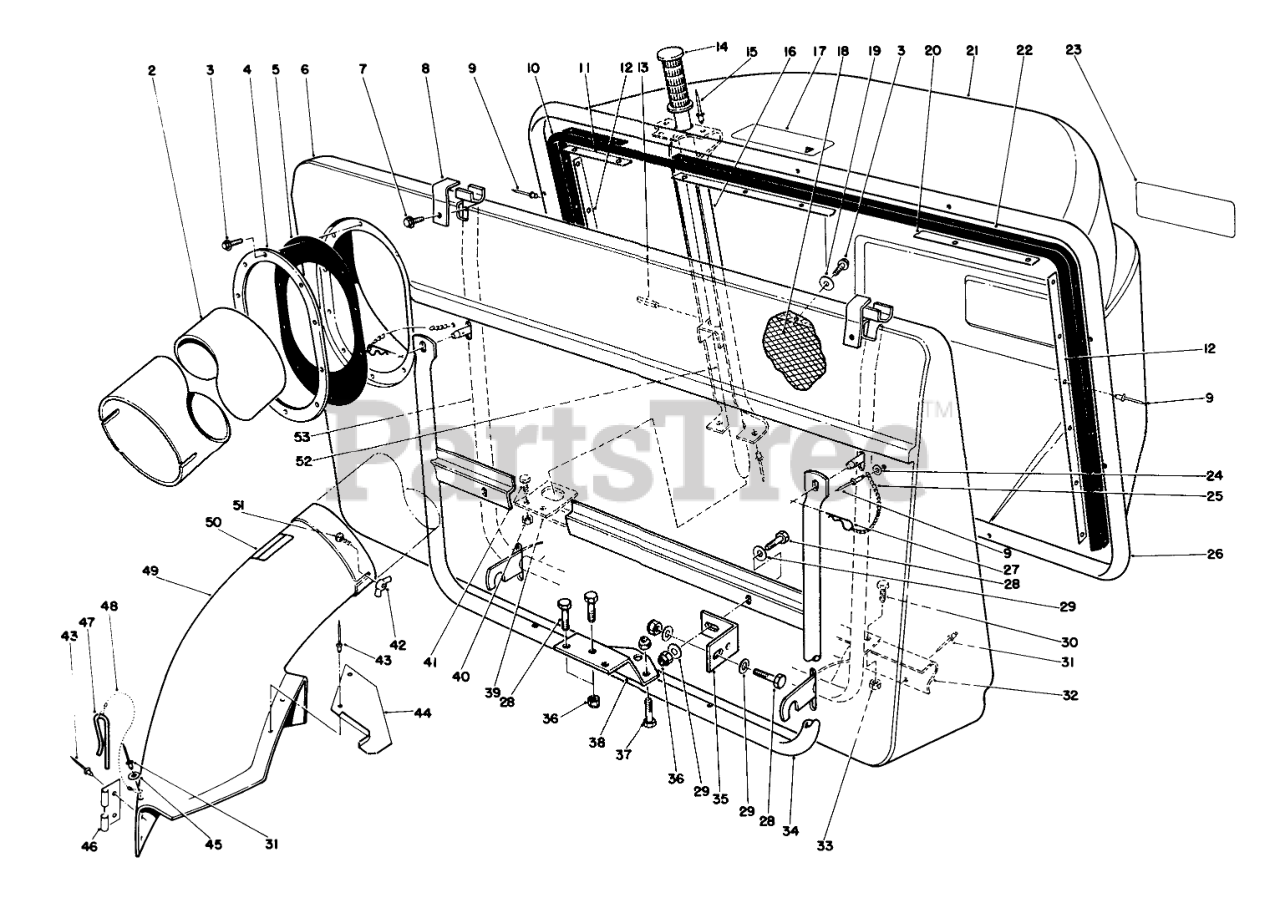

EASY-EMPTY GRASS CATCHER MODEL 59111 (OPTIONAL) Parts Diagram

  • Title

2

Toro 47-7210

TUBE(ROUND&LONG)

$

$

Not available

3

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

4

Toro 28-7760

RING-RETAINING

$

$

Not available

5

Toro 28-7770

RING-RETAINER, RUBBER

$156.99

$

Usually ships in 3-6 days

0

6

Toro 28-7810

Bag Front

$

$

Not available

7

Toro 32104-60

SCREW-HWH

$0.99

$

Usually ships in 3-6 days

0

8

Toro 28-7700

RETNR PIVOT BRKT

$

$

Not available

9

Toro 3290-415

RIVET

$0.99

$

Usually ships in 3-6 days

0

10

Toro 36-2520

RH BAG SEAL

$160.99

$

Usually ships in 3-6 days

0

11

Toro 29-5540

RETNR TOP EXT.

$

$

Not available

12

Toro 29-5550

BAG RETNR EXT.

$

$

Not available

13

Toro 32121-79

PIN-ROLL

$13.99

$

Usually ships in 3-6 days

0

14

Toro 233-40

GRIP

$

$

Not available

15

Toro 3290-409

RIVET

$0.99

$

Usually ships in 3-6 days

0

16

Toro 38-2920

DUMP HDLE CHANL WA

$

$

Not available

17

Toro 55-7270

Decal Warning
(Superseded to 46-2850)

$

$

Not available

18

Toro 28-7840

Screen Bag
(Superseded to 28-7840-03)

$263.99

$

Usually ships in 3-6 days

0

19

Toro 3256-61

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

20

Toro 62-4230

EXTRUSION BAG RETAINER

$

$

Not available

21

Toro 36-2120

REAR GRASS BASKET

$

$

Not available

22

Toro 36-2530

Seal-Bag LH.

$

$

Not available

23

Toro 25-2200

EASY EMPTY BAG DECAL
(Superseded to 92-1754)

$

$

Not available

24

Toro 5-1254

WASHER

$

$

Not available

25

Toro 2830-10

10 LINK CHAIN W/O HOOK

$

$

Not available

26

Toro 28-7670

BAG SUPT ASM FRM

$

$

Not available

27

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

28

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

29

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

30

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

31

Toro 3290-282

RIVET-BLIND

$0.99

$

In Stock, Qty 8

0

32

Toro 28-7830

FRAME SUPT BRKT B

$

$

Not available

33

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

34

Toro 28-7780

BAG SUPPORT WA

$

$

Not available

35

Toro 56-7190

MTG BRACKET

$

$

Not available

36

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

37

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

38

Toro 51-2970

MTG PLATE B

$

$

Not available

39

Toro 28-7820

Hanger-Frame Lower

$

$

Not available

40

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 6

0

41

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

42

Toro 32103-14

NUT-WING SPECL

$15.99

$

In Stock, only 1 left!

0

43

Toro 3290-412

RIVET-BLIND

$3.49

$

In Stock, only 4 left!

0

44

Toro 33-2090

CHUTE SUPT BRKT

$

$

Not available

45

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, Qty 8

0

46

Toro 28-8050

BRACKET-MOUNTING, CHUTE

$25.99

$

Usually ships in 3-6 days

0

47

Toro 28-8130

PIN-LOCKING, CHUTE

$12.99

$

Usually ships in 3-6 days

0

48

Toro 28-8070

LANYARD

$16.99

$

Usually ships in 3-6 days

0

49

Toro 28-8060

Chute Assembly (Incl. Ref. #31, 41-50)

$

$

Not available

50

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

51

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

52

Toro 29-5470

DUMP HANDLE ASM

$199.99

$

In Stock, only 1 left!

0

53

Toro 28-7710

Bag Frame

$

$

Not available
