56155 (11-32) - Toro Rear-Engine Riding Mower (SN: 006000001 - 006999999) (1986) TWIN BAGGER GRASS CATCHER MODEL NO. 59122 (OPTIONAL) Parts Diagram

Rear-Engine Riding Mower

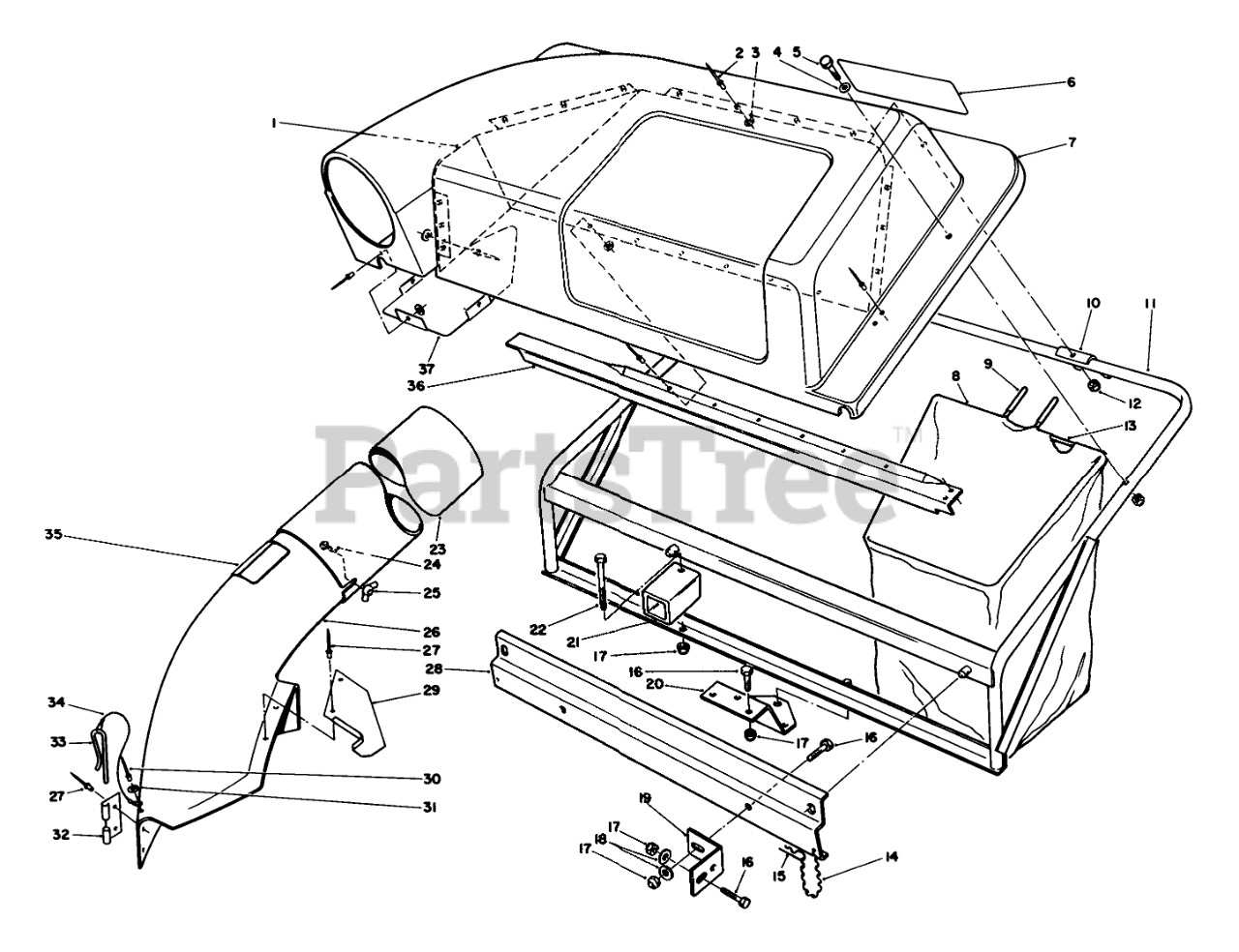

TWIN BAGGER GRASS CATCHER MODEL NO. 59122 (OPTIONAL) Parts Diagram

  • Title
1

Toro 36-4230

Screen Cover

$

$

Not available

2

Toro 3269-4

RIVET-POP

$1.49

$

In Stock, only 1 left!

0

3

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

5

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Toro 47-6890

TWIN BAGGER DECAL

$

$

Not available

7

Toro 47-2190

Cover

$

$

Not available

8

Toro 47-2560

Bag-Twin Bagger (Incl. Ref. #9 & 13)

$285.99

$

Usually ships in 3-6 days

0

9

Toro 47-2550

GRIP-HANDLE, BAG

$4.99

$

Usually ships in 3-6 days

0

10

Toro 47-2580

BAG FRAME BRKT

$

$

Not available

11

Toro 47-2630

Frame

$

$

Not available

12

Toro 32111-8

NUT-LOCK, CAP

$3.99

$

Usually ships in 3-6 days

0

13

Toro 47-2620

Frame-Bag
(Superseded to 47-2620-03)

$90.99

$

In Stock, only 4 left!

0

14

Toro 2830-9

6-LINK CHAIN W/HOOK

$

$

Not available

15

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

16

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

19

Toro 56-7190

MTG BRACKET

$

$

Not available

20

Toro 51-2970

MTG PLATE B

$

$

Not available

21

Toro 51-2960

FRAME SUPT TUBE B

$

$

Not available

22

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

23

Toro 47-7210

TUBE(ROUND&LONG)

$

$

Not available

24

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

25

Toro 32103-14

NUT-WING SPECL

$15.99

$

In Stock, only 1 left!

0

26

Toro 28-8060

Chute Assembly (Incl. Ref. #27, 29-35)

$

$

Not available

27

Toro 3290-412

RIVET-BLIND

$3.49

$

In Stock, only 4 left!

0

28

Toro 36-4550

Bracket Frame Support

$

$

Not available

29

Toro 33-2090

CHUTE SUPT BRKT

$

$

Not available

30

Toro 3290-282

RIVET-BLIND

$0.99

$

In Stock, Qty 8

0

31

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, Qty 8

0

32

Toro 28-8050

BRACKET-MOUNTING, CHUTE

$25.99

$

Usually ships in 3-6 days

0

33

Toro 28-8130

PIN-LOCKING, CHUTE

$12.99

$

Usually ships in 3-6 days

0

34

Toro 28-8070

LANYARD

$16.99

$

Usually ships in 3-6 days

0

35

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

36

Toro 47-2650

SCREEN SUPT BRKT B

$

$

Not available

37

Toro 47-6760

Shield Cover

$

$

Not available
