56155 (11-32) - Toro Rear-Engine Riding Mower (SN: 006000001 - 006999999) (1986) ENGINE BRIGGS & STRATTON MODEL NO. 252707-0621-01 Parts Diagram

Rear-Engine Riding Mower

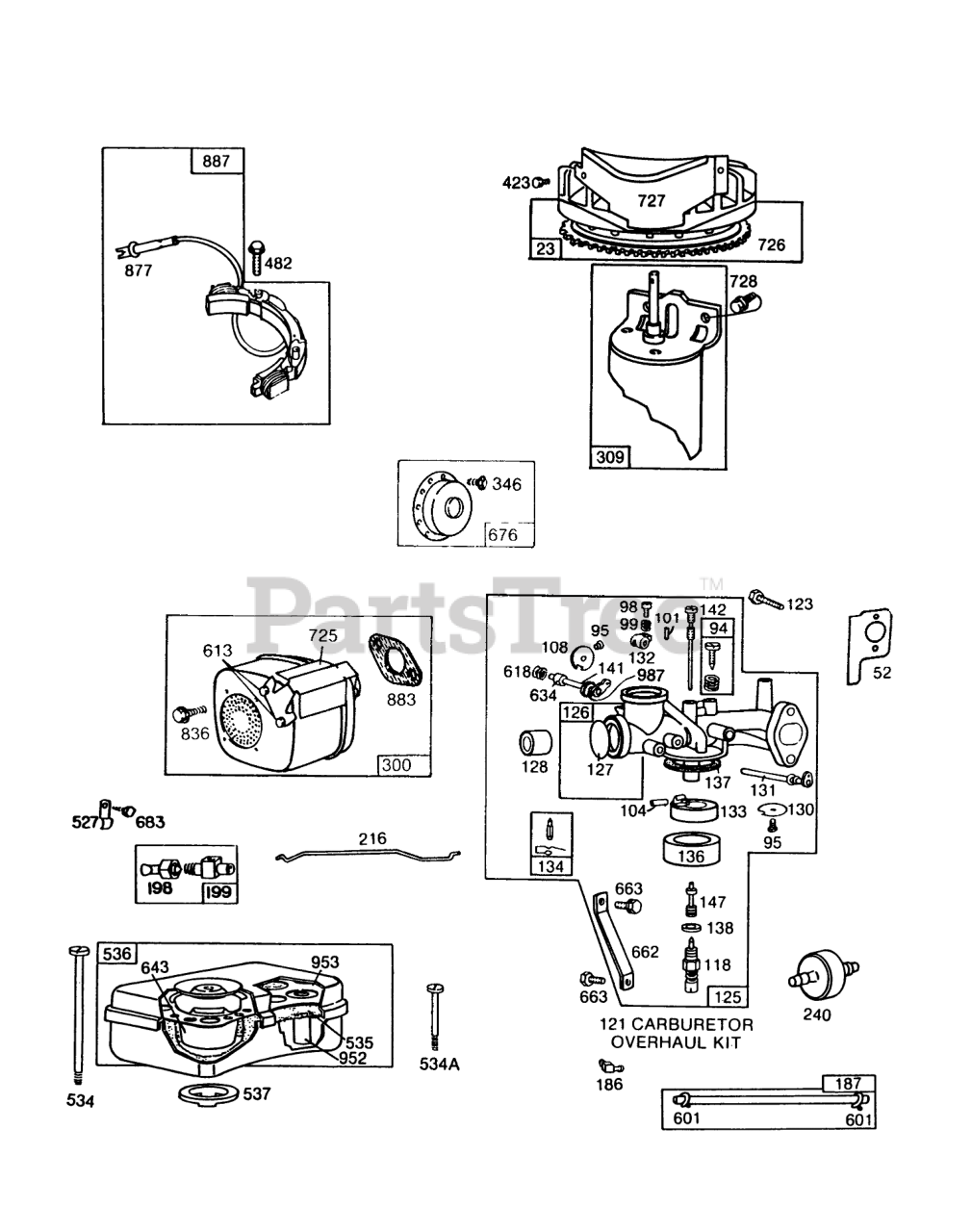

ENGINE BRIGGS & STRATTON MODEL NO. 252707-0621-01 Parts Diagram

  • Title

23

Briggs & Stratton 391988

Flywheel and Ring Gear
(Superseded to 692048)

$

$

Not available

52

Briggs & Stratton 270872

Gasket-Intake
(Superseded to 498869)

Note: Indicates items included in gasket set part no. 393411.

$5.49

$

In Stock, Qty 10

0

94

Briggs & Stratton 292681

Valve Assembly

Note: Included in Carburetor Overhaul Kit-Part No. 299852.

$11.99

$

In Stock, only 1 left!

0

95

Briggs & Stratton 93499

Screw
(Superseded to 691437)

$3.99

$

In Stock, only 3 left!

0

98

Briggs & Stratton 91920

Screw
(Superseded to 691615)

$3.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 26157

Spring
(Superseded to 693942)

$8.99

$

Usually ships in 2-12 days

0

101

Briggs & Stratton 93043

Pin
(Superseded to 691616)

$4.49

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 230896

Pin-Float
(Superseded to 691775)

Note: Included in Carburetor Overhaul Kit-Part No. 299852.

$3.99

$

In Stock, only 1 left!

0

108

Briggs & Stratton 222010

Valve

$7.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 396568

Valve Needle

Note: Included in Carburetor Overhaul Kit-Part No. 299852.

$20.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 299852

Carburetor OverhauI Kit

$

$

Not available

123

Briggs & Stratton 93357

Screw
(Superseded to 690953)

$5.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 393410

Carburetor Assembly
(Superseded to 491026)

$315.99

$

Usually ships in 2-12 days

0

126

Briggs & Stratton 391787

Body Assy.-Carburetor

$

$

Not available

127

Briggs & Stratton 221997

Plug

Note: Included in Carburetor Overhaul Kit-Part No. 299852.

$4.99

$

In Stock, only 1 left!

0

128

Briggs & Stratton 211960

Venturi-Carburetor

$6.49

$

In Stock, only 1 left!

0

130

Briggs & Stratton 222433

Valve-Throttle

$9.49

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 490017

Shaft and Lever-Throttle
(Superseded to 491006)

$21.99

$

In Stock, only 2 left!

0

132

Briggs & Stratton 211712

Stop-Thottle

$8.49

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 299707

Float-Carburetor

$

$

Not available

134

Briggs & Stratton 394681

Valve-Fuel Inlet

Note: Included in Carburetor Overhaul Kit-Part No. 299852.

$7.99

$

In Stock, only 3 left!

0

136

Briggs & Stratton 221995

Bowl-Float

$8.99

$

In Stock, only 4 left!

0

137

Briggs & Stratton 270511

Gasket-Bowl

Note: Included in Carburetor Overhaul Kit-Part No. 299852.

$3.49

$

In Stock, Qty 17

0

138

Briggs & Stratton 222014

Washer-Bowl
(Superseded to 690618)

Note: Included in Carburetor Overhaul Kit-Part No. 299852.

$4.99

$

In Stock, Qty 9

0

141

Briggs & Stratton 390684

Shaft and Lever

$16.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 299740

Nozzle-Carburator

Note: Included in Carburetor Overhaul Kit-Part No. 299852.

$15.99

$

In Stock, only 2 left!

0

147

Briggs & Stratton 231323

Screw

$24.99

$

Usually ships in 2-12 days

0

186

Briggs & Stratton 67218

Connector-Fuel
(Superseded to 691609)

$7.49

$

In Stock, Qty 7

0

187

Briggs & Stratton 393815

Line-Vacuum
(Superseded to 791880)

$11.99

$

Usually ships in 2-12 days

0

198

Briggs & Stratton 293934

Valve-Shut Off
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

199

Briggs & Stratton 390303

Outlet-Fuel Tank
(Superseded to 492649)

$

$

Not available

216

Briggs & Stratton 261610

Link-Choke

$

$

Not available

240

Briggs & Stratton 298090

Filter
(Superseded to 298090S)

$

$

Not available

300

Toro 394150

Muffler-Exhaust

$

$

Currently unavailable

309

Motor-Starting (12 Volt) See Chart for Replacement Parts for Starting Motor

$

$

Not available

346

Briggs & Stratton 93705

Screw
(Superseded to 690661)

$3.49

$

In Stock, Qty 8

0

423

Briggs & Stratton 93984

Screw
(Superseded to 691002)

$8.49

$

In Stock, only 2 left!

0

482

Briggs & Stratton 93621

Screw
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

527

Briggs & Stratton 221428

Clamp
(Superseded to 690394)

$4.99

$

Usually ships in 2-12 days

0

534

Briggs & Stratton 93622

Screw Air Cleaner

$6.49

$

In Stock, Qty 10

0

534A

Briggs & Stratton 93323

Screw-AirCleaner

$7.49

$

In Stock, only 1 left!

0

535

Briggs & Stratton 270843

Element-Air Cleaner
(Superseded to 270843S)

$17.99

$

In Stock, only 2 left!

0

536

Briggs & Stratton 391786

Cleaner Assembly-Air

$

$

Not available

537

Briggs & Stratton 270853

Gasket-Air Cleaner

$9.49

$

In Stock, only 1 left!

0

601

Briggs & Stratton 93053

Clamp-Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

613

Briggs & Stratton 93927

Screw
(Superseded to 691416)

$11.99

$

In Stock, Qty 12

0

618

Briggs & Stratton 261116

Spring Choke

$

$

Not available

634

Briggs & Stratton 270382

Washer
(Superseded to 691869)

$3.99

$

In Stock, only 3 left!

0

643

Briggs & Stratton 222380

Cup-Air Cleaner Support

$16.99

$

Usually ships in 2-12 days

0

662

Briggs & Stratton 222311

Bracket-Carburetor
(Superseded to 224440)

$4.49

$

In Stock, only 1 left!

0

663

Briggs & Stratton 93572

Screw
(Superseded to 690664)

$5.49

$

In Stock, only 2 left!

0

676

Toro 223372

Deflector Muffler

$

$

Currently unavailable

683

Briggs & Stratton 93572

Screw
(Superseded to 690664)

$5.49

$

In Stock, only 2 left!

0

725

Briggs & Stratton 223023

Shield-Heat
(Superseded to 690420)

$18.99

$

Usually ships in 2-12 days

0

726

Briggs & Stratton 392134

Gear-Ring (Includes Mtg. Parts)
(Superseded to 696537)

$50.99

$

Usually ships in 2-12 days

0

727

Briggs & Stratton 395405

Cover and Starter (Includes Mounting Screws)

$

$

Not available

728

Briggs & Stratton 93535

Crew
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

836

Briggs & Stratton 93559

Screw
(Superseded to 690810)

$3.49

$

In Stock, only 2 left!

0

877

Briggs & Stratton 393814

Diode Assy.

$18.99

$

In Stock, only 2 left!

0

883

Briggs & Stratton 270917

Gasket Exhaust
(Superseded to 692236)

$5.49

$

In Stock, Qty 20+

0

887

Briggs & Stratton 391529

Alternator
(Superseded to 592828)

$124.99

$

Usually ships in 2-12 days

0

952

Briggs & Stratton 222495

Spacer-Air Cleaner

$3.49

$

Usually ships in 2-12 days

0

953

Briggs & Stratton 222382

Screen-Air Cleaner

$9.49

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 398970

Seal-Throttle
(Superseded to 692279)

$3.99

$

In Stock, only 3 left!

0
