56155 (11-32) - Toro Rear-Engine Riding Mower (SN: 004000001 - 004999999) (1984) BRAKE & CLUTCH ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

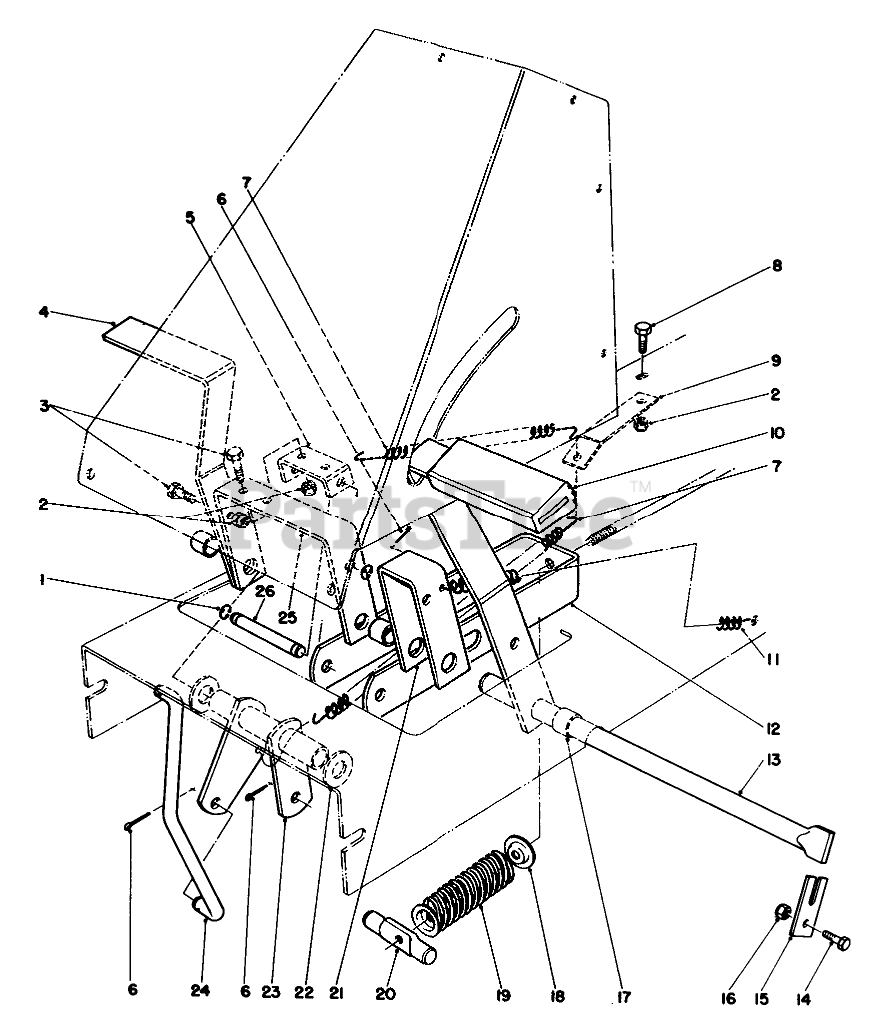

BRAKE & CLUTCH ASSEMBLY Parts Diagram

  • Title

1

Toro 32120-18

E-RING

$1.49

$

In Stock, only 3 left!

0

2

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 12

0

3

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

4

Toro 47-0540

Pedal
(Superseded to 47-0540-03)

$

$

Not available

5

Toro 47-1380

Bracket-Brake

$

$

Not available

6

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

7

Toro 27-8960

TRACTION SPRING

$

$

Not available

8

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 47-1310

Bracket-Spring Retaining

$

$

Not available

10

Toro 47-1570

Pad-Foot Pedal
(Superseded to 65-2920)

$40.99

$

Usually ships in 3-6 days

0

11

Toro 12-8810

SPRING-EXTENSION

$28.99

$

Usually ships in 3-6 days

0

12

Toro 47-1180

Bracket-Engagement
(Superseded to 47-1180-01)

$

$

Not available

13

Toro 47-0770

SHAFT-PEDAL PIVOT

$

$

Not available

14

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 47-0780

RETAINER-SHAFT

$

$

Not available

16

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 6

0

17

Toro 47-0570

SPACER-PEDAL

$

$

Not available

18

Toro 47-1140

RETAINER-SPR. TOP

$

$

Not available

19

Toro 47-0960

SPRING-COMPRESSION

$

$

Not available

20

Toro 47-1200

SHAFT-DECK ADJ.

$

$

Not available

21

Toro 47-0560

Bracket-Clutch Pedal
(Superseded to 47-0560-03)

$

$

Not available

22

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 5

0

23

Toro 47-1040

Tube-Pivot

$

$

Not available

24

Toro 47-1050

Arm-Engagement

$

$

Not available

25

Toro 47-0550

Bracket-Brake Pedal
(Superseded to 47-0550-03)

$

$

Not available

26

Toro 47-1230

Pin-Clevis

$

$

Not available
