56150 (8-32) - Toro Professional Rear-Engine Riding Mower (SN: 007000001 - 007999999) (1987) ENGINE ASSEMBLY Parts Diagram

Professional Rear-Engine Riding Mower

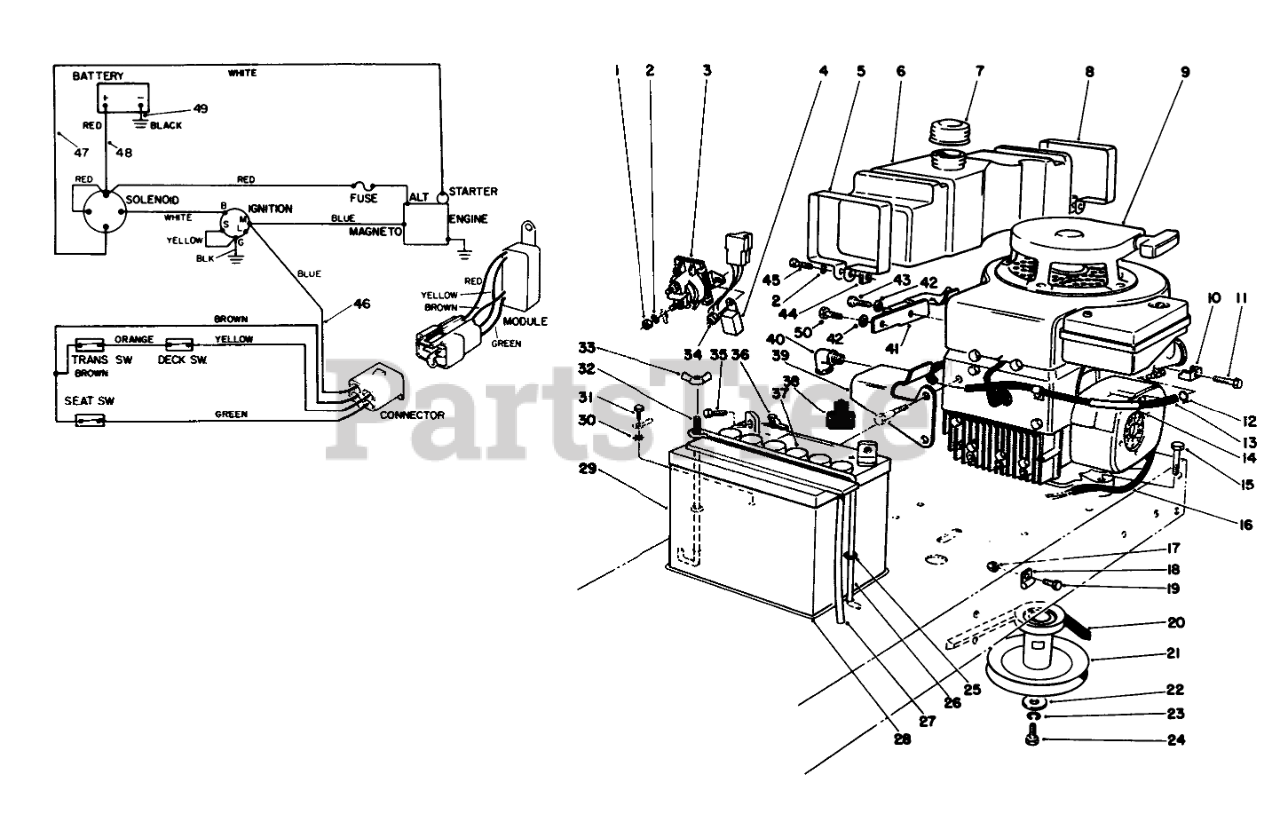

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

2

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

3

Toro 47-1910

SOLENOID
(Superseded to 740207)

$34.99

$

In Stock, Qty 6

0

4

Toro 39-6520

INTERLOCK MODULE

$

$

Not available

5

Toro 57-4060

Retainer-Front
(Superseded to 57-4060-03)

$35.99

$

Usually ships in 3-6 days

0

6

Toro 56-7050

TANK-5 QT GAS

$168.99

$

In Stock, only 1 left!

0

7

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 12

0

8

Toro 57-4070

Retainer-Rear
(Superseded to 57-4070-03)

$

$

Not available

9

Toro 56-7780

Engine-8 H.P. (Model 56150)

$

$

Not available

Toro 56-7790

Engine-11 H.P. (Model 56170)

$

$

Currently unavailable

10

Toro 2210-249

CLAMP-CASING

$3.49

$

Usually ships in 3-6 days

0

11

Toro 2210-248

SCREW W ENGINE

$

$

Not available

12

Toro 2210-185

FUEL HOSE CLAMP

$1.49

$

In Stock, only 4 left!

0

13

Toro 47-2986

HOSE-FUEL

$

$

Not available

Toro 47-2987

FUEL HOSE

$18.99

$

Usually ships in 3-6 days

0

14

Toro 62-5490

SUPPORT-FUEL LINE

$

$

Not available

15

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Toro 57-4150

HEAT SHRINK TUBING

$

$

Not available

17

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

18

Toro 2412-68

CLAMP

$

$

Not available

19

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Toro 47-1410

V-BELT, TRACTION

$27.99

$

In Stock, only 2 left!

0

21

Toro 47-1960

PULLEY

$435.99

$

Usually ships in 3-6 days

0

22

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

23

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

24

Toro 62-3760

SCREW-HH

$9.99

$

Usually ships in 3-6 days

0

25

Toro 237-143

O-RING

$1.99

$

Usually ships in 3-6 days

0

26

Toro 56-7710

HOLDDOWN-BATTERY

$19.99

$

In Stock, only 2 left!

0

27

Toro 56-2540

TUBE-BATT DRAIN/80-2600

$4.49

$

In Stock, only 1 left!

0

28

Toro 62-4300

PAD-SKID, ANTI

$18.99

$

Usually ships in 3-6 days

0

29

Toro 56-7700

Battery
(Superseded to 105-1692)

$

$

Not available

30

Toro 3254-2

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

31

Toro 32104-82

SCREW-HHF

$4.99

$

Usually ships in 3-6 days

0

32

Toro 56-7720

POST-BATTERY
(Superseded to 100-6435)

$18.99

$

Usually ships in 3-6 days

0

33

Toro 32103-12

NUT-WING

$1.49

$

In Stock, only 3 left!

0

34

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 6

0

35

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

36

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 17

0

37

Toro 218-560

CAP-BATTERY

$

$

Not available

38

Toro 28-8080

BOOT-TERMINAL

$23.99

$

Usually ships in 3-6 days

0

39

Toro 57-4040

FRT TANK MTG BRKT B

$

$

Not available

Toro 56-4390

BRACKET B

$

$

Not available

40

Toro 2811-10

ELBOW-STREET, 90 DEG

$15.99

$

Usually ships in 3-6 days

0

41

Toro 57-4050

REAR TANK MTG BRKT B

$

$

Not available

42

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

43

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

44

Toro 32107-11

NUT-SQUARE

$0.99

$

Usually ships in 3-6 days

0

45

Toro 3274-51

SCREW-HSH

$0.99

$

Usually ships in 3-6 days

0

46

Toro 56-7690

WIRE HARNESS

$117.99

$

Usually ships in 3-6 days

0

47

Toro 56-7660

STARTER WIRE HARNESS

$

$

Not available

48

Toro 56-7670

WIRE ASM

$26.99

$

In Stock, only 2 left!

0

49

Toro 56-7870

WIRE ASM(BATT/GRD.

$26.99

$

Usually ships in 3-6 days

0

50

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0
