56145 (8-32) - Toro Rear-Engine Riding Mower (SN: 007000001 - 007999999) (1987) REAR AXLE ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

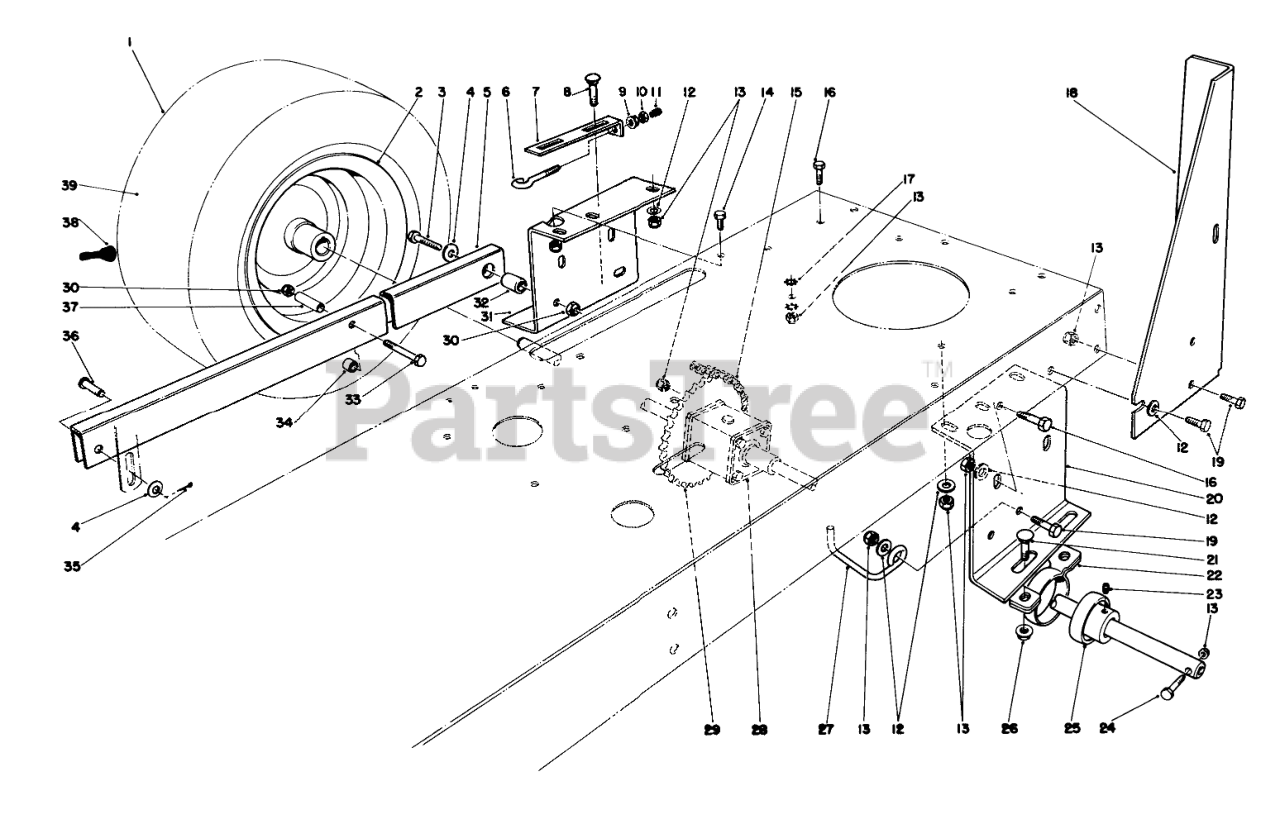

REAR AXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 231-117

TIRE

$104.99

$

Usually ships in 3-6 days

0

2

Toro 242-78

RIM

$

$

Not available

3

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 47-0020

REAR SUSP ARMR
(Superseded to 47-0020-01)

$384.99

$

Usually ships in 3-6 days

0

6

Toro 61-9980

SCREW-ADJUSTING

$8.49

$

In Stock, only 1 left!

0

7

Toro 61-9990

PLATE-ADJUSTING

$30.99

$

Usually ships in 3-6 days

0

8

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

9

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

10

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

11

Toro 2410-66

VINYL ROD TIP

$

$

Not available

12

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 56-7230

ROLLER CHAIN

$119.99

$

In Stock, only 1 left!

0

16

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Toro 3254-2

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

18

Toro 56-7450

LH STANDBAR B

$64.99

$

Usually ships in 3-6 days

0

Toro 56-7440

RH STANDBAR B

$64.99

$

Usually ships in 3-6 days

0

19

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Toro 56-7420

LH REAR AXLE SUPT R

$44.99

$

In Stock, only 1 left!

0

21

Toro 3231-30

SCREW-CARR

$4.99

$

In Stock, only 1 left!

0

22

Toro 47-1480

RTNR-PILLOW BLK

$55.99

$

Usually ships in 3-6 days

0

23

Toro 3245-35

SCREW-SET, HSH

$0.99

$

In Stock, Qty 10

0

Toro 3246-15

SCREW-SET

$6.49

$

Usually ships in 3-6 days

0

24

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

25

Toro 47-1490

Bearing-Ball (Incl. Ref. #23)

$70.99

$

Usually ships in 3-6 days

0

26

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

27

Toro 47-2010

BELT GUIDE

$23.99

$

Usually ships in 3-6 days

0

28

Toro 56-7110

DIFFERENTIAL

$

$

Not available

29

Toro 56-7090

42T DIFF SPROCKET

$81.99

$

Usually ships in 3-6 days

0

30

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

31

Toro 56-7410

RH REAR AXLE SUPT R

$63.99

$

In Stock, only 1 left!

0

32

Toro 56-7430

PIN-SUPT ARM

$13.99

$

Usually ships in 3-6 days

0

33

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 20+

0

34

Toro 47-0910

INNER TUBE SPACER

$

$

Not available

35

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

36

Toro 283-42

PIN-CLEVIS

$46.99

$

Usually ships in 3-6 days

0

37

Toro 47-0920

OUTER TUBE SPACER

$

$

Not available

38

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 17

0

39

Toro 232-39

TUBE-INNER

$31.99

$

In Stock, only 1 left!

0
