56145 (8-32) - Toro Rear-Engine Riding Mower (SN: 006000001 - 006999999) (1986) ENGINE BRIGGS & STRATTON MODEL NO. 191702-2160-01 8 H.P. REAR ENGINE RIDER RECOIL MODEL 56138 Parts Diagram

Rear-Engine Riding Mower

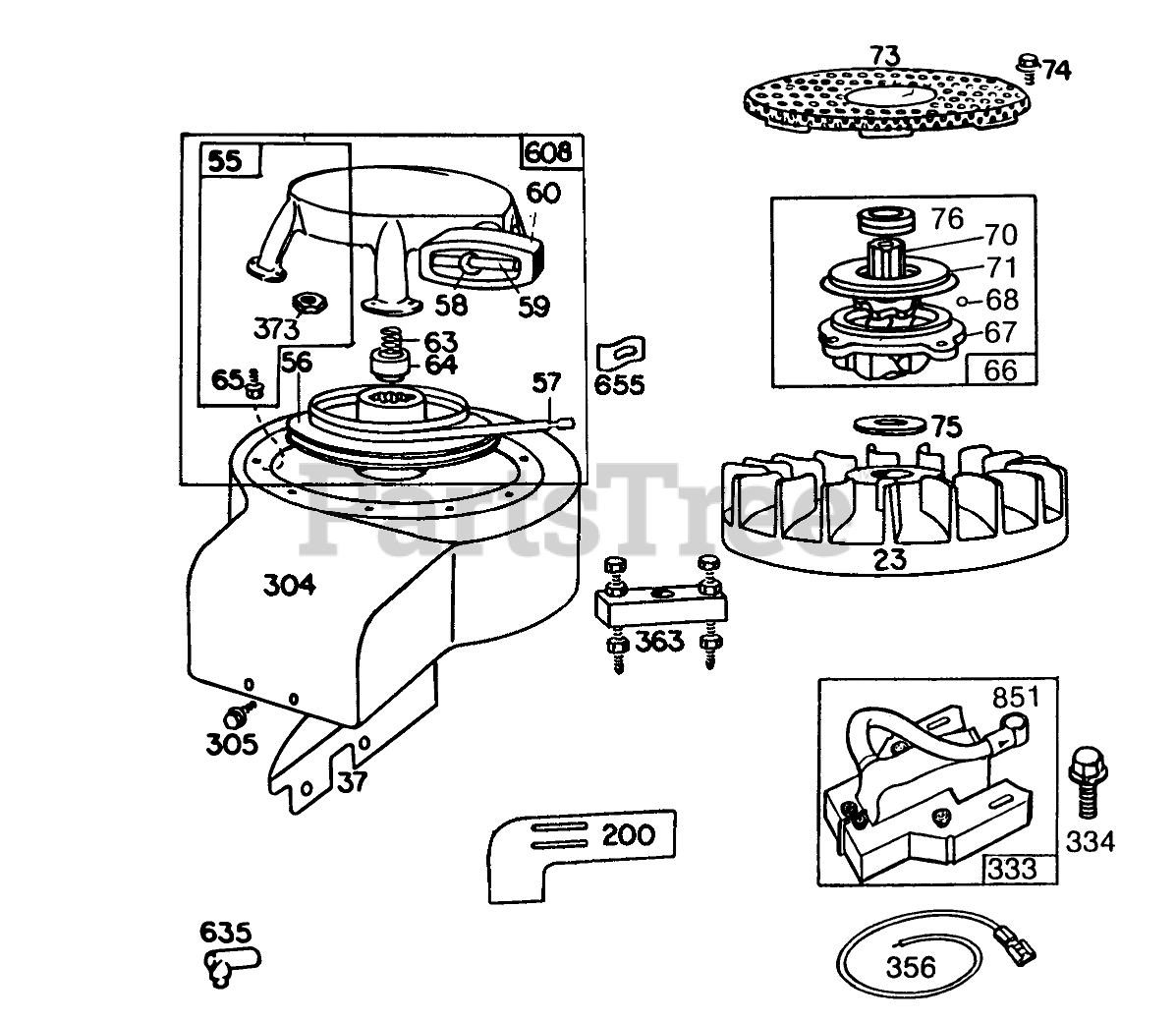

ENGINE BRIGGS & STRATTON MODEL NO. 191702-2160-01 8 H.P. REAR ENGINE RIDER RECOIL MODEL 56138 Parts Diagram

  • Title

23

Briggs & Stratton 298260

Flywheel

$

$

Not available

37

Briggs & Stratton 222475

Guard-Flywheel
(Superseded to 690411)

$

$

Not available

55

Briggs & Stratton 393576

Housing-Rewind

$85.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 295871

Pulley-Rewind

$14.99

$

In Stock, Qty 20+

0

57

Briggs & Stratton 294303

Spring-Rewind
(Superseded to 490179)

$

$

Not available

58

Briggs & Stratton 66884

Rope-Rewind
(Superseded to 692188)

$8.49

$

In Stock, only 1 left!

0

59

Briggs & Stratton 230228

Pin-Starter Grip
(Superseded to 230228S)

$3.99

$

In Stock, only 4 left!

0

60

Briggs & Stratton 66728

Grip-Starter
(Superseded to 490652)

$5.49

$

In Stock, Qty 12

0

63

Briggs & Stratton 260414

Spring
(Superseded to 690547)

$8.49

$

In Stock, Qty 5

0

64

Briggs & Stratton 230543

Adapter
(Superseded to 691920)

$11.99

$

In Stock, Qty 5

0

65

Briggs & Stratton 93067

Screw
(Superseded to 691082)

$4.99

$

In Stock, only 1 left!

0

66

Briggs & Stratton 394558

Housing-Starter Clutch
(Superseded to 399671)

$34.99

$

In Stock, Qty 20+

0

67

Briggs & Stratton 394897

Ball-Clutch

$36.99

$

In Stock, only 1 left!

0

68

Briggs & Stratton 63770

Ball
(Superseded to 691604)

$

$

Not available

70

Briggs & Stratton 298799

Ratchet
(Superseded to 691945)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 221653

Washer
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

73

Briggs & Stratton 221796

Screen
(Superseded to 691754)

$31.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 93042

Screw
(Superseded to 691078)

$4.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 220865

Washer
(Superseded to 690582)

$4.49

$

In Stock, only 4 left!

0

76

Briggs & Stratton 68238

Washer
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

200

Briggs & Stratton 221760

Guide-Air
(Superseded to 691170)

$15.99

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 299853

Housing-Blower
(Superseded to 491596)

$

$

Not available

305

Briggs & Stratton 93158

Screw
(Superseded to 692198)

$5.99

$

In Stock, Qty 12

0

333

Briggs & Stratton 398811

Armature Group

$63.99

$

In Stock, Qty 19

0

334

Briggs & Stratton 93381

Screw
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 398808

Wire Stop

$11.99

$

In Stock, only 1 left!

0

363

Briggs & Stratton 19165

Flywheel Puller

$25.99

$

Usually ships in 2-12 days

0

373

Briggs & Stratton 92987

Nut
(Superseded to 690800)

$3.99

$

In Stock, Qty 13

0

608

Briggs & Stratton 390391

Rewind Starter
(Superseded to 693900)

$131.99

$

In Stock, Qty 9

0

634A

Briggs & Stratton 271013

Washer (Throttle Shaft)
(Superseded to 691872)

$7.49

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 66538

Boot-Plug, Spark
(Superseded to 66538S)

$3.99

$

In Stock, Qty 11

0

655

Briggs & Stratton 222598

Anchor Spring
(Superseded to 691734)

$4.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 221798

Terminal-Cable
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0
