56145 (8-32) - Toro Rear-Engine Riding Mower (SN: 004000001 - 004999999) (1984) MOWER ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

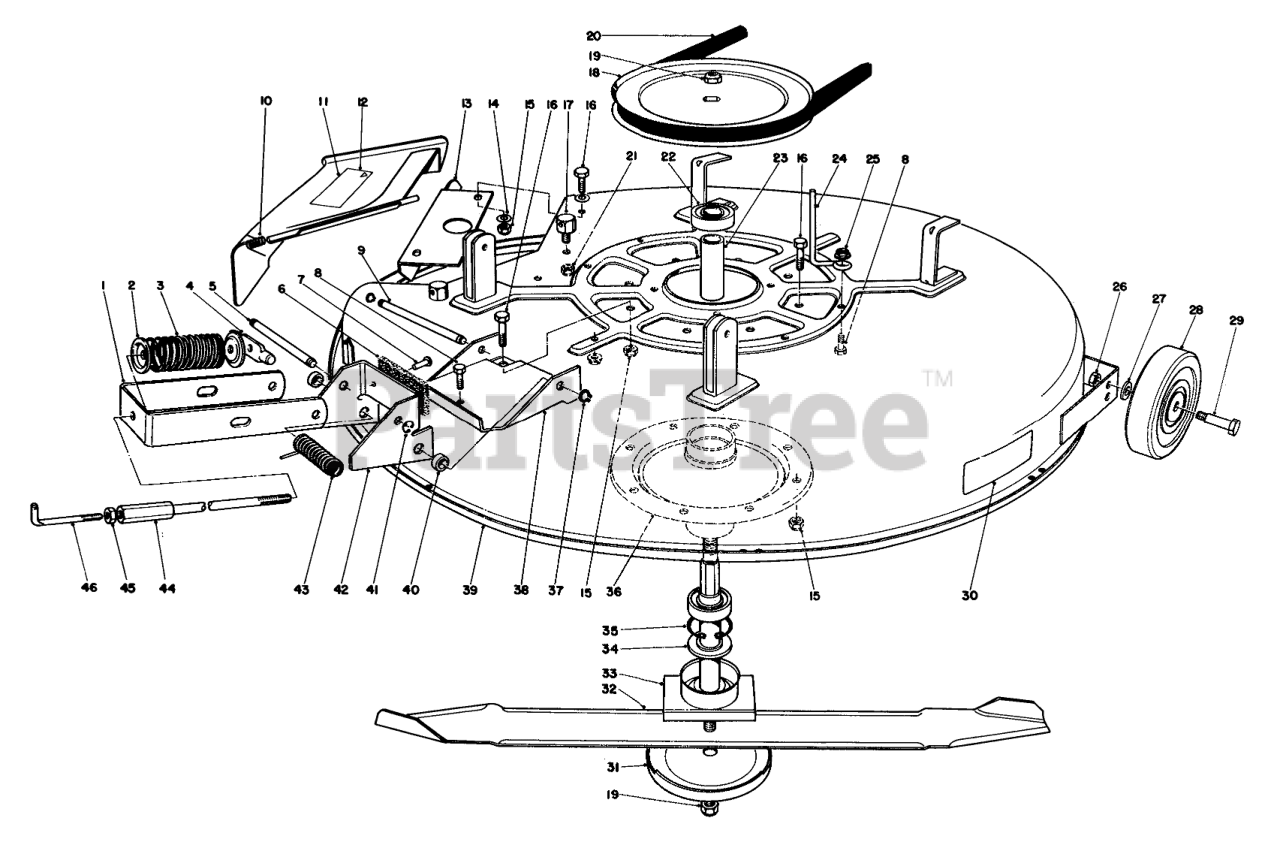

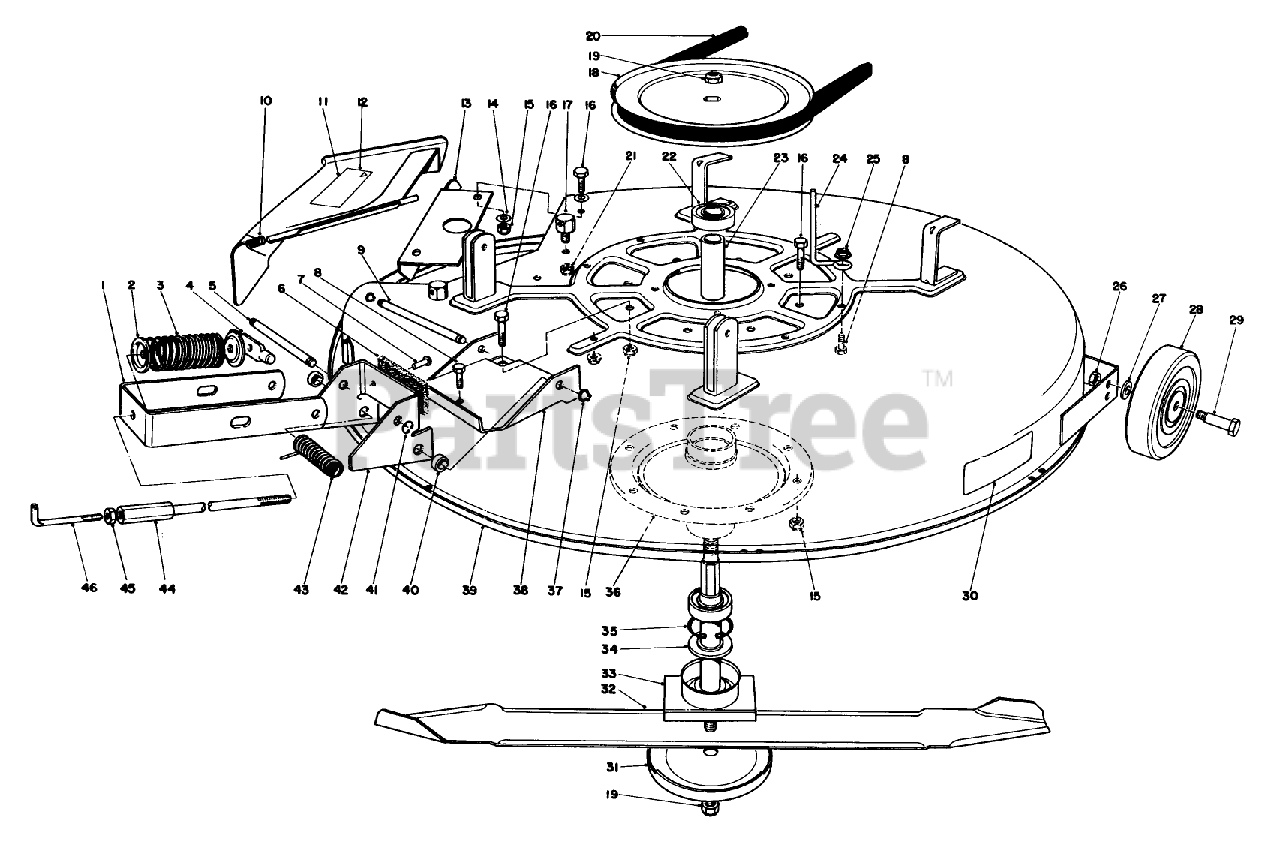

MOWER ASSEMBLY Parts Diagram

  • Title

1

Toro 47-1180

Bracket-Engagement
(Superseded to 47-1180-01)

$

$

Not available

2

Toro 47-1140

RETAINER-SPR. TOP

$

$

Not available

3

Toro 47-0960

SPRING-COMPRESSION

$

$

Not available

4

Toro 47-1200

SHAFT-DECK ADJ.

$

$

Not available

5

Toro 47-1230

Pin-Clevis

$

$

Not available

6

Toro 47-0210

BRAKE PAD

$

$

Not available

7

Toro 3295-43

RIVET .187 X 7/16 BRASS

$

$

Not available

8

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 47-1670

CLEVIS PIN

$40.99

$

Usually ships in 3-6 days

0

10

Toro 28-8010

SPRING

$24.99

$

Usually ships in 3-6 days

0

11

Toro 44-5930

Deflector Assembly (Incl. Ref. #12)

$191.99

$

Usually ships in 3-6 days

0

12

Toro 12-2890

Decal
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

13

Toro 44-5720

Baffle Deck
(Superseded to 44-5720-03)

$

$

Not available

14

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

15

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Toro 28-7350

POST-PIVOT

$38.99

$

Usually ships in 3-6 days

0

18

Toro 47-1350

PULLEY

$267.99

$

In Stock, only 2 left!

0

19

Toro 17-0980

Nut

$11.99

$

In Stock, only 4 left!

0

20

Toro 47-1420

V-BELT, DECK

$37.99

$

In Stock, only 1 left!

0

21

Toro 32153-2

NUT-LOCK, SIDE
(Superseded to 603773)

$2.99

$

In Stock, Qty 6

0

22

Toro 251-297

BEARING-BALL

$19.99

$

In Stock, only 2 left!

0

23

Toro 47-0100

Spacer-Bearing
(Superseded to 83-7020)

$28.99

$

In Stock, only 1 left!

0

24

Toro 47-0270

BELT GUIDE

$62.99

$

Usually ships in 3-6 days

0

25

Toro 32128-10

NUT-LOCK, HHF

$0.99

$

In Stock, Qty 20+

0

26

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

27

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 12

0

28

Toro 29-6010

DECK WHEEL

$

$

Not available

29

Toro 3-2652

Bolt

$

$

Not available

30

Toro 47-7240

DECK DECAL

$

$

Not available

31

Toro 7-3522

Cup
(Superseded to 92-6313)

$53.99

$

In Stock, only 1 left!

0

32

Toro 33-4750

Blade
(Superseded to 33-4750-03)

$58.99

$

In Stock, only 3 left!

0

33

Toro 47-0090

SPINDLE SHAFT WA

$263.99

$

In Stock, only 1 left!

0

34

Toro 47-0110

SPACER-SPINDLE

$1.99

$

Usually ships in 3-6 days

0

35

Toro 32120-11

RING-RETAINING
(Superseded to 32151-75)

$3.49

$

In Stock, Qty 19

0

36

Toro 47-0120

Spindle Body
(Superseded to 56-7030)

$

$

Not available

37

Toro 32151-57

RING-RETAINING

$5.49

$

In Stock, only 3 left!

0

38

Toro 47-1240

DECK ENGAGE CHANNEL R

$

$

Not available

39

Toro 47-1600

Cutter Deck
(Superseded to 95-7498)

$

$

Not available

40

Toro 47-1900

DECK BRAKE SPACER

$

$

Not available

41

Toro 32120-18

E-RING

$1.49

$

In Stock, only 3 left!

0

42

Toro 47-1610

Support Deck Brake Assembly (Incl. Ref. #6 & 7)

$

$

Not available

43

Toro 40-6230

SPRING

$39.99

$

Usually ships in 3-6 days

0

44

Toro 47-1150

ADJ HUB WA

$

$

Not available

45

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

46

Toro 47-1130

ADJ. ROD

$

$

Not available
