56145 (8-32) - Toro Rear-Engine Riding Mower (SN: 004000001 - 004999999) (1984) ENGINE ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

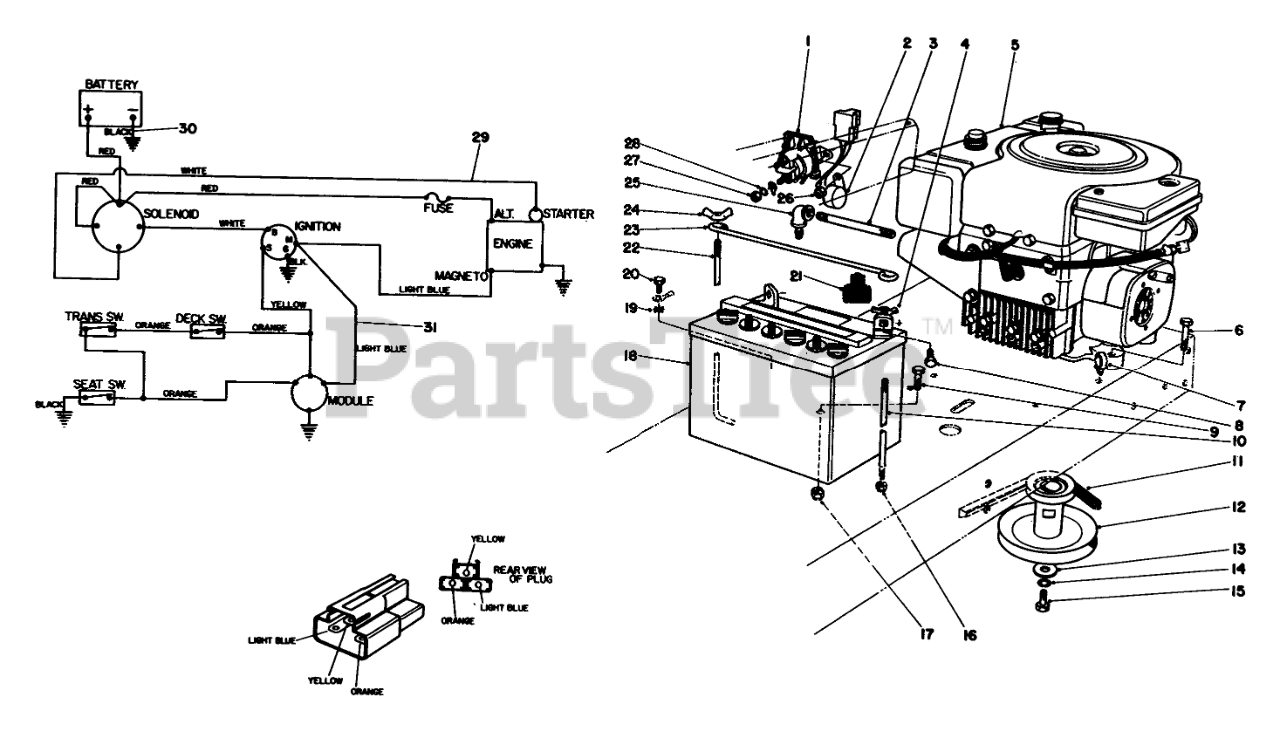

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 47-1910

SOLENOID
(Superseded to 740207)

$34.99

$

In Stock, Qty 6

0

2

Toro 28-7890

Module Interlock
(Superseded to 95-0659)

$158.99

$

Usually ships in 3-6 days

0

3

Toro 289-19

NIPPLE

$19.99

$

Usually ships in 3-6 days

0

4

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 17

0

5

Toro 221-737

Engine

$

$

Currently unavailable

6

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 51-2830

Clip-Cable

$

$

Not available

8

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 323-2

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

10

Toro 10-8120

BATTERY BOLT

$36.99

$

Usually ships in 3-6 days

0

11

Toro 47-1410

V-BELT, TRACTION

$27.99

$

In Stock, only 2 left!

0

12

Toro 47-1960

PULLEY

$435.99

$

Usually ships in 3-6 days

0

13

Toro 27-8920

WASHER

$4.99

$

Usually ships in 3-6 days

0

14

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

15

Toro 3212-5

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

16

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

17

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

18

Toro 49-7030

Battery

$

$

Not available

19

Toro 3254-2

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

20

Toro 32104-82

SCREW-HHF

$4.99

$

Usually ships in 3-6 days

0

21

Toro 28-8080

BOOT-TERMINAL

$23.99

$

Usually ships in 3-6 days

0

22

Toro 12-5950

ROD-SUPPORT, BATTERY

$23.99

$

Usually ships in 3-6 days

0

23

Toro 47-1680

BATTERY HOLD DOWN

$

$

Not available

24

Toro 32103-12

NUT-WING

$1.49

$

In Stock, only 3 left!

0

25

Toro 2811-16

ELBOW-90 DEGEE

$24.99

$

Usually ships in 3-6 days

0

26

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 6

0

27

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

28

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

29

Toro 47-0240

Wiring Harness

$

$

Not available

30

Toro 47-0260

Wire-Battery to Ground

$

$

Not available

31

Toro 47-1560

Wiring Harness

$

$

Not available
