56145 (8-32) - Toro Rear-Engine Riding Mower (SN: 004000001 - 004999999) (1984) DIFFERENTIAL MODEL 100-024 Parts Diagram

Rear-Engine Riding Mower

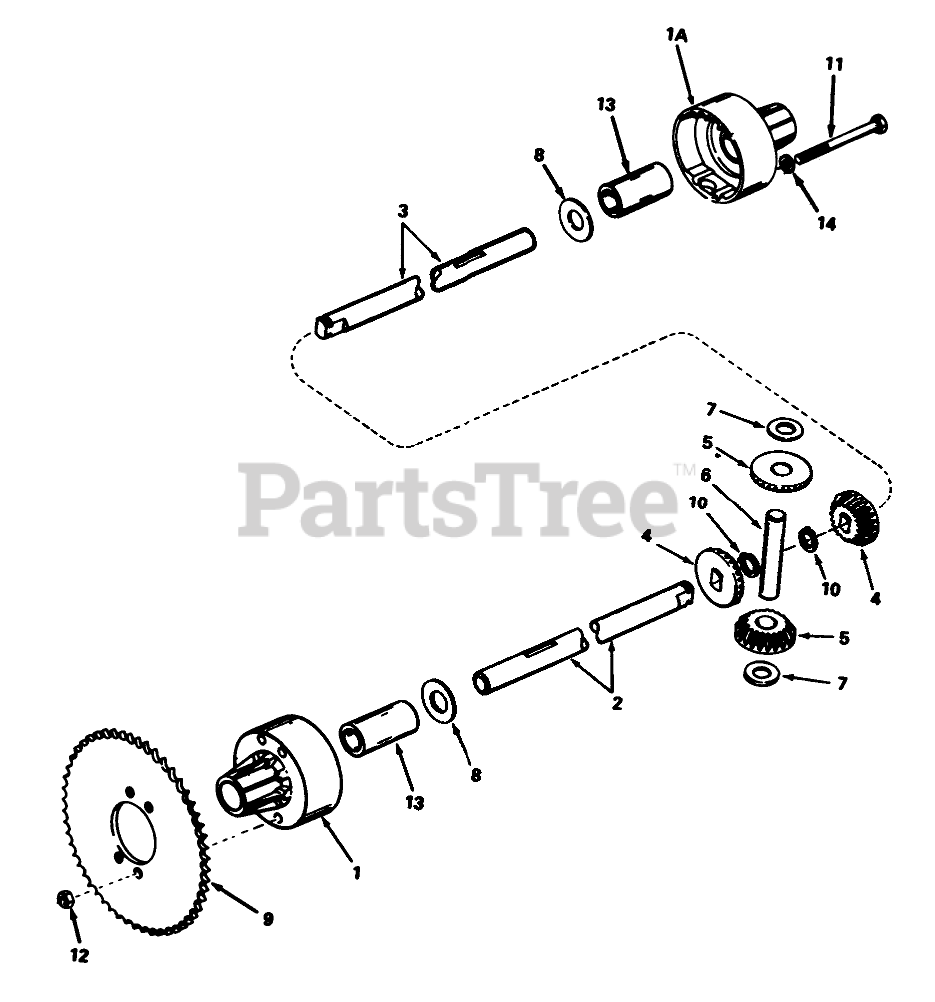

DIFFERENTIAL MODEL 100-024 Parts Diagram

  • Title
1

Toro 774344

Housing-Differential Carrier (Incl. #13)

$

$

Currently unavailable

1A

Toro 774345

Housing-Differential Carrier (Incl. #13)

$

$

Currently unavailable

2

Toro 774489

Axle (9-5/8" long)

$

$

Currently unavailable

3

Toro 774488

Axle (18-1/4" long)

$

$

Currently unavailable

4

Toro 778067

Bevel Gear

$

$

Currently unavailable

5

Toro 778068

Gear Pinion

$

$

Currently unavailable

6

Toro 786040

Pin Drive

$

$

Currently unavailable

7

Toro 780096

Washer Thrust

$

$

Currently unavailable

8

Toro 780001

Washer

$

$

Currently unavailable

$8.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 792041

Screw-Hex Hd.

$13.99

$

Usually ships in 2-12 days

0

12

Toro 792042

Nut-Lock

$

$

Currently unavailable

13

Toro 780077

Bushing

$

$

Currently unavailable

$9.99

$

Usually ships in 2-12 days

0
