56145 (8-32) - Toro Rear-Engine Riding Mower (SN: 003000001 - 003999999) (1983) SEAT & STEERING WHEEL ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

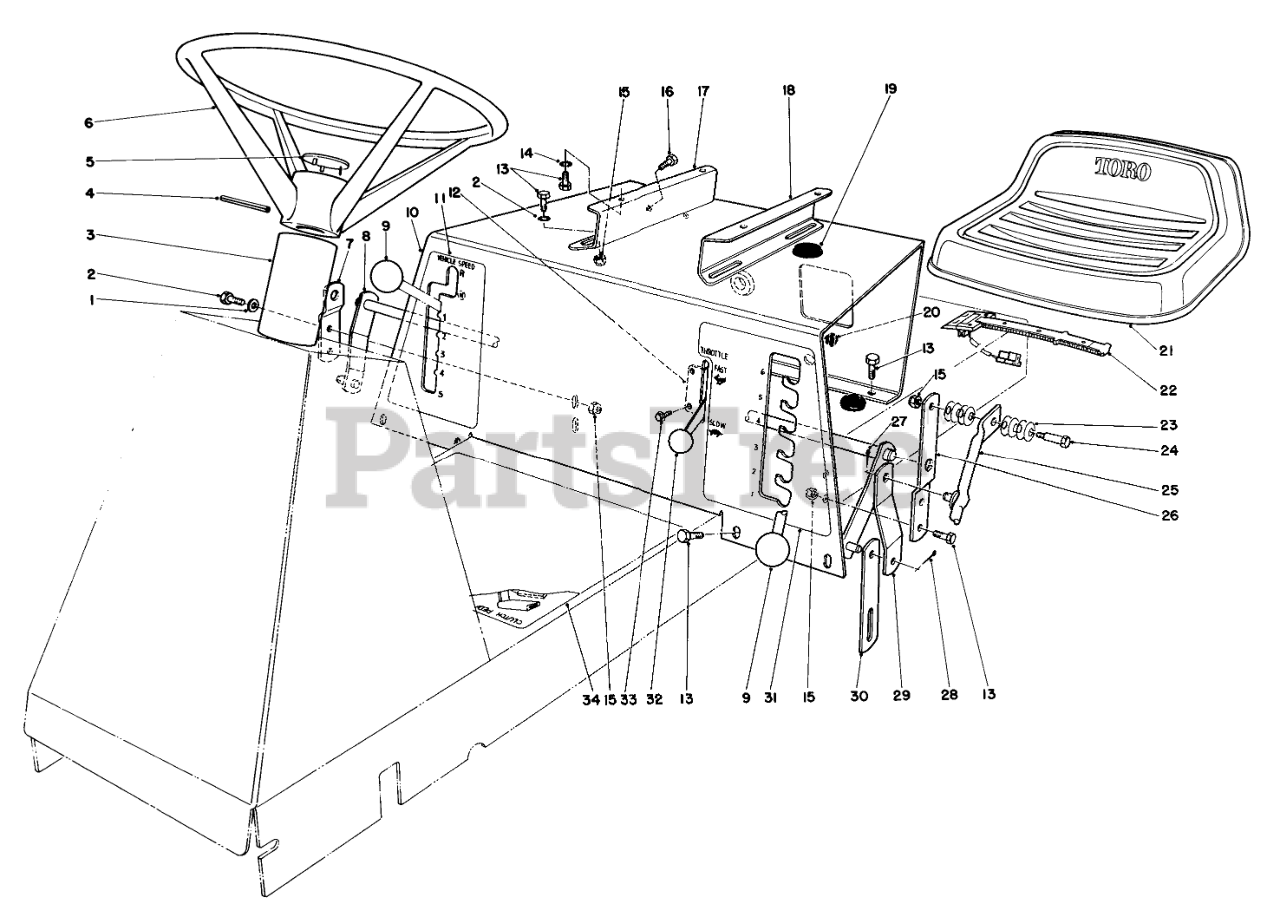

SEAT & STEERING WHEEL ASSEMBLY Parts Diagram

  • Title
1

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

2

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 47-1980

STRG. SHAFT COVER

$49.99

$

Usually ships in 3-6 days

0

4

Toro 32121-78

PIN-ROLL

$3.49

$

In Stock, Qty 7

0

5

Toro 47-2070

Cap-Steering Wheel
(Superseded to 66-6910)

$

$

Not available

6

Toro 38-0830

Steering Wheel
(Superseded to 49-3240)

$200.99

$

Usually ships in 3-6 days

0

7

Toro 47-0810

Bracket H.O.C Support

$

$

Not available

8

Toro 47-0860

HOC LEVER WA B

$

$

Not available

9

$13.99

$

Usually ships in 3-6 days

0

10

Toro 47-0530

Support Seat

$

$

Not available

11

Toro 47-0230

Decal-Transmission

$

$

Not available

12

Toro 47-0250

Throttle Control

$

$

Not available

13

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

14

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

15

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

16

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 47-0520

Bracket-Seat LH.

$

$

Not available

18

Toro 47-0510

Bracket-Seat RH.

$

$

Not available

19

Toro 237-100

GROMMET

$11.99

$

Usually ships in 3-6 days

0

20

Toro 237-136

GROMMET

$4.49

$

In Stock, only 3 left!

0

21

Toro 38-0850

Seat
(Superseded to 55-8691)

$

$

Not available

22

Toro 38-1420

SWITCH-SEAT

$

$

Not available

23

Toro 3290-413

WASHER-BELLEVILLE

$5.49

$

Usually ships in 3-6 days

0

24

Toro 28-0540

BOLT-SHOULDER

$12.99

$

In Stock, Qty 5

0

25

Toro 47-1850

HOC LEVER WA B

$

$

Not available

26

Toro 47-1840

Bracket
(Superseded to 47-1840-01)

$

$

Not available

27

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

28

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

29

Toro 47-0850

Bracket-Height Of Cut Engagement

$

$

Not available

30

Toro 47-0820

Link-Deck Suspension

$

$

Not available

31

Toro 47-0220

H.O.C. DECAL

$

$

Not available

32

Toro 233-25

KNOB-CONTROL

$5.49

$

In Stock, only 1 left!

0

33

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

34

Toro 47-1450

Decal-Instructions

$

$

Not available
