56138 (8-32) - Toro Rear-Engine Riding Mower (SN: 005000001 - 005999999) (1985) ENGINE ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

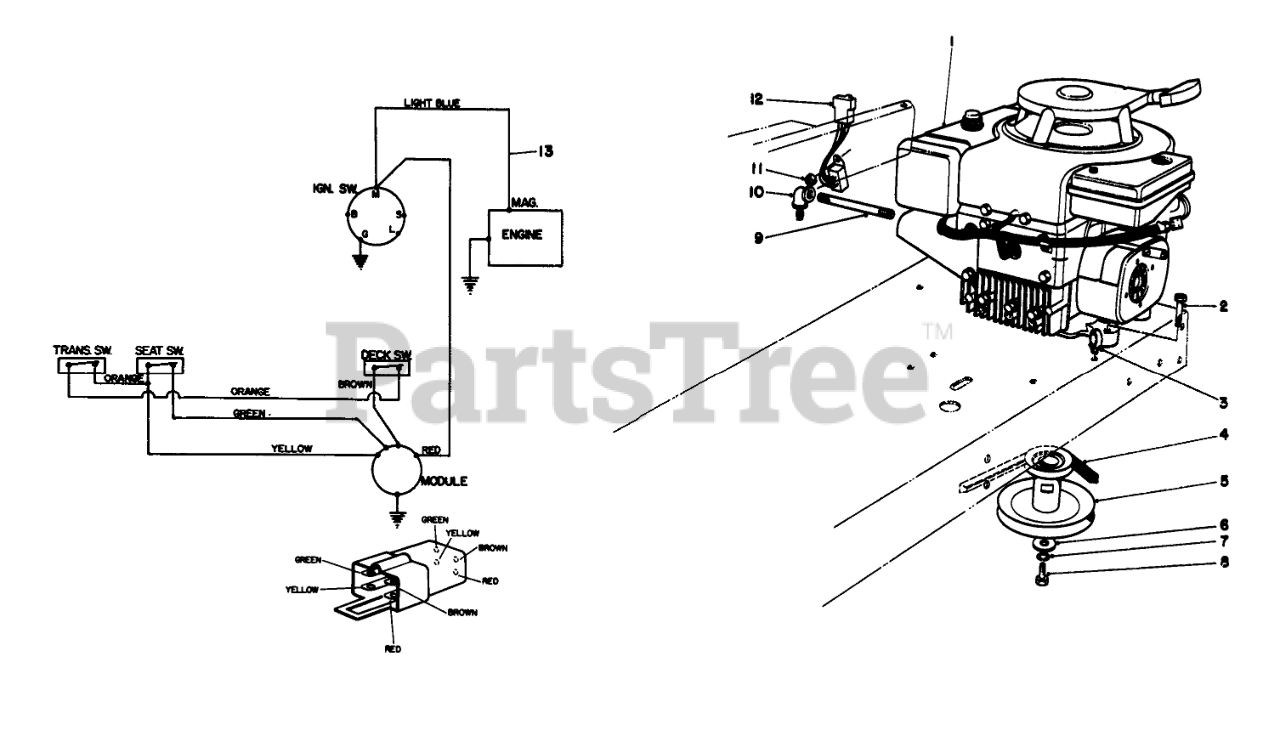

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 47-1630

Engine

$

$

Currently unavailable

2

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Toro 51-2830

Clip-Cable

$

$

Not available

4

Toro 47-1410

V-BELT, TRACTION

$27.99

$

In Stock, only 2 left!

0

5

Toro 47-1960

PULLEY

$435.99

$

Usually ships in 3-6 days

0

6

Toro 27-8920

WASHER

$4.99

$

Usually ships in 3-6 days

0

7

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

8

Toro 3212-5

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

9

Toro 289-19

NIPPLE

$19.99

$

Usually ships in 3-6 days

0

10

Toro 2811-16

ELBOW-90 DEGEE

$24.99

$

Usually ships in 3-6 days

0

11

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 6

0

12

Toro 39-6520

INTERLOCK MODULE

$

$

Not available

13

Toro 47-1700

Wiring Harness

$

$

Not available
