56138 (8-32) - Toro Rear-Engine Riding Mower (SN: 003000001 - 003999999) (1983) TRANSMISSION LINKAGE ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

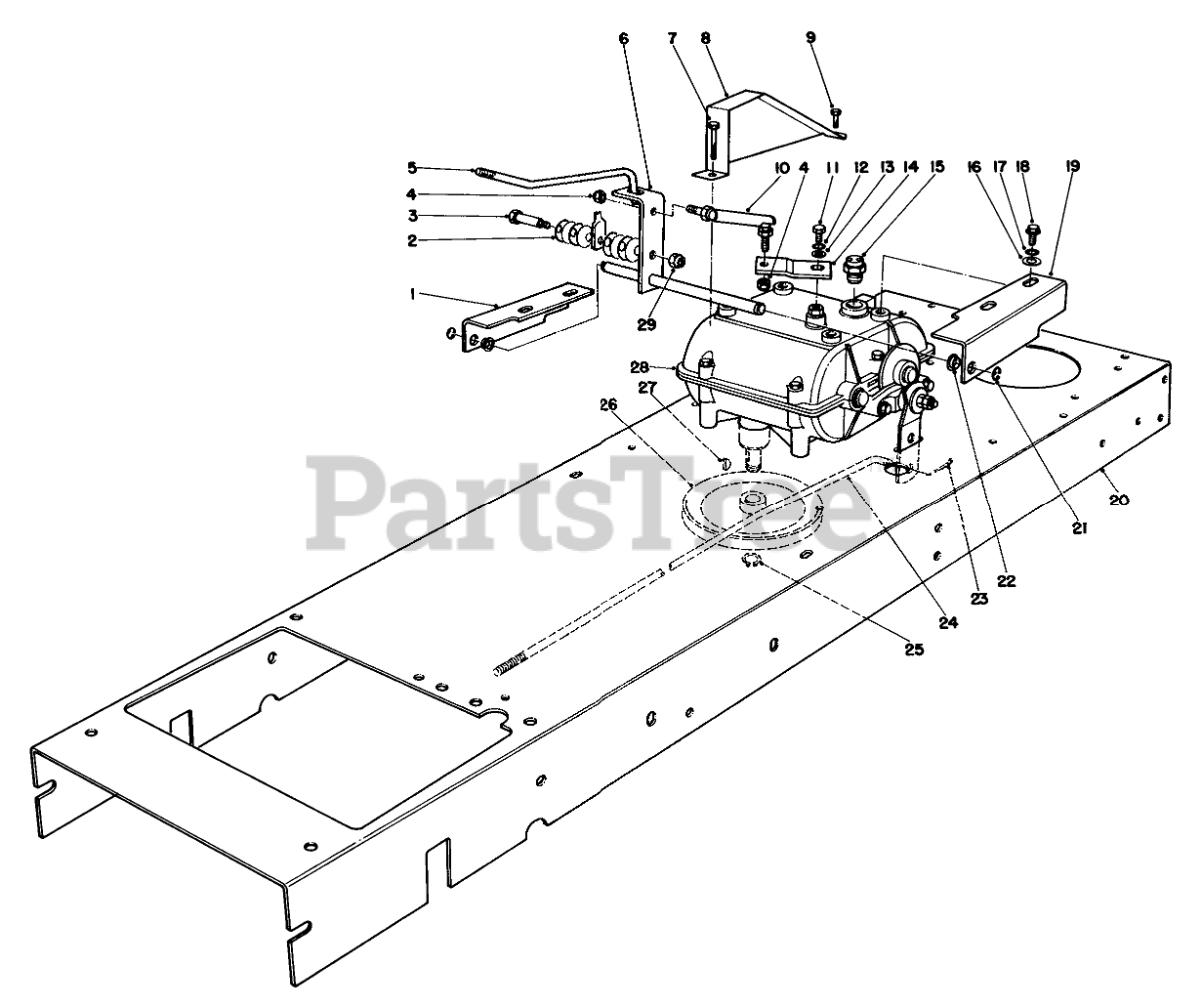

TRANSMISSION LINKAGE ASSEMBLY Parts Diagram

  • Title

1

Toro 47-0390

Bracket-Shift R.H.

$

$

Not available

2

Toro 3290-413

WASHER-BELLEVILLE

$5.49

$

Usually ships in 3-6 days

0

3

Toro 28-0540

BOLT-SHOULDER

$12.99

$

In Stock, Qty 5

0

4

Toro 3296-13

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

5

Toro 47-0440

Lever-Shift

$

$

Not available

6

Toro 47-0430

SHIFT LEVER WA B

$

$

Not available

7

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

8

Toro 47-1220

CHAIN GUARD R

$

$

Not available

9

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 16

0

10

Toro 47-0450

TIE ROD SHIFT

$

$

Not available

11

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

13

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 47-0460

SHIFT LEVER LINK BO

$

$

Not available

15

Toro 28-4250

NEUTRAL SWITCH

$46.99

$

Usually ships in 3-6 days

0

16

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

17

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

18

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

19

Toro 47-0400

51-1710T BRKT B

$

$

Not available

20

Toro 47-0970

Frame-Main

$

$

Not available

21

Toro 32151-70

E-RING EXTERNAL

$

$

Not available

22

Toro 256-195

NYLINER #7L2FF TYPE 7

$

$

Not available

23

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

24

Toro 47-1250

Rod-Brake

$

$

Not available

25

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, only 2 left!

0

26

Toro 7-4085

PULLEY

$186.99

$

In Stock, only 3 left!

0

27

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, only 1 left!

0

28

Toro 47-1530

TRANSMISSION

$

$

Not available

29

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0
