56138 (8-32) - Toro Rear-Engine Riding Mower (SN: 003000001 - 003999999) (1983) DIFFERENTIAL MODEL 100-020 Parts Diagram

Rear-Engine Riding Mower

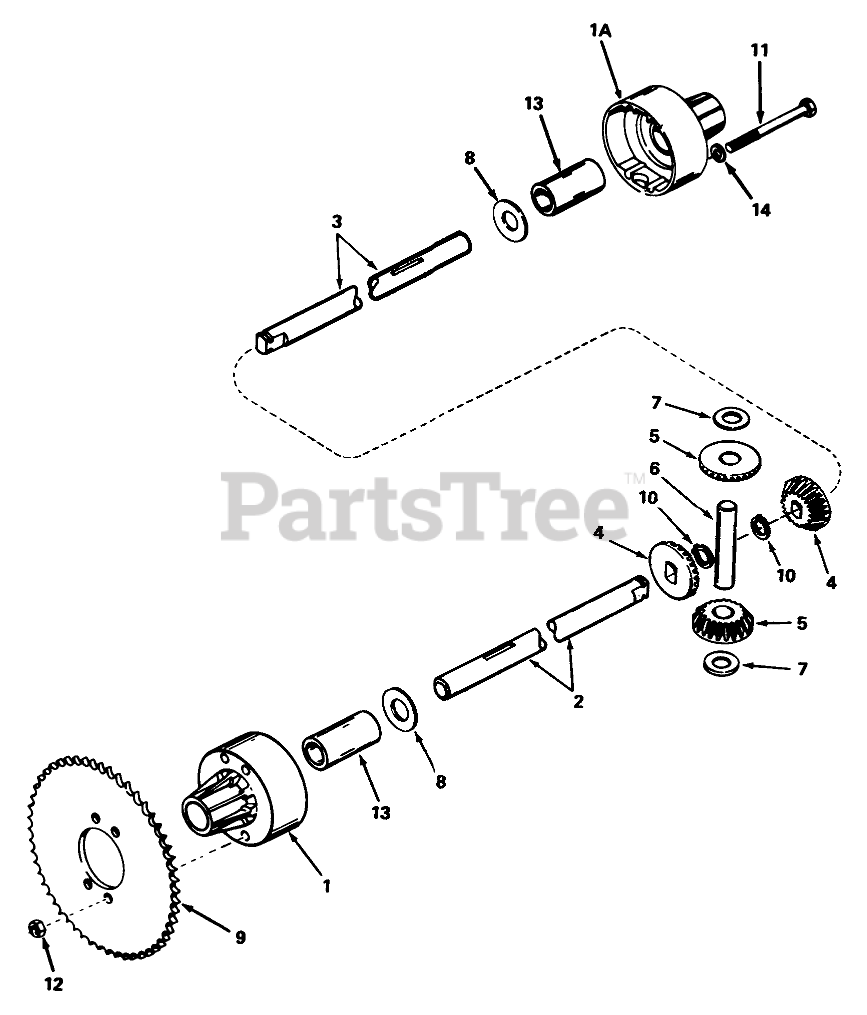

DIFFERENTIAL MODEL 100-020 Parts Diagram

  • Title
1

Toro 774344

Housing-Differential Carrier (Incl. #13)

$

$

Currently unavailable

1A

Toro 774345

Housing-Differential Carrier (Incl. #13)

$

$

Currently unavailable

2

Toro 774476

Axle (9-1/8" Long)

$

$

Currently unavailable

3

Toro 774477

Axle (18-5/8" Long)

$

$

Currently unavailable

4

Toro 778067

Bevel Gear

$

$

Currently unavailable

5

Toro 778068

Gear Pinion

$

$

Currently unavailable

6

Toro 786040

Pin Drive

$

$

Currently unavailable

7

Toro 780096

Washer Thrust

$

$

Currently unavailable

8

Toro 780001

Washer

$

$

Currently unavailable

10

Toro 792018

Ring-Snap

$

$

Currently unavailable

11

Toro 792041

Screw-Hex Hd.

$

$

Currently unavailable

12

Toro 792042

Nut-Lock

$

$

Currently unavailable

13

Toro 780077

Bushing

$

$

Currently unavailable

14

Toro 792061

Washer

$

$

Currently unavailable
