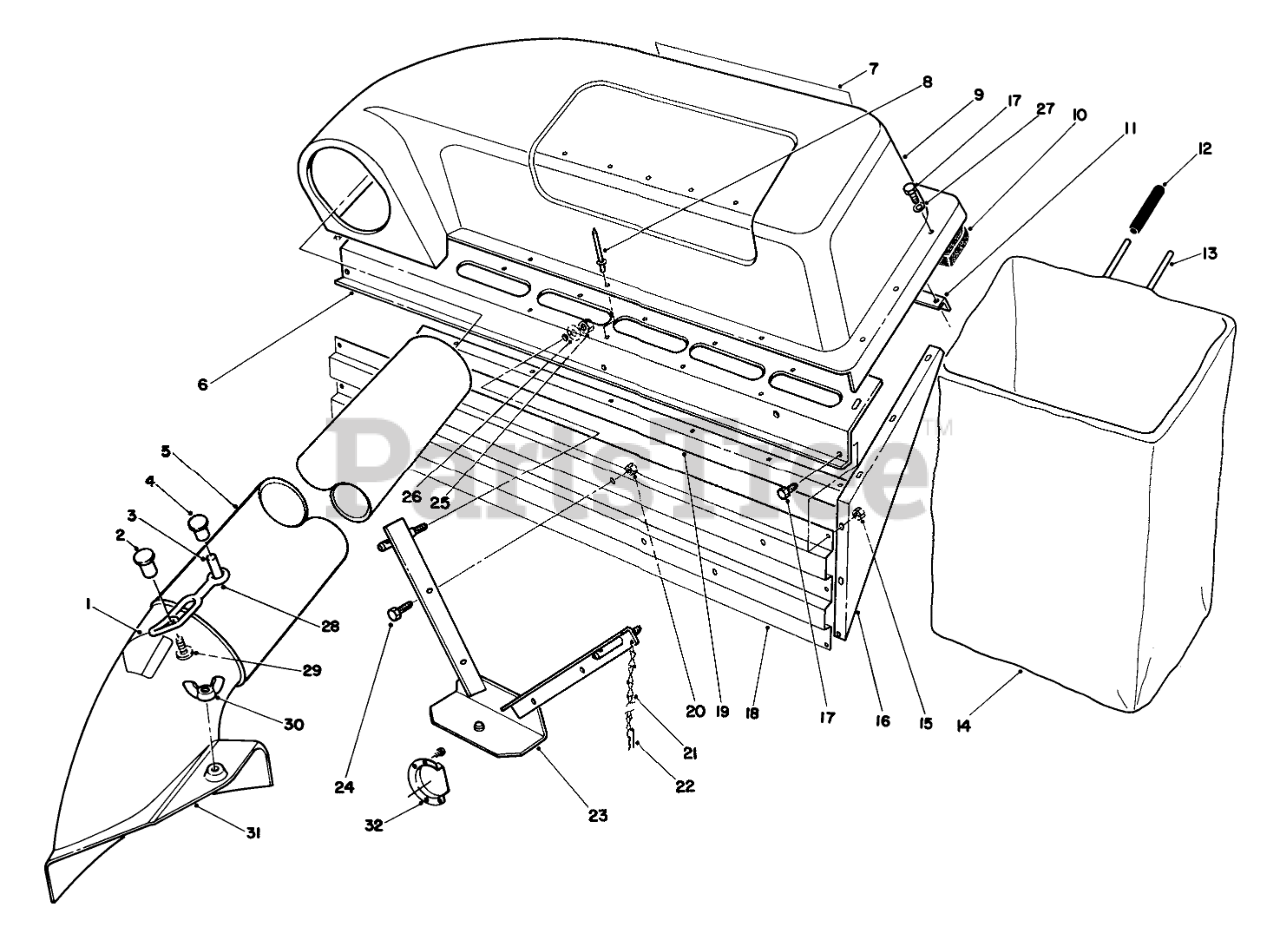

56133 (8-25) - Toro Rear-Engine Riding Mower (SN: 020000001 - 029999999) (1992) TWIN BAGGER GRASS CATCHER MODEL 59053 (OPT.) Parts Diagram

Rear-Engine Riding Mower

TWIN BAGGER GRASS CATCHER MODEL 59053 (OPT.) Parts Diagram

  • Title
1

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

2

$8.49

$

Usually ships in 3-6 days

0

3

Toro 22-9741

SPACER-INTERLOCK

$3.49

$

In Stock, Qty 6

0

4

Toro 3290-479

FASTENER-PANEL

$4.99

$

In Stock, Qty 20+

0

5

$

$

Not available

6

Toro 57-7920

COVER SUPT BAFFLE B

$

$

Not available

7

Toro 57-7840

Decal-Twin Bagger

$

$

Not available

8

Toro 3269-15

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

9

Toro 67-9960

COVER

$

$

Not available

10

Toro 57-7820

FOAM SEAL

$

$

Not available

11

Toro 57-7880

BAG FRAME BRKT

$

$

Not available

12

Toro 47-2550

GRIP-HANDLE, BAG

$4.99

$

Usually ships in 3-6 days

0

13

Toro 57-7960

BAG FRAME

$

$

Not available

14

$

$

Not available

15

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

16

Toro 57-7980

Plate-Side
(Superseded to 57-7980-03)

$

$

Not available

17

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 67-9960

COVER

$

$

Not available

19

Toro 57-7890

BAG SUPPORT CHANNEL

$

$

Not available

20

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Toro 2830-9

6-LINK CHAIN W/HOOK

$

$

Not available

22

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

23

Toro 67-9900

V-Bracket
(Superseded to 67-9900-03)

$

$

Not available

24

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

25

Toro 3296-17

NUT-LOCK, NI
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

26

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 82-5690

RETAINER-DUCT

$18.99

$

In Stock, Qty 7

0

29

Toro 32140-64

Screw
(Superseded to 32144-112)

$1.49

$

In Stock, Qty 20+

0

30

Toro 32103-14

NUT-WING SPECL

$15.99

$

In Stock, only 1 left!

0

31

Toro 67-1550

Assembly-Chute (Incl. Ref. #1, 4 & 29)
(Superseded to 67-1551)

$

$

Not available

32

Toro 2210-319

MUFFLER DEFLECTOR

$

$

Not available
