56133 (8-25) - Toro Rear-Engine Riding Mower (SN: 010000001 - 019999999) (1991) SEAT & GAS TANK ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

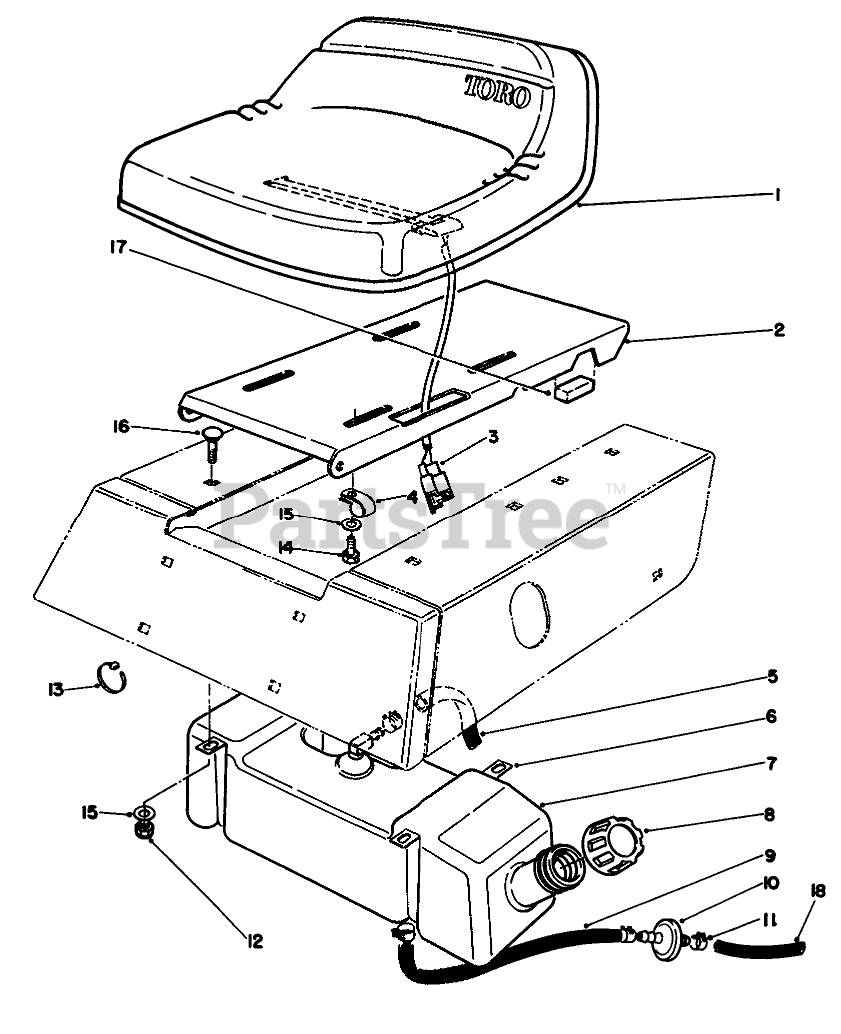

SEAT & GAS TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 66-6680

Seat
(Superseded to 88-4330)

$

$

Not available

2

Toro 67-1241

BASE - SEAT

$

$

Not available

3

Toro 38-1420

SWITCH-SEAT

$

$

Not available

4

Toro 18-2970

CLIP-FUEL LINE

$9.99

$

In Stock, only 4 left!

0

5

Toro 47-2986

HOSE-FUEL

$

$

Not available

6

Toro 67-0950

STRAP-GAS TANK

$

$

Not available

7

Toro 80-4580

TANK-GAS

$

$

Not available

8

Toro 55-3576

GAS CAP ASM

$28.99

$

Usually ships in 3-6 days

0

9

Toro 47-2983

HOSE-FUEL
(Superseded to 109-0296)

$10.99

$

In Stock, only 4 left!

0

10

Toro 56-6360

FILTER-FUEL

$6.49

$

In Stock, Qty 20+

0

11

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

14

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Toro 3230-20

SCREW-CARR
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

17

Toro 66-6920

PAD-ISOLATOR

$

$

Not available

18

Toro 47-2964

HOSE-FUEL
(Superseded to 110-4895)

$19.99

$

Usually ships in 3-6 days

0
