56132 (8-25) - Toro Recycler Rear-Engine Riding Mower (SN: 020000001 - 029999999) (1992) EASY EMPTY BAGGING KIT MODEL 59047 (OPTIONAL) Parts Diagram

Recycler Rear-Engine Riding Mower

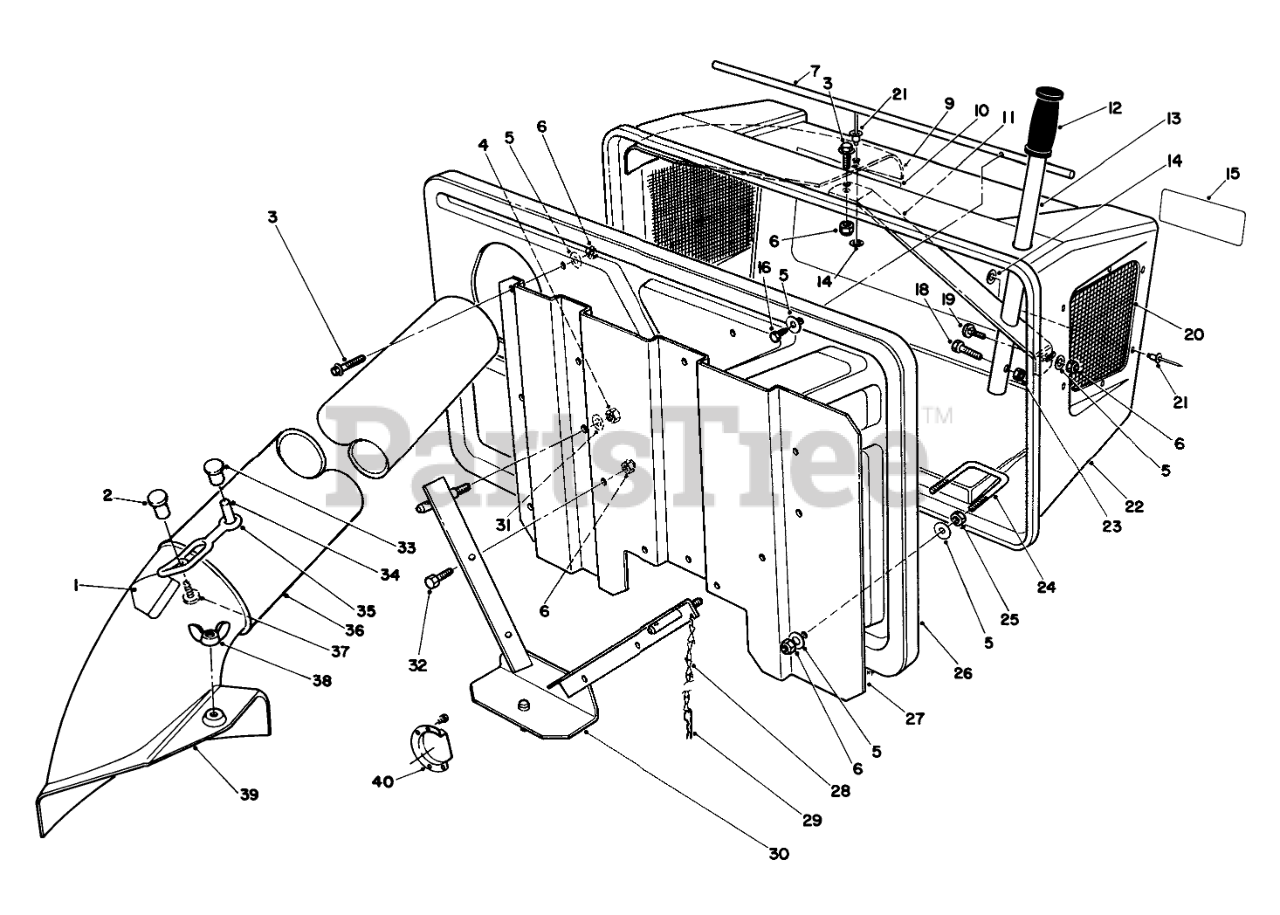

EASY EMPTY BAGGING KIT MODEL 59047 (OPTIONAL) Parts Diagram

  • Title
1

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

2

$8.49

$

Usually ships in 3-6 days

0

3

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

4

Toro 3296-17

NUT-LOCK, NI
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

5

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Toro 25-1360

PIVOT ROD

$

$

Not available

9

Toro 25-1470

DEFLECTOR

$

$

Not available

10

Toro 46-2850

DECAL

$

$

Not available

11

Toro 25-1390

HANDLE GUIDE

$

$

Not available

12

$

$

Not available

13

Toro 25-1380

HANDLE TUBE

$

$

Not available

14

Toro 3269-6

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

15

Toro 25-2200

EASY EMPTY BAG DECAL
(Superseded to 92-1754)

$

$

Not available

16

Toro 321-30

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

18

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

19

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

20

Toro 26-0010

SCREEN

$

$

Not available

21

Toro 3290-382

RIVET-POP

$1.49

$

Usually ships in 3-6 days

0

22

Toro 25-1290

HOPPER

$

$

Not available

23

Toro 32153-4

NUT-HEX, SIDE DEFORM

$1.49

$

Usually ships in 3-6 days

0

24

Toro 25-1370

LATCH

$40.99

$

Usually ships in 3-6 days

0

25

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

26

$

$

Not available

27

Toro 67-1540

Plate-Mounting
(Superseded to 67-1540-03)

$

$

Not available

28

Toro 2830-9

6-LINK CHAIN W/HOOK

$

$

Not available

29

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

30

Toro 67-9900

V-Bracket
(Superseded to 67-9900-03)

$

$

Not available

31

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

32

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 15

0

33

Toro 3290-479

FASTENER-PANEL

$4.99

$

In Stock, Qty 20+

0

34

Toro 22-9741

SPACER-INTERLOCK

$3.49

$

In Stock, Qty 6

0

35

Toro 82-5690

RETAINER-DUCT

$18.99

$

In Stock, Qty 7

0

36

$

$

Not available

37

Toro 32140-64

Screw
(Superseded to 32144-112)

$1.49

$

In Stock, Qty 20+

0

38

Toro 32103-14

NUT-WING SPECL

$15.99

$

In Stock, only 1 left!

0

39

Toro 67-1550

Chute (Incl. Ref. #1, 2 & 37)
(Superseded to 67-1551)

$

$

Not available

40

Toro 2210-319

MUFFLER DEFLECTOR

$

$

Not available
