56128 (8-25) - Toro Rear-Engine Riding Mower (SN: 009000001 - 009999999) (1989) FRONT BODY ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

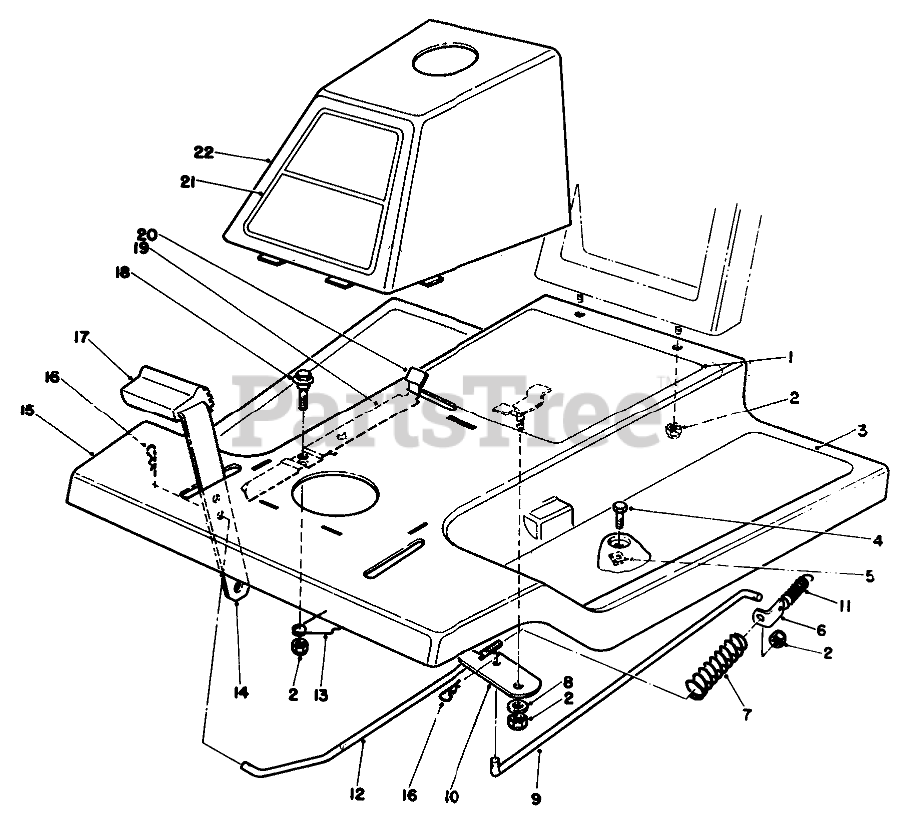

FRONT BODY ASSEMBLY Parts Diagram

  • Title

1

Toro 67-1290

DECAL - INSTRUCTION

$

$

Not available

2

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

3

Toro 44-7030

TREAD-FOOT

$

$

Not available

4

Toro 32104-110

SCREW-HH

$

$

Not available

5

Toro 3290-347

NUT-TINNERMAN

$6.49

$

Usually ships in 3-6 days

0

6

Toro 67-1590

BRACKET-BRAKE RETURN

$

$

Not available

7

Toro 67-1430

SPRING-TRACTION BRAKE

$

$

Not available

8

Toro 26-9530

WASHER-PIVOT

$8.49

$

Usually ships in 3-6 days

0

9

Toro 67-1340

ROD-TRANS BRAKE

$

$

Not available

10

Toro 67-1330

Lever-Brake, Bellcrank
(Superseded to 67-1330-03)

$

$

Not available

11

Toro 67-1450

SPRING-IDLER

$24.99

$

Usually ships in 3-6 days

0

12

Toro 67-1350

ROD-FRONT BRAKE

$

$

Not available

13

Toro 19-1970

SPRING-PARKING BRAKE

$

$

Not available

14

Toro 67-1130

Pedal-Brake & Clutch
(Superseded to 67-1130-03)

$

$

Not available

15

Toro 67-1070

Body W.A.-Front
(Superseded to 98-2387-01)

$

$

Not available

16

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

17

Toro 65-2920

PAD-PEDAL

$33.99

$

Usually ships in 3-6 days

0

18

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 5

0

19

Toro 19-1610

Parking Brake
(Superseded to 19-1610-03)

$

$

Not available

20

Toro 19-2200

TIP-PARKING BRAKE

$

$

Not available

21

Toro 66-6730

DECAL-TORO 825

$

$

Not available

22

Toro 13-6779

Tower (Incl. Ref. #21)

$

$

Not available
