56128 (8-25) - Toro Rear-Engine Riding Mower (SN: 009000001 - 009999999) (1989) ENGINE MODEL NO. TVXL195-150229 Parts Diagram

Rear-Engine Riding Mower

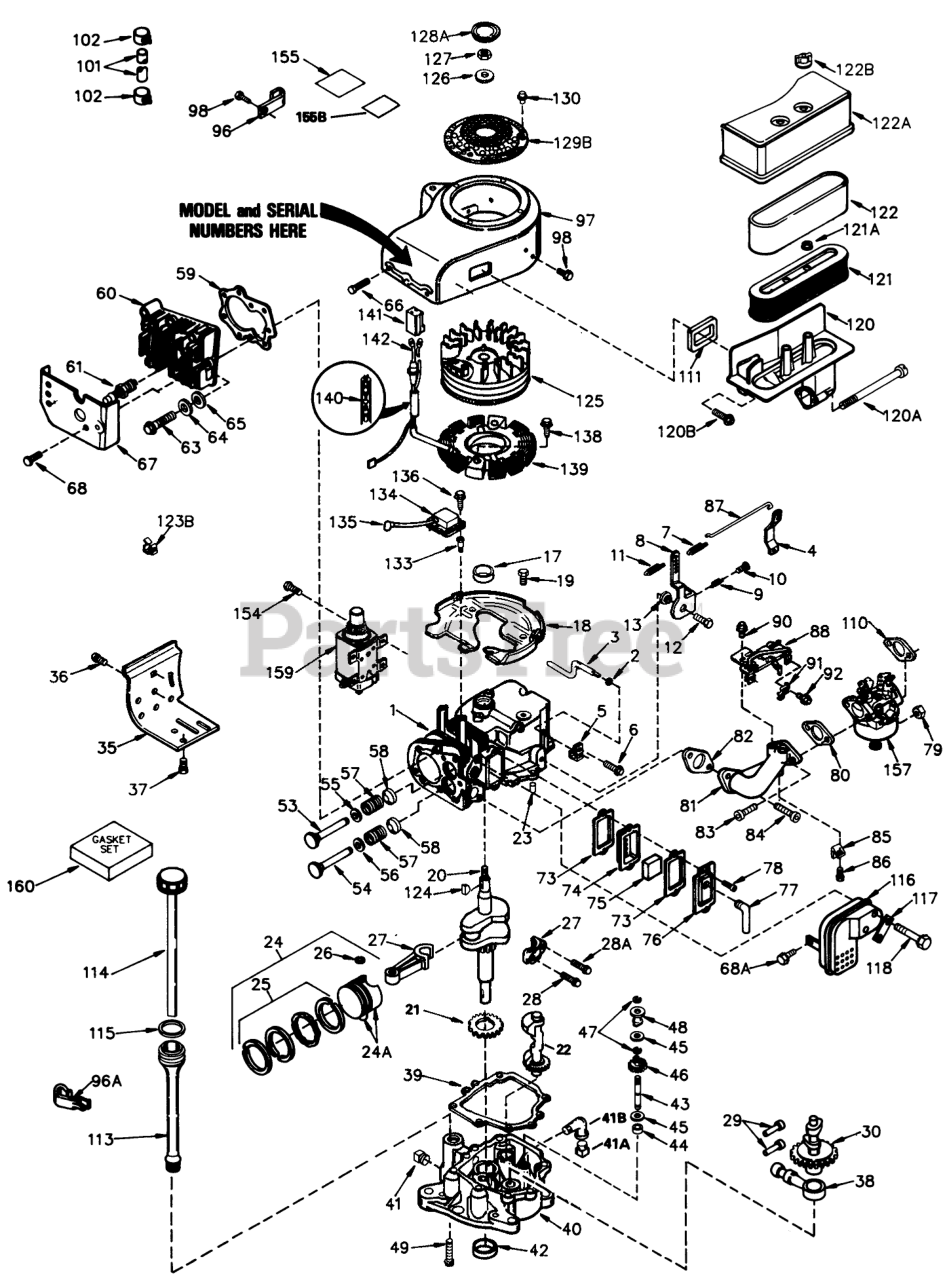

ENGINE MODEL NO. TVXL195-150229 Parts Diagram

  • Title

1

Tecumseh 35745

Cylinder Assy. (Incl. Ref. #17 & 23)

$

$

Not available

2

Toro 28277A

Washer, Flat

$

$

Currently unavailable

3

Tecumseh 35082

Rod, Governor

$1.99

$

Usually ships in 3-12 days

0

4

Tecumseh 32651

Governor Lever

$

$

Not available

5

Tecumseh 31335

Clamp-Lever, Governor

$1.99

$

In Stock, only 2 left!

0

6

Tecumseh 650548

Screw
(Superseded to 651018)

$1.99

$

In Stock, Qty 8

0

7

Tecumseh 34043

Spring, Extension

$1.99

$

In Stock, Qty 5

0

8

Tecumseh 35202A

Lever, Control (Incl. Ref. #11, 12, 13 & 110)

$5.49

$

Usually ships in 3-12 days

0

9

Tecumseh 33802

61709/GIL1515A/95-5
(Superseded to 36482)

$3.99

$

In Stock, only 1 left!

0

10

Tecumseh 650777

Screw
(Superseded to 651019)

$1.99

$

In Stock, Qty 5

0

11

Tecumseh 35203

Spring, Control

$6.99

$

In Stock, only 2 left!

0

12

Tecumseh 30312

SCREW, HEX WASHER HD.

$1.99

$

In Stock, only 2 left!

0

13

Tecumseh 35550

Bell crank

$1.99

$

Usually ships in 3-12 days

0

17

Tecumseh 35319

Seal-Oil

$4.99

$

In Stock, only 2 left!

0

18

Tecumseh 35326

Baffle-Blower Housing
(Superseded to 37853)

$11.99

$

In Stock, only 1 left!

0

19

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

20

Tecumseh 35422

Crankshaft
(Superseded to 35422A)

$191.99

$

Usually ships in 3-12 days

0

21

Tecumseh 35327

Counterbalance Gear

$18.99

$

Usually ships in 3-12 days

0

22

Tecumseh 35747

Weight Assy.,Counter balance
(Superseded to 35747A)

$65.22

$

In Stock, only 1 left!

0

23

Tecumseh 27652

Pin-Dowel

$2.49

$

Usually ships in 3-12 days

0

24

Tecumseh 34552

Piston, Pin & Ring Assy. (Std.) (Incl. Ref. #24A, 25 & 26)
(Superseded to 40049)

$

$

Not available

24

Tecumseh 34553

Piston, Pin & Ring Assy. (.010 oversize) (Incl. Ref. #24A, 25 & 26)
(Superseded to 40012)

$

$

Not available

24

Tecumseh 34554

Piston, Pin & Ring Assy. (.020 oversize) (Incl. Ref. #24A, 25 & 26)

$

$

Not available

24A

Tecumseh 34329A

Piston & Pin Assy. (Std.) (Incl. Ref. #26)
(Superseded to 40049)

$

$

Not available

24A

Tecumseh 34330A

Piston & Pin Assy. (.010 oversize) (Incl. Ref. #26)
(Superseded to 40012)

$

$

Not available

24A

Tecumseh 34331A

Piston & Pin Assy. (.020 oversize) (Incl. Ref. #26)

$

$

Not available

25

Tecumseh 34332

Ring Set (Std.)
(Superseded to 40049)

$

$

Not available

25

Tecumseh 34333

Ring Set (.010" OS)

$

$

Not available

25

Tecumseh 34334

Ring Set (.020" OS)

$38.99

$

In Stock, only 1 left!

0

26

Toro 27888B

Ring, Piston Pin Retaining

$

$

Currently unavailable

27

Tecumseh 35373A

Rod Assy., Connecting (Incl. Ref. #28 & 28A)
(Superseded to 36897A)

$48.99

$

In Stock, only 1 left!

0

28

Tecumseh 650908

Bolt-Rod
(Superseded to 651063)

$1.99

$

In Stock, only 3 left!

0

28A

Tecumseh 650882

Bolt-Rod
(Superseded to 651033A)

$

$

Not available

29

Tecumseh 34031

Lifter, Valve
(Superseded to 34031B)

$60.99

$

Usually ships in 3-12 days

0

30

Tecumseh 35381

Camshaft (Mechanical Compression Release)

$86.99

$

Usually ships in 3-12 days

0

35

Tecumseh 33273A

Extension-Housing, Blower

$7.49

$

Usually ships in 3-12 days

0

36

Tecumseh 30063

Screw

$1.99

$

In Stock, Qty 20+

0

37

Tecumseh 650128

Screw

$5.49

$

Usually ships in 3-12 days

0

38

Tecumseh 31356

Pump, Oil

$12.99

$

Usually ships in 3-12 days

0

39

Tecumseh 35317

Gasket, Mounting Flange

$4.99

$

In Stock, only 1 left!

0

40

Tecumseh 35760

Flange Assy., Mounting (Incl. Ref.#41, 41A, 42, 43 & 45)
(Superseded to 35711A)

$

$

Not available

41

Tecumseh 31927

Plug, Drain

$1.99

$

Usually ships in 3-12 days

0

41A

Tecumseh 28483

Plug, Oil drain

$1.99

$

Usually ships in 3-12 days

0

41B

Elbow, 90 Degrees (Can be purchased locally)

$

$

Not available

42

Tecumseh 35319

Seal-Oil

$4.99

$

In Stock, only 2 left!

0

43

Tecumseh 30668

Shaft, Governor

$1.99

$

Usually ships in 3-12 days

0

44

Tecumseh 31707A

Spacer, Governor Gear (Incl. Ref. #45)

$1.99

$

In Stock, only 2 left!

0

45

Tecumseh 30590A

Washer-Flat

$1.99

$

In Stock, Qty 7

0

46

Tecumseh 35378

Gear Assy., Governor (Incl. Ref. #45)

$3.99

$

Usually ships in 3-12 days

0

47

Tecumseh 29193

Ring-Retaining

$1.99

$

In Stock, only 4 left!

0

48

Tecumseh 30588A

Spool-Governor

$1.99

$

In Stock, only 4 left!

0

49

Tecumseh 650833

Screw (1/4-20x1-3/16)

$1.99

$

Usually ships in 3-12 days

0

53

Tecumseh 27878A

Valve, Exhaust (Std.) (Incl. Ref. #58)

$23.99

$

Usually ships in 3-12 days

0

53

Tecumseh 27880A

Valve, Exhaust (1/32" oversize) (Incl. Ref. #58)

$

$

Not available

54

Tecumseh 34035

Valve, Intake (Std.) (Incl. Ref. #58)

$15.99

$

In Stock, only 1 left!

0

54

Tecumseh 34036

Valve, Intake (1/32" oversize) (Incl. Ref. #58)

$

$

Not available

55

Tecumseh 27882

Cap-Spring, Valve

$1.99

$

In Stock, only 4 left!

0

56

Tecumseh 34689

Seal-Intake Valve
(Superseded to 35862)

$9.49

$

Usually ships in 3-12 days

0

57

Tecumseh 27881

Spring-Valve

$3.99

$

In Stock, only 2 left!

0

58

Tecumseh 32581

Keeper-Spring, Valve

$6.49

$

In Stock, Qty 10

0

59

Tecumseh 34041A

Gasket-Cylinder Head
(Superseded to 34923A)

$7.99

$

Usually ships in 3-12 days

0

60

Tecumseh 34030

Head Cylinder
(Superseded to 34030B)

$

$

Not available

61

Tecumseh 34251

Plug, Spark (Champion RCJ-8)
(Superseded to 33636)

$5.49

$

In Stock, Qty 13

0

63

Tecumseh 650694A

Screw (5/16-18 X 2)

$3.49

$

In Stock, Qty 20+

0

64

Tecumseh 650690

Washer-Belleville
(Superseded to 730324)

$9.99

$

Usually ships in 3-12 days

0

65

Tecumseh 650691

Washer-Flat

$1.99

$

Usually ships in 3-12 days

0

66

Tecumseh 650788

Screw (5/16-18x3/4)

$1.99

$

In Stock, only 1 left!

0

67

Tecumseh 33272A

Cover-Cylinder Head
(Superseded to 33272D)

$7.49

$

Usually ships in 3-12 days

0

68

Tecumseh 650738

Screw (1/4-20 X 5/8)

$3.99

$

In Stock, only 1 left!

0

68A

Tecumseh 650802

Screw (1/2-20x5/8)

$1.99

$

In Stock, Qty 5

0

73

Tecumseh 27896A

Gasket-Cover, Valve

$1.49

$

In Stock, Qty 10

0

74

Tecumseh 28423

Body-Breather

$13.99

$

In Stock, only 1 left!

0

75

Tecumseh 28424

Element-Breather

$3.99

$

In Stock, only 3 left!

0

76

Tecumseh 28425

Cover-Valve

$7.49

$

In Stock, only 1 left!

0

77

Tecumseh 35350

Tube-Breather

$6.49

$

Usually ships in 3-12 days

0

78

Tecumseh 650128

Screw

$5.49

$

Usually ships in 3-12 days

0

79

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, only 3 left!

0

80

Toro 33263A

Gasket, Carburetor

$

$

Currently unavailable

81

Tecumseh 34926

Pipe, Intake

$37.99

$

Usually ships in 3-12 days

0

82

Tecumseh 27915A

Gasket-Pipe, Intake

$5.99

$

In Stock, Qty 20+

0

83

Tecumseh 30088A

Screw (1/4-28x1)

$1.99

$

In Stock, only 2 left!

0

84

Tecumseh 650378

Screw (T-30, 5/16-18x1-3/32)

$1.99

$

In Stock, only 3 left!

0

85

Tecumseh 33261

Bracket, Intake Pipe

$3.99

$

Usually ships in 3-12 days

0

86

Tecumseh 650738

Screw (1/4-20 X 5/8)

$3.99

$

In Stock, only 1 left!

0

87

Tecumseh 33860

Link, Throttle

$1.99

$

In Stock, only 2 left!

0

88

Tecumseh 35201

Bracket Assy., Control

$

$

Not available

90

Tecumseh 30200

Screw (10-24 x 9/16)

$1.49

$

In Stock, Qty 10

0

91

Tecumseh 27793

Conduit

$1.99

$

In Stock, only 2 left!

0

92

Tecumseh 28942

Screw (10-32 x 3/8)

$1.49

$

In Stock, only 4 left!

0

96

Tecumseh 33997

Clip Oil Tube

$1.99

$

Usually ships in 3-12 days

0

96A

Tecumseh 35437

Clip, Oil fill tube

$1.99

$

In Stock, only 1 left!

0

97

Tecumseh 34094A

Housing, Blower
(Superseded to 34094C)

$

$

Not available

98

Tecumseh 29747B

Screw

$1.99

$

In Stock, Qty 9

0

101

Tecumseh 30705

Line-Fuel

$16.99

$

In Stock, Qty 7

0

102

Tecumseh 26460

Clamp-Line, Fuel

$1.49

$

In Stock, Qty 20+

0

110

Tecumseh 33629

Clutch Arm Assembly

$1.99

$

In Stock, Qty 19

0

111

Tecumseh 35408

Gasket, Blower Housing

$

$

Not available

113

Tecumseh 35574

Tube-Fill, Oil

$5.49

$

In Stock, only 1 left!

0

114

Tecumseh 35576

Dipstick, Oil

$7.49

$

In Stock, only 1 left!

0

115

Tecumseh 35499

O-Ring

$1.49

$

In Stock, only 3 left!

0

116

Tecumseh 33944A

Muffler Assy.

$

$

Not available

117

Tecumseh 31588

Plate-Locking

$4.99

$

In Stock, Qty 20+

0

118

Tecumseh 650729

Screw, Hex Hd.

$1.99

$

In Stock, Qty 5

0

120

Tecumseh 35538

Body, Air Cleaner
(Superseded to 35538B)

$15.99

$

In Stock, only 1 left!

0

120A

Tecumseh 650834

Screw, Fil. Hd.

$1.99

$

In Stock, only 3 left!

0

120B

Tecumseh 650887

Screw, Hex Washer Hd. Self-drill, Self-tap

$1.99

$

Usually ships in 3-12 days

0

121

Tecumseh 35403

Element, Air Cleaner (Incl. Ref. #121A)

$13.99

$

Usually ships in 3-12 days

0

121A

Tecumseh 650825

Nut & Lockwasher

$1.99

$

In Stock, only 1 left!

0

122

Tecumseh 35404

Filter, Poly Pre-cleaner

$3.99

$

Usually ships in 3-12 days

0

122A

Tecumseh 35405

Cover, Air Cleaner
(Superseded to 35961)

$

$

Not available

122B

Tecumseh 650886

Nut, Wing

$2.49

$

In Stock, only 2 left!

0

123B

Tecumseh 27275

51004 GIL ROTARY TI

$1.99

$

In Stock, Qty 7

0

124

Tecumseh 32589

Key-Flywheel

$1.49

$

In Stock, only 4 left!

0

125

Tecumseh 611093

Flywheel ASM

$

$

Not available

126

Tecumseh 650880

Washer-Belleville

$1.99

$

In Stock, only 3 left!

0

127

Tecumseh 650881

Nut-Flywheel

$1.99

$

Usually ships in 3-12 days

0

128A

Tecumseh 34113

Plug, Screen

$3.99

$

Usually ships in 3-12 days

0

129B

Tecumseh 35411

Screen, Starter
(Superseded to 35792)

$5.49

$

Usually ships in 3-12 days

0

130

Pop Rivet (Can be purchased locally)

$

$

Not available

133

Tecumseh 650872

Stud
(Superseded to 651024)

$3.99

$

In Stock, only 2 left!

0

134

Tecumseh 35135

Solid State ASM
(Superseded to 35135B)

$62.99

$

Usually ships in 3-12 days

0

135

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 2 left!

0

136

Tecumseh 650814

Screw
(Superseded to 651007)

$1.99

$

In Stock, only 4 left!

0

138

Tecumseh 650873

Screw (1/4-20 x 3/4)

$1.99

$

Usually ships in 3-12 days

0

139

Tecumseh 611113

Coil Assy., Alternator (3 AMP D.C.) (Incl. Ref. #140, 141 & 142)

$130.99

$

Usually ships in 3-12 days

0

140

Tecumseh 610935

Diode
(Superseded to 611161)

$17.99

$

Usually ships in 3-12 days

0

141

Tecumseh 610921

Connector Body

$1.99

$

Usually ships in 3-12 days

0

142

Tecumseh 610922

Terminal-Female

$

$

Not available

154

Tecumseh 30063

Screw

$1.99

$

In Stock, Qty 20+

0

155

Tecumseh 34346

Decal-Instruction
(Superseded to 36261)

$

$

Not available

155B

Tecumseh 34387

Decal, Instruction

$2.49

$

In Stock, only 1 left!

0

157

Tecumseh 632238

Carburetor (Incl. Ref. #80)
(Superseded to 632991)

$151.99

$

In Stock, only 1 left!

0

159

Tecumseh 33605

Pin
(Superseded to 36680)

$249.99

$

Usually ships in 3-12 days

0

160

Tecumseh 33279G

Gasket Set (Incl. items marked )
(Superseded to 33279L)

$

$

Not available
