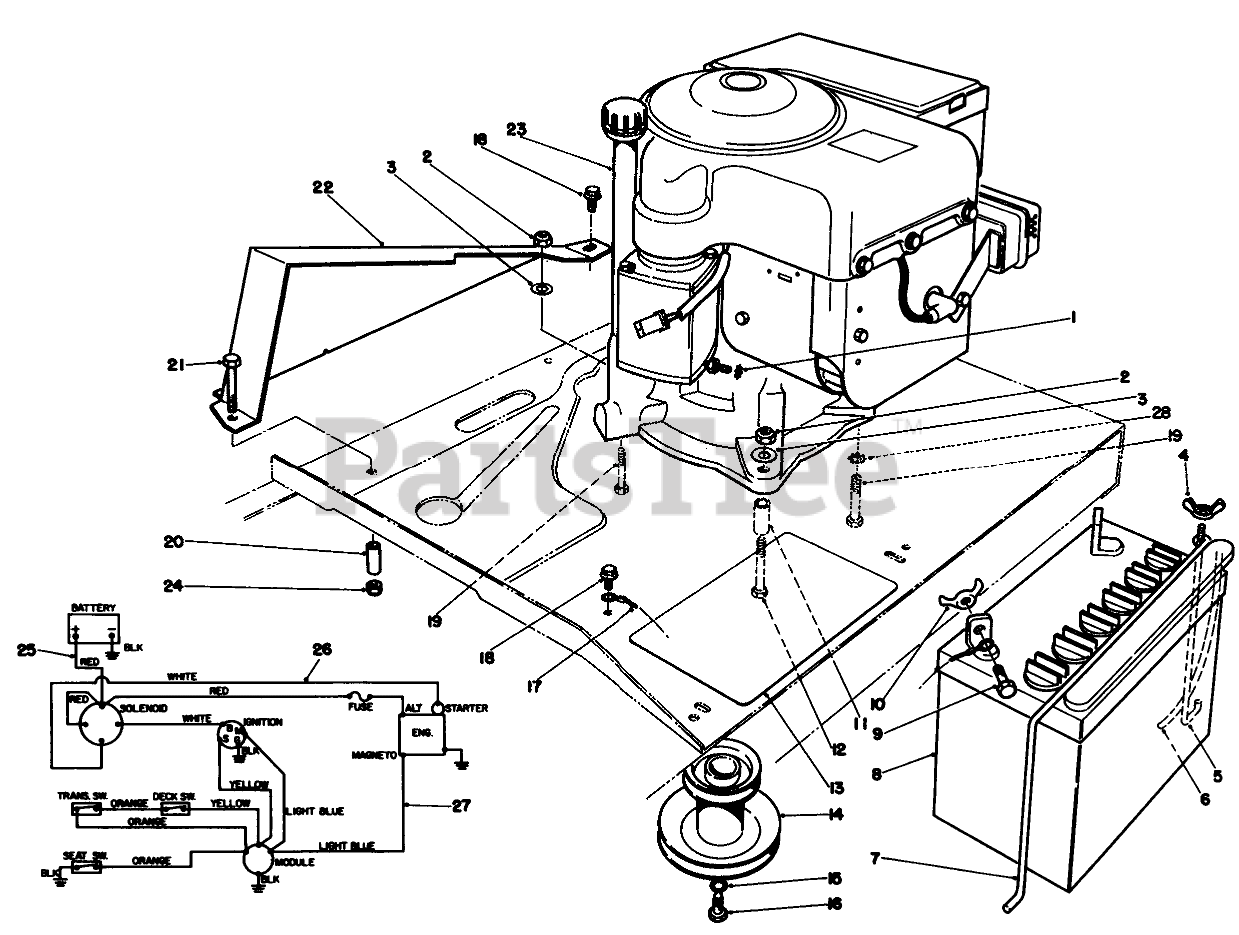

56128 (8-25) - Toro Rear-Engine Riding Mower (SN: 009000001 - 009999999) (1989) ENGINE ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

Usually ships in 3-6 days

0

2

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 32103-14

NUT-WING SPECL

$15.99

$

In Stock, only 1 left!

0

5

Toro 56-7720

POST-BATTERY
(Superseded to 100-6435)

$19.99

$

Usually ships in 3-6 days

0

6

Toro 56-2540

TUBE-BATT DRAIN/80-2600

$4.49

$

In Stock, only 1 left!

0

7

Toro 56-2550

BATTERY HOLDOWN

$

$

Not available

8

Toro 56-7700

Battery
(Superseded to 105-1692)

$

$

Not available

9

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 17

0

11

Toro 26-2610

PIVOT SPACER

$

$

Not available

12

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

13

Toro 62-4300

PAD-SKID, ANTI

$19.99

$

Usually ships in 3-6 days

0

14

Toro 67-0890

Pulley-Engine
(Superseded to 98-0712)

$148.99

$

Usually ships in 3-6 days

0

15

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

16

Toro 3211-4

SCREW-HH

$1.49

$

In Stock, only 4 left!

0

17

Toro 7-7630

ENG-GROUND WIRE ASM

$23.99

$

Usually ships in 3-6 days

0

18

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

19

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

20

Toro 67-0920

GUIDE-BELT

$15.99

$

Usually ships in 3-6 days

0

21

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

22

Toro 67-0961

GUIDE-CHAIN

$

$

Not available

23

Engine Assembly (Tecumseh TVXL 195-150229)

$

$

Not available

24

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

25

Toro 67-1170

WIRE ASM - BATT TO SOL

$

$

Not available

26

Toro 67-1160

WIRE ASSEMBLY

$

$

Not available

27

Toro 67-1180

WIRE HARNESS

$

$

Not available

28

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0
