56127 (7-25) - Toro Rear-Engine Riding Mower (SN: 009000001 - 009999999) (1989) REAR AXLE ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

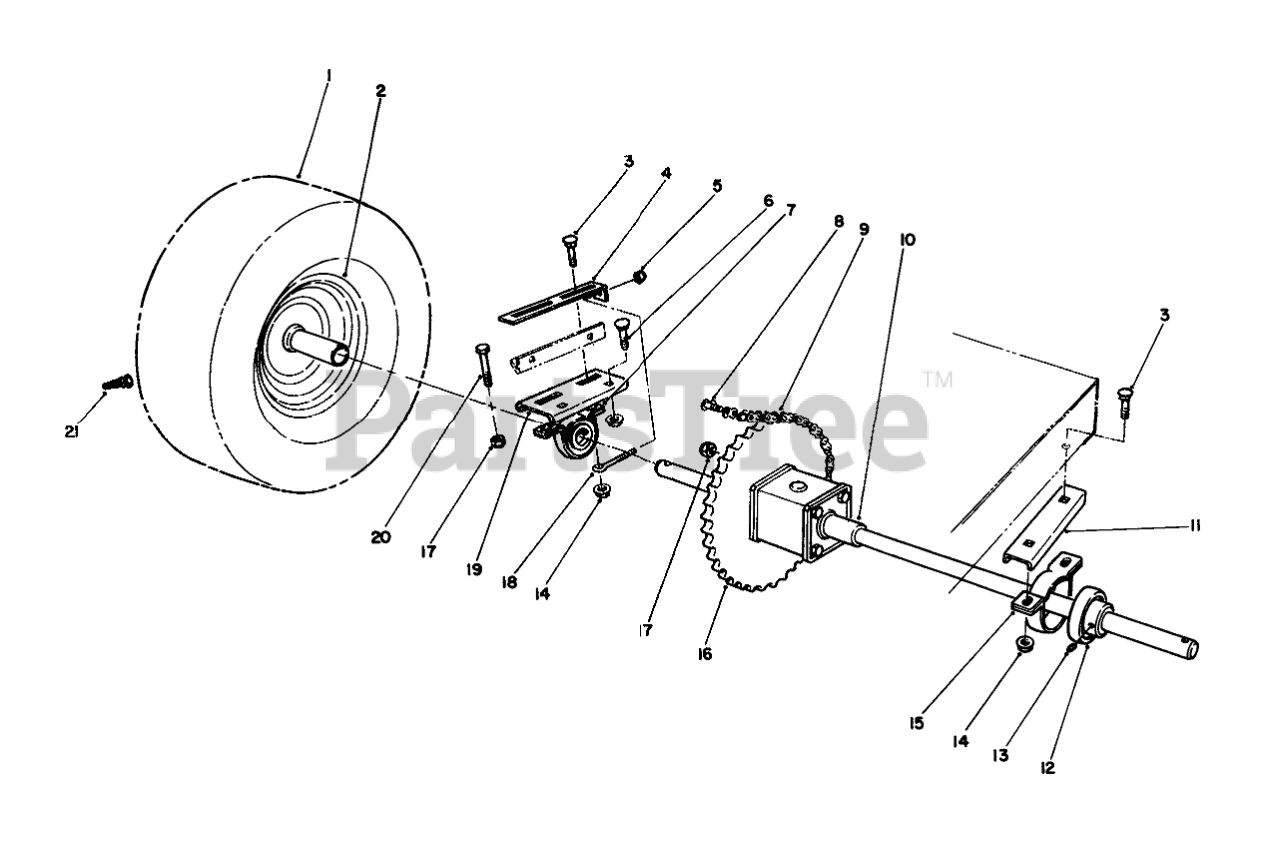

REAR AXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 231-115

TIRE,PNEU.13X5.00X6

$96.99

$

Usually ships in 3-6 days

0

2

Toro 44-9760

WHEEL-REAR

$444.99

$

Usually ships in 3-6 days

0

3

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

4

Toro 61-9990

PLATE-ADJUSTING

$

$

Not available

5

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

6

Toro 3231-30

SCREW-CARR

$4.99

$

In Stock, only 1 left!

0

7

Toro 47-1480

RTNR-PILLOW BLK

$64.99

$

Usually ships in 3-6 days

0

8

Toro 2710-11

LINK-CHAIN

$6.49

$

In Stock, only 1 left!

0

9

Toro 67-0910

Chain (Incl. Ref. #8)

$

$

Not available

10

Toro 56-9960

DIFFERENTIAL

$

$

Not available

11

Toro 66-6630

Support L.H.
(Superseded to 66-6630-03)

$

$

Not available

12

Toro 47-1490

Bearing (Incl. Ref. #13)

$82.99

$

Usually ships in 3-6 days

0

13

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 3 left!

0

14

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

16

Toro 56-9890

45 T SPROCKET

$

$

Not available

17

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 61-9980

SCREW-ADJUSTING

$9.49

$

In Stock, only 1 left!

0

19

Toro 66-6620

Support R.H.
(Superseded to 66-6620-03)

$

$

Not available

20

Toro 46-2510

Bolt
(Superseded to 46-2511)

$

$

Not available

21

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 14

0

Toro 11-0410

TIRE CHAINS

$

$

Not available
