Toro 56127 (7-25) - Toro Rear-Engine Riding Mower (SN: 008000001 - 008999999) (1988) FRONT AXLE ASSEMBLY Parts Lookup with Diagrams

1

Toro 61-9780

CAP-HUB

$7.99

$

In Stock, Qty 20+

2

Toro 28-2480

WASHER-PLAIN

$5.49

$

In Stock, Qty 20+

3

Toro 231-116

TIRE,PNEU.11X4.00X5

$

Not available 

4

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

5

Toro 217-80

RIM

$229.99

$

Usually ships in 3-6 days

6

Toro 32151-48

E-RING

$1.99

$

In Stock, Qty 13

7

Toro 27-9080

BEARING-FLANGE

$3.99

$

In Stock, Qty 6

8

Toro 3296-20

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

9

Toro 67-0990

Axle-Front

(Superseded to 67-0990-01) 

$

Not available 

11

Toro 67-0880

TIE ROD ASM

$96.99

$

In Stock, only 2 left!

12

Toro 67-0810

Spindle-L.H.

(Superseded to 67-0810-03) 

$60.99

$

In Stock, only 1 left!

13

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

14

Toro 3296-25

NUT-LOCK, NI

$1.99

$

In Stock, only 2 left!

15

Toro 67-0800

Spindle-R.H.

(Superseded to 67-0800-03) 

$

Not available 

16

Toro 251-210

Bearing

(Superseded to 110513) 

$21.99

$

In Stock, Qty 17

17

Toro 232-27

STEM-VALVE

(Superseded to 5108) 

$6.99

$

In Stock, Qty 9

18

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 16

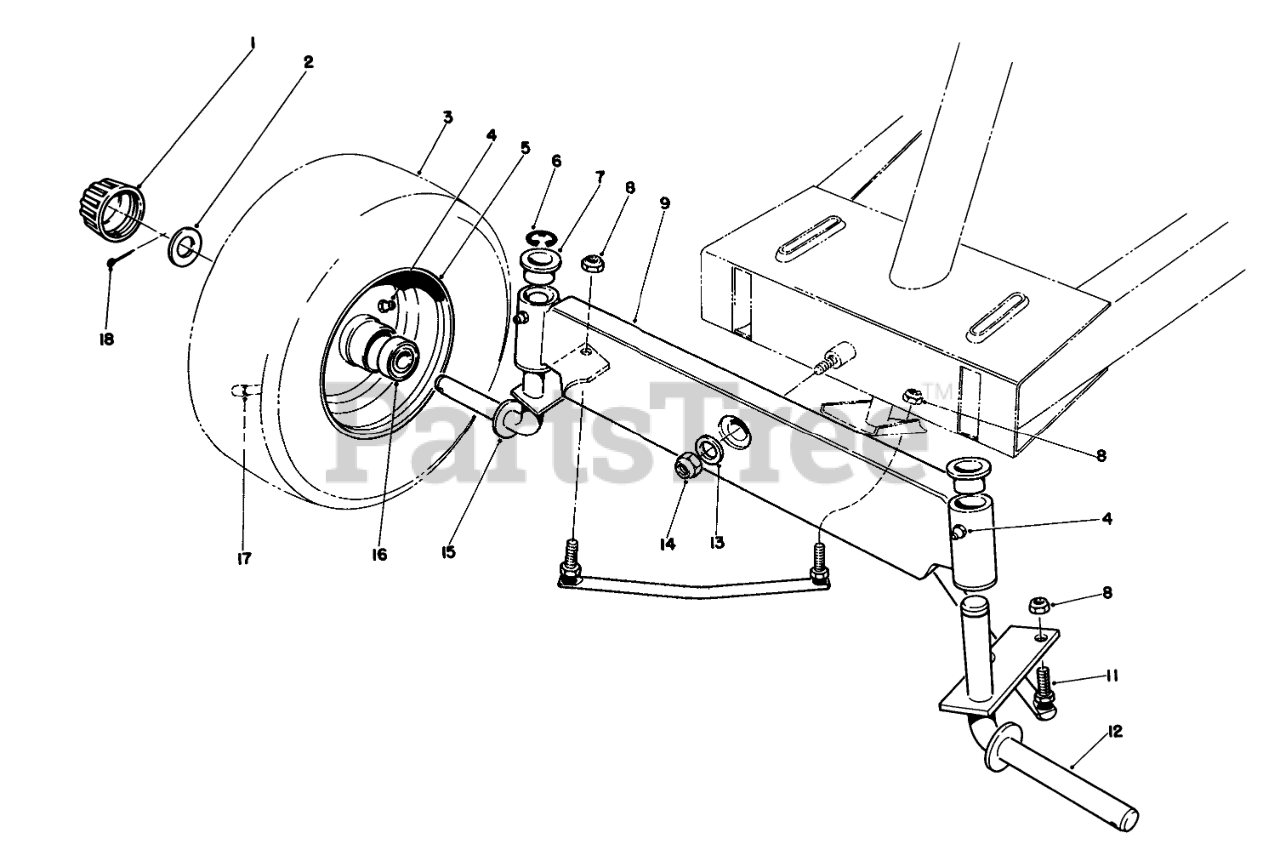

56127 (7-25) - Toro Rear-Engine Riding Mower (SN: 008000001 - 008999999) (1988) FRONT AXLE ASSEMBLY Parts Diagram

FRONT AXLE ASSEMBLY Parts Diagram

Toro 61-9780

Toro 28-2480

Toro 231-116

Toro 302-5

Toro 217-80

Toro 32151-48

Toro 27-9080

Toro 3296-20

Toro 67-0990

Toro 67-0880

Toro 67-0810

Toro 3256-26

Toro 3296-25

Toro 67-0800

Toro 251-210

Toro 232-27

Toro 3272-12
