56125 (7-25) - Toro Rear-Engine Riding Mower (SN: 007000001 - 007999999) (1987) TECUMSEH ENGINE MODEL V70-125260E Parts Diagram

Rear-Engine Riding Mower

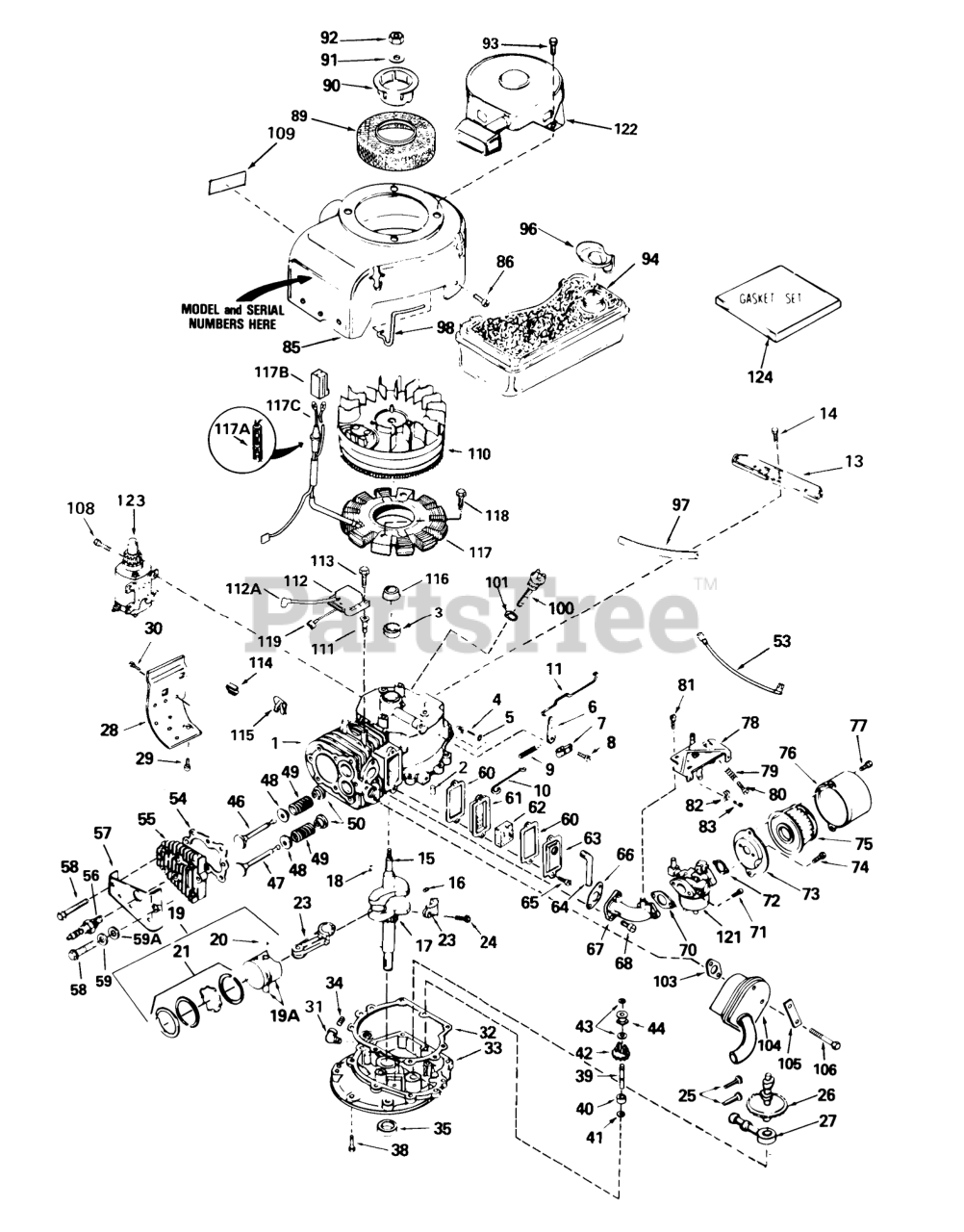

TECUMSEH ENGINE MODEL V70-125260E Parts Diagram

  • Title

1

Tecumseh 34172A

Cylinder Assembly (Incl. #2, 3, 100 & 101)

$223.99

$

Usually ships in 3-12 days

0

2

Tecumseh 27652

Pin-Dowel

$2.49

$

Usually ships in 3-12 days

0

3

Tecumseh 32630

Oil Seal

$8.49

$

Usually ships in 3-12 days

0

4

Tecumseh 30669

Rod-Governor (Incl. #5)

$7.49

$

In Stock, only 1 left!

0

5

Tecumseh 28277

Washer-Flat

$1.99

$

In Stock, only 4 left!

0

6

Tecumseh 31357

Lever-Governor

$1.99

$

In Stock, only 1 left!

0

7

Tecumseh 31335

Clamp-Lever, Governor

$1.99

$

In Stock, only 2 left!

0

8

Tecumseh 650548

Screw
(Superseded to 651018)

$1.99

$

In Stock, Qty 8

0

9

Tecumseh 31361

Spring Governor

$1.99

$

In Stock, Qty 5

0

10

Tecumseh 32582

Link Governor Spring

$1.99

$

In Stock, only 4 left!

0

11

Tecumseh 31823

Link Governor

$1.99

$

In Stock, only 4 left!

0

13

Tecumseh 34105

Bracket-Blower Housing

$19.99

$

Usually ships in 3-12 days

0

14

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

15

Tecumseh 35220

Crankshaft Assembly (Incl. #16 & 17)

$142.99

$

Usually ships in 3-12 days

0

16

Tecumseh 29783

Pin, Groove

$1.99

$

Usually ships in 3-12 days

0

17

Tecumseh 27884

Gear-Crankshaft

$11.99

$

In Stock, only 1 left!

0

18

Tecumseh 32589

Key-Flywheel

$1.49

$

In Stock, only 4 left!

0

19

Tecumseh 34517

Piston-Pin & Ring Assembly (Std.) (Incl. #19A, 20 & 21)

$

$

Not available

19

Tecumseh 34518

Piston-Pin & Ring Assembly (.010 oversize) (Incl. #19A, 20 & 21)

$

$

Not available

19

Tecumseh 34519

Piston-Pin & Ring Assembly (.020 oversize) (Incl. #19A, 20 & 21)

$

$

Not available

19A

Tecumseh 32592B

Piston & Pin Assembly (Std.) (Incl. #20)

$52.99

$

In Stock, only 1 left!

0

19A

Tecumseh 32593B

Piston & Pin Assembly (.010 oversize) (Incl. #20)

$57.99

$

In Stock, only 1 left!

0

19A

Tecumseh 32594B

Piston & Pin Assembly (.020 oversize) (Incl. #20)

$61.99

$

Usually ships in 3-12 days

0

20

Tecumseh 27888

Ring-Retaining, Piston Pin

$1.99

$

Usually ships in 3-12 days

0

21

Tecumseh 32595

"O"Ring

$

$

Not available

21

Tecumseh 32596

Ring Set (.010" OS)

$

$

Not available

21

Tecumseh 32597

Ring Set (.020" OS)

$

$

Not available

23

Tecumseh 32591C

Rod Assembly-Connecting (Incl. #24)

$

$

Not available

24

Tecumseh 650662C

Bolt-Connecting Rod

$3.99

$

Usually ships in 3-12 days

0

25

Tecumseh 34034

Lifter-Valve
(Superseded to 34034A)

$10.99

$

In Stock, only 3 left!

0

26

Tecumseh 32114

Screw

$92.99

$

Usually ships in 3-12 days

0

27

Tecumseh 31356

Pump, Oil

$12.99

$

Usually ships in 3-12 days

0

28

Tecumseh 30622A

Extension-Blower Hsng.

$

$

Not available

29

Tecumseh 650128

Screw

$5.49

$

Usually ships in 3-12 days

0

30

Tecumseh 30688

Screw
(Superseded to 30063)

$1.99

$

In Stock, Qty 20+

0

31

Street Elbow (90 degrees) (Can be purchased locally)

$

$

Not available

32

Tecumseh 30684

Gasket-Cover, Cylinder

Note: Indicates parts Included in Gasket Set. Ref. No 124

$4.49

$

In Stock, Qty 6

0

33

Tecumseh 31471C

Flange Assembly-Mounting (Incl. #34, 35, 39 & 41)
(Superseded to 31471D)

$158.99

$

In Stock, only 1 left!

0

34

Tecumseh 27642

Plug-Drain, Oil (SQH 1/4-18)

$1.99

$

In Stock, only 2 left!

0

35

Tecumseh 27897

Seal-Oil

$8.49

$

In Stock, Qty 17

0

38

Tecumseh 650488

Screw (1/4-20 x 1-1/4)

$1.99

$

Usually ships in 3-12 days

0

39

Tecumseh 30668

Shaft, Governor

$1.99

$

Usually ships in 3-12 days

0

40

Tecumseh 31707A

Spacer Assembly-Governor (Incl. #41)

$1.99

$

In Stock, only 2 left!

0

41

Tecumseh 30590A

Washer-Flat

$1.99

$

In Stock, Qty 7

0

42

Tecumseh 30591

Gear Assembly-Governor (Incl. #41)

$13.99

$

In Stock, only 1 left!

0

43

Tecumseh 29193

Ring-Retaining

$1.99

$

In Stock, only 4 left!

0

44

Tecumseh 30588A

Spool-Governor

$1.99

$

In Stock, only 4 left!

0

46

Tecumseh 32783

Valve-Intake (Std.) (Incl. #50)

$16.99

$

In Stock, only 2 left!

0

46

Tecumseh 32784

Valve-Intake (1/32" oversize) (Incl. #50)

$69.99

$

Usually ships in 3-12 days

0

47

Tecumseh 27878A

Valve-Exhaust (Std.) (Incl. #50)

$23.99

$

Usually ships in 3-12 days

0

47

Tecumseh 27880A

Valve-Exhaust (1/32" oversize) (Incl. #50)

$

$

Not available

48

Tecumseh 27882

Cap-Spring, Valve

$1.99

$

In Stock, only 4 left!

0

49

Tecumseh 27881

Spring-Valve

$3.99

$

In Stock, only 2 left!

0

50

Tecumseh 32581

Keeper-Spring, Valve

$6.49

$

In Stock, Qty 10

0

53

Tecumseh 35232

Wire-Ground

$1.49

$

Usually ships in 3-12 days

0

54

Tecumseh 32631

Gasket-Cylinder Head
(Superseded to 32631A)

Note: Indicates parts Included in Gasket Set. Ref. No 124

$11.99

$

In Stock, Qty 9

0

55

Tecumseh 30938A

Head-Cylinder (Incl. 3 of #58)
(Superseded to 36446)

$

$

Not available

56

Tecumseh 34251

Plug, Spark (Champion RCJ-8)
(Superseded to 33636)

$5.49

$

In Stock, Qty 13

0

57

Tecumseh 30939A

Cover-Head, Cylinder
(Superseded to 30939B)

$

$

Not available

58

Tecumseh 650697A

Screw (5/16-18 X 2-1/2)

$1.99

$

In Stock, only 3 left!

0

59

Tecumseh 650690

Washer-Belleville
(Superseded to 730324)

$9.99

$

Usually ships in 3-12 days

0

59A

Tecumseh 650691

Washer-Flat

$1.99

$

Usually ships in 3-12 days

0

60

Tecumseh 27896

Gasket-Breather
(Superseded to 27896A)

Note: Indicates parts Included in Gasket Set. Ref. No 124

$1.49

$

In Stock, Qty 10

0

61

Tecumseh 28423

Body-Breather

$13.99

$

In Stock, only 1 left!

0

62

Tecumseh 28424

Element-Breather

$3.99

$

In Stock, only 3 left!

0

63

Tecumseh 28425

Cover-Valve

$7.49

$

In Stock, only 1 left!

0

64

Tecumseh 27627

Tube-Breather
(Superseded to 35350)

$6.49

$

Usually ships in 3-12 days

0

65

Tecumseh 650128

Screw

$5.49

$

Usually ships in 3-12 days

0

66

Tecumseh 27915

Gasket-Intake
(Superseded to 27915A)

Note: Indicates parts included in Gasket Set. Ref. No. 124.

$5.99

$

In Stock, Qty 20+

0

67

Tecumseh 32632

Pipe-Intake

$26.99

$

Usually ships in 3-12 days

0

68

Tecumseh 650378

Screw (T-30, 5/16-18x1-3/32)

$1.99

$

In Stock, only 3 left!

0

70

Tecumseh 26756

Gasket

Note: Indicates parts included in Gasket Set. Ref. No. 124.

$2.99

$

In Stock, Qty 8

0

71

Tecumseh 650372

Screw-Hex Hd.
(Superseded to 650517)

$1.99

$

In Stock, only 1 left!

0

72

Tecumseh 27272

Gasket
(Superseded to 27272A)

Note: Indicates parts included in Gasket Set. Ref. No. 124.

$4.49

$

In Stock, Qty 20+

0

73

Tecumseh 31691

Bracket

$22.99

$

In Stock, only 1 left!

0

74

Tecumseh 28820

Screw (10-32 x 1/2)
(Superseded to 651081)

$4.49

$

In Stock, only 3 left!

0

75

Tecumseh 30727

Element

$7.49

$

In Stock, only 2 left!

0

76

Tecumseh 31715

Body-Air Cleaner

$21.99

$

In Stock, Qty 7

0

77

Tecumseh 650152

Screw

$2.49

$

In Stock, only 3 left!

0

78

Tecumseh 32181A

Control Assembly-Speed (Incl. #79 & 80)

$

$

Not available

79

Tecumseh 31342

Spring-Compression

$5.99

$

In Stock, only 1 left!

0

80

Tecumseh 650549

Screw
(Superseded to 651029)

$1.99

$

In Stock, only 2 left!

0

81

Tecumseh 30200

Screw (10-24 x 9/16)

$1.49

$

In Stock, Qty 10

0

82

Tecumseh 27793

Conduit

$1.99

$

In Stock, only 2 left!

0

83

Tecumseh 28942

Screw (10-32 x 3/8)

$1.49

$

In Stock, only 4 left!

0

85

Tecumseh 32629B

Housing-Blower

$103.99

$

Usually ships in 3-12 days

0

86

Tecumseh 29747B

Screw

$1.99

$

In Stock, Qty 9

0

89

Tecumseh 35009

Screen-Starter

$3.99

$

In Stock, only 1 left!

0

90

Tecumseh 32125

Cup-Starter
(Superseded to 37966)

$10.99

$

Usually ships in 3-12 days

0

91

Tecumseh 650815

Washer-Belleville

$1.99

$

In Stock, Qty 10

0

92

Tecumseh 8116

Nut

$1.99

$

In Stock, only 4 left!

0

93

Tecumseh 29716

Screw

$1.49

$

In Stock, Qty 6

0

94

Tecumseh 32926

Tank Assembly-Fuel
(Superseded to 32584)

$

$

Not available

96

Tecumseh 33548

Deflector-Fuel

$5.49

$

Usually ships in 3-12 days

0

97

Tecumseh 29774

Line-Fuel (8.62)

$34.99

$

In Stock, Qty 6

0

98

Tecumseh 33549

Clamp, Tank Holdown

$3.99

$

Usually ships in 3-12 days

0

100

Tecumseh 34165

Dipstick-Oil (Incl. #101)

$9.49

$

In Stock, only 2 left!

0

101

Tecumseh 29673

Gasket

Note: Indicates parts included in Gasket Set. Ref. No. 124.

$1.99

$

In Stock, only 3 left!

0

103

Tecumseh 27930

Gasket Exhaust
(Superseded to 35865)

Note: Indicates parts included in Gasket Set. Ref. No. 124.

$2.49

$

In Stock, only 2 left!

0

104

Tecumseh 391023

Muffler

$101.99

$

Usually ships in 3-12 days

0

105

Tecumseh 31588

Plate-Locking

$4.99

$

In Stock, Qty 20+

0

106

Tecumseh 650696

Screw Hex Hd.

$3.99

$

In Stock, only 2 left!

0

108

Tecumseh 30688

Screw
(Superseded to 30063)

$1.99

$

In Stock, Qty 20+

0

109

Tecumseh 34346

Decal-Instruction
(Superseded to 36261)

$

$

Not available

110

Tecumseh 611087

Flywheel (3 Amp, with Ring Gear)

$

$

Not available

111

Tecumseh 650872

Stud
(Superseded to 651024)

$3.99

$

In Stock, only 2 left!

0

112

Tecumseh 34443A

Solid State
(Superseded to 34443D)

$44.99

$

Usually ships in 3-12 days

0

112A

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 2 left!

0

113

Tecumseh 650814

Screw
(Superseded to 651007)

$1.99

$

In Stock, only 4 left!

0

114

Tecumseh 34246

Clip, Spring

$1.99

$

In Stock, only 1 left!

0

115

Tecumseh 27275

51004 GIL ROTARY TI

$1.99

$

In Stock, Qty 7

0

116

Tecumseh 35189

Spacer-Coil

$

$

Not available

117

Tecumseh 611096

Coil Assembly-3 Amp D.C. (Incl. #117A, 117B & 117C)
(Superseded to 611113)

$130.99

$

Usually ships in 3-12 days

0

117A

Tecumseh 610935

Diode
(Superseded to 611161)

$17.99

$

Usually ships in 3-12 days

0

117B

Tecumseh 610921

Connector Body

$1.99

$

Usually ships in 3-12 days

0

117C

Tecumseh 610922

Terminal-Female

$

$

Not available

118

Tecumseh 650873

Screw (1/4-20 x 3/4)

$1.99

$

Usually ships in 3-12 days

0

119

Tecumseh 33177

Terminal

$1.99

$

In Stock, only 3 left!

0

121

Tecumseh 631449

Carburetor (Incl. #70)

$

$

Not available

122

Tecumseh 590420A

tarter-Rewind

$68.99

$

In Stock, only 1 left!

0

123

Tecumseh 33606

Tine Shaft
(Superseded to 35765A)

$212.99

$

Usually ships in 3-12 days

0

124

Tecumseh 33239

Gasket Set
(Superseded to 33239A)

$35.99

$

Usually ships in 3-12 days

0
